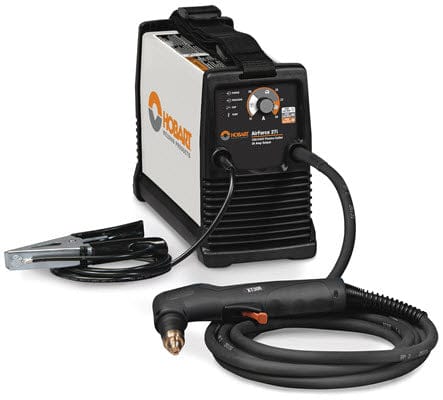

Hobart® AirForce™ 27i Plasma Cutter 500575
The completely redesigned Hobart® AirForce™ 27i produces up to 30 amps of cutting power and operates on either 120 volt or 240 input. It weighs only 22 pounds, yet cuts up to 5/8 inch mild steel. The AirForce 27i comes complete with MVP™ (multi-voltage plug) technology which allows you to run off of standard 120 volt OR 240 volt input power. Voltage changeover is simple and requires no tools.
The AirForce 27i features the ergonomically designed XT30R plasma torch that boasts more efficient cooling and longer plasma consumable life than previous models. The 27i requires compressed air delivery of at least 5.0 cfm @ 90 to 120 psi. It has a rated cutting capacity of 3/8 inch thick mild steel @ 60% duty cycle and a maximum cutting capacity on mild steel of 5/8 inch. Unit is compatible with engine-driven welders with at least 4 kW of generator power with a 240 volt receptacle.
Processes
Air Plasma Cutting
Applications
Sheet Metal
HVAC
Auto Body
Farm/Ranch
Plumbing
Features
Multi-Voltage Plug (MVP) - Allows you to connect to common 120 or 240 V power receptacles without the use of any tools - simply choose the plug that fits the receptacle.
XT30R torch - Designed for increased comfort with an ergonomic trigger safety, more efficient cooling and economical replacement cutting tips.
Wind Tunnel Technology™ - Prevents abrasive dust and particles from damaging internal components.
Fan-On-Demand™ - Cooling system operates only when needed reducing power consumption and contaminants drawn into the machine.
Power factor correction (PFC) circuitry - Draws up to 30% less amperage for the same cutting range as compared to the competition. PFC expands operators
work area via extension cord, while minimizing nuisance circuit breaker trips caused by voltage drops.
LVC™ line voltage compensation - Provides peak performance power under variable input voltage conditions (?15%) for steady and cleaner-ending cuts.
Internal gas/air filter and regulator - Controls amount of usage and flow of air or gas.
Starts without high frequency - Protects unit by not interfering with or damaging controls or computers.
Diagnostic lights - LED lights for quick troubleshooting of pressure, power and cup situations.
Postflow cooling circuit - Extends life of consumables and torch by cooling them with postflow air after trigger is released.
Automatic gouging consumable detection - Adjusts gas pressure to optimize performance, eliminating the need for a manual regulator.
Compatible with engine-driven welders - Complete cutting capability when powered by an engine-driven welder/generator with a 240 V receptacle of 4 kW or more.
Hobart 5/3/1 industrial warranty -
Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems and one year on guns (MIG, plasma and TIG torches).
Specs
Comes complete with
AirForce™ 27i plasma cutter
12 ft. (3.7 m) XT30R hand-held torch
12 ft. (3.7 m) work cable with clamp
10 ft. (3 m) power cord with 5-15P (120 V, 15 A) and 6-50P (240 V, 50 A)
MVP™ plugs
Easy-to-connect, built-in gas/air filter and regulator for extra protection
Extra consumables (2 tips, shield deflector, and electrode)
Cable management included
