Hobart Champion Elite 225 Welder 500580

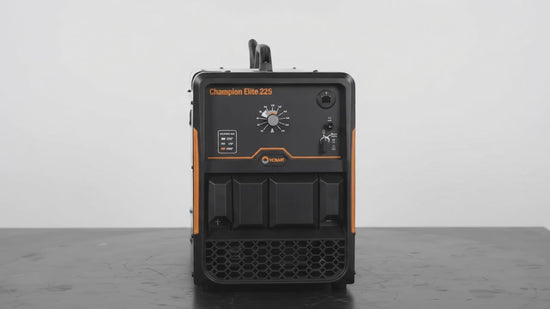

Hobart® Champion™ Elite 225 Welder 500580

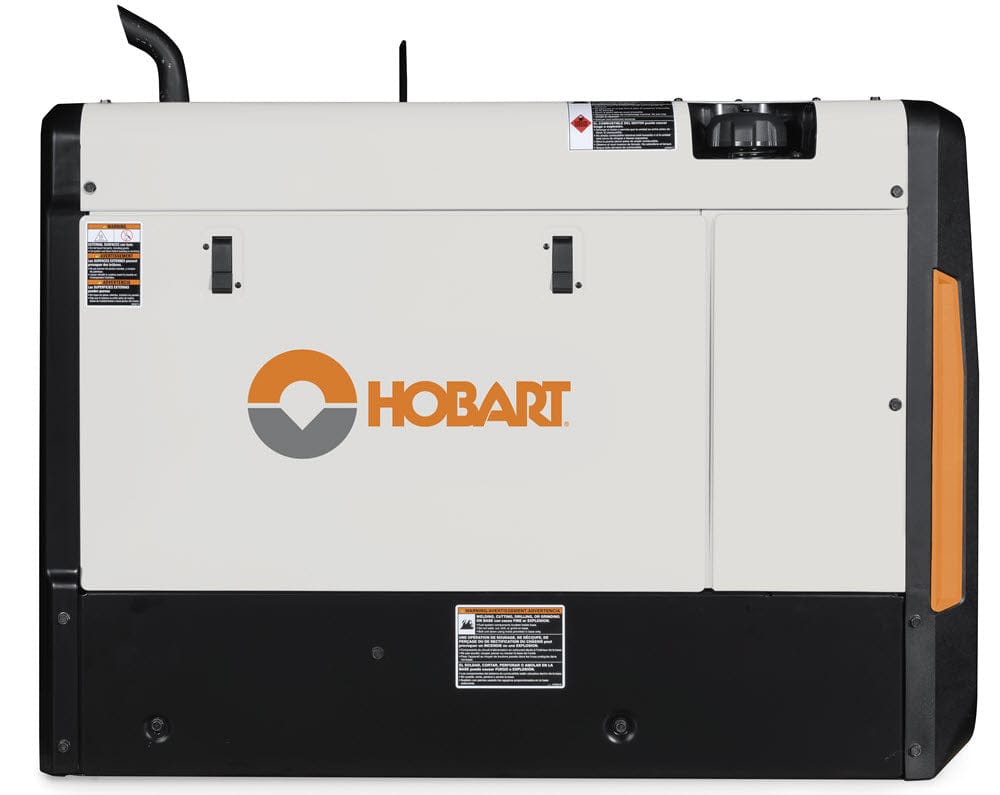

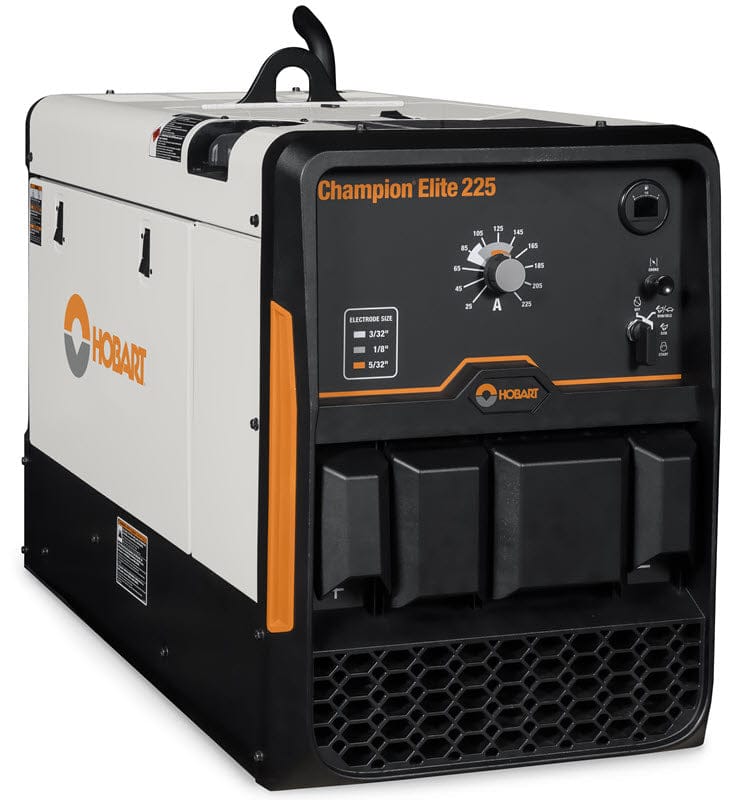

The Hobart® Champion® Elite 225 is a 225 amp engine-driven welder and 10,000 watt AC generator that is small enough and light enough to fit in the back of most UTVs. Compared to previous models, the inverter technology in the Hobart 225 Welder sheds 122 pounds off the overall unit weight and 3 inches off the overall unit length; making this the lightest and most compact Hobart Champion Elite ever. It still packs plenty of power, though.   The Hobart Champion Elite 225 produces 10,000 peak watts of AC generator power. Full 9,500 watts of continuous generator power for tools and lights are available at all times, even while welding at maximum output.  DC welding output up to 225 amps provides smooth power for stick welding. The Hobart Champion Elite can weld up to 1/4" steel in a single pass.

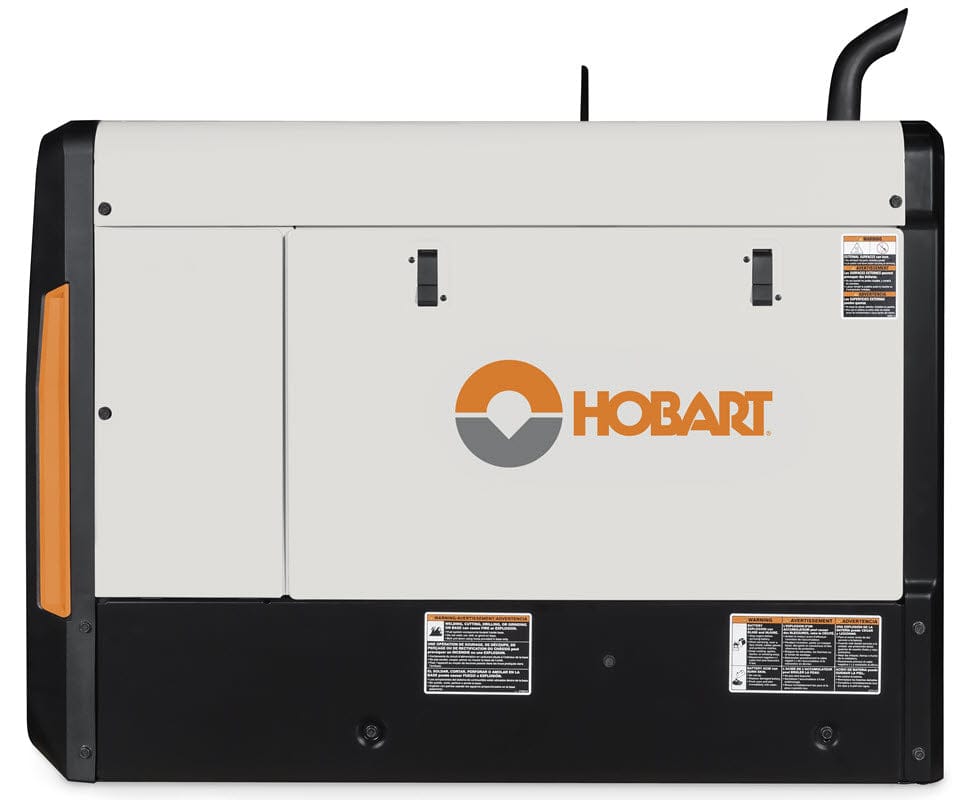

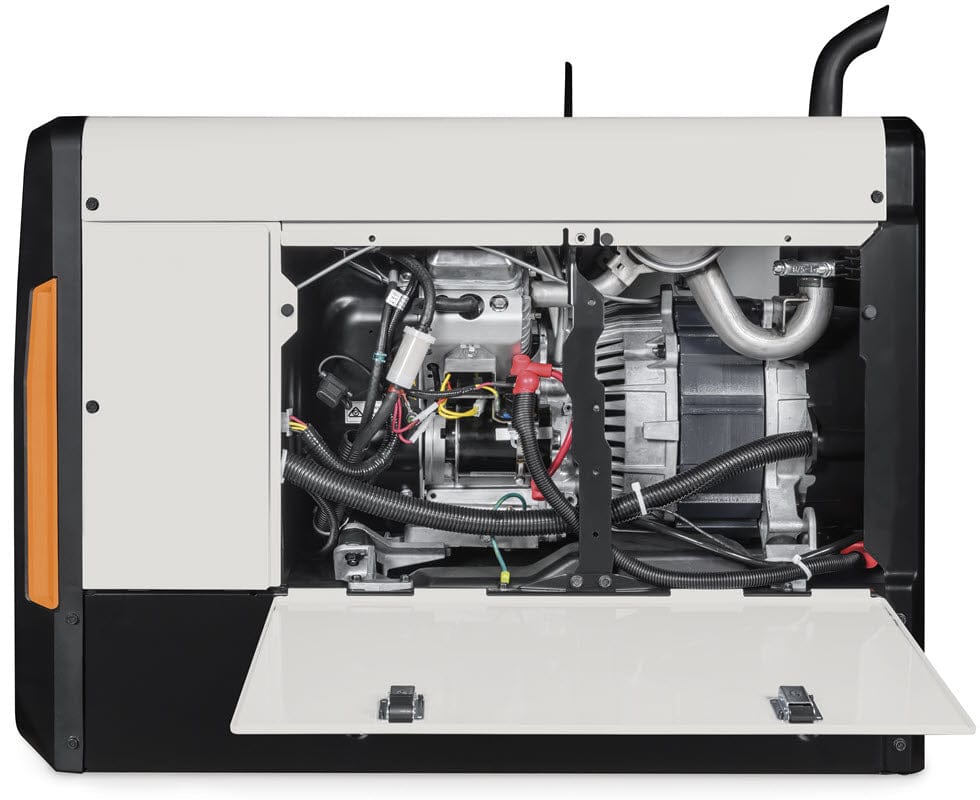

The Hobart 225 Welder features a rugged, fully enclosed case with convenient access panels on the top and both sides for easy maintenance.  A simplified single knob control makes setting welding output extremely easy.  Improved arc characteristics enhance arc starts, reduce weld spatter and produce better welds with all types of stick electrodes, including E6010.  A Briggs & Stratton® Vanguard® 23 HP V-Twin gasoline engine provides long-lasting, reliable power to the Champion Elite 225.



Processes

• DC Stick (SMAW) Welding
• 10,000 Watt AC Generator

  Applications
  Maintenance
  Construction
  Farm/Ranch
  Rental
  Home

  Features
• Welds 1/8 inch up to 1/4 inch mild steel in a single pass
• 225 amp DC stick welder
• Just over 3 ft long and weighing just 368 lbs., this unit will fit into most UTVs and take up less space in all pickup truck beds
• 100% duty cycle at 225 amps
• 10,000 watts peak, 9500 watts continuous AC generator power

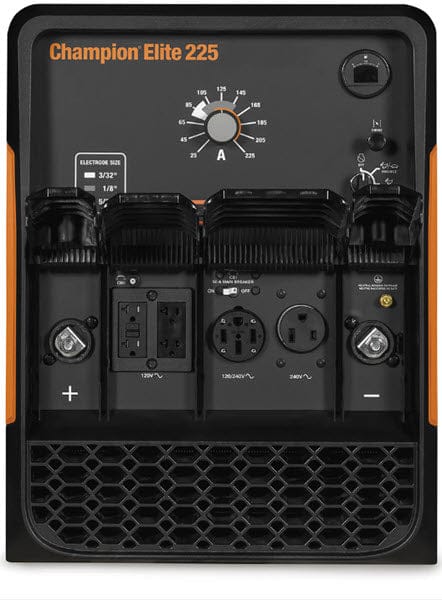

• Covered receptacle package that includes (1) 6- 50R 240V receptacle, (1) 14-50R 240V receptacle and (2) 115V 20A Duplex GFCI receptacles
• 11 gallon fuel tank for extended run time

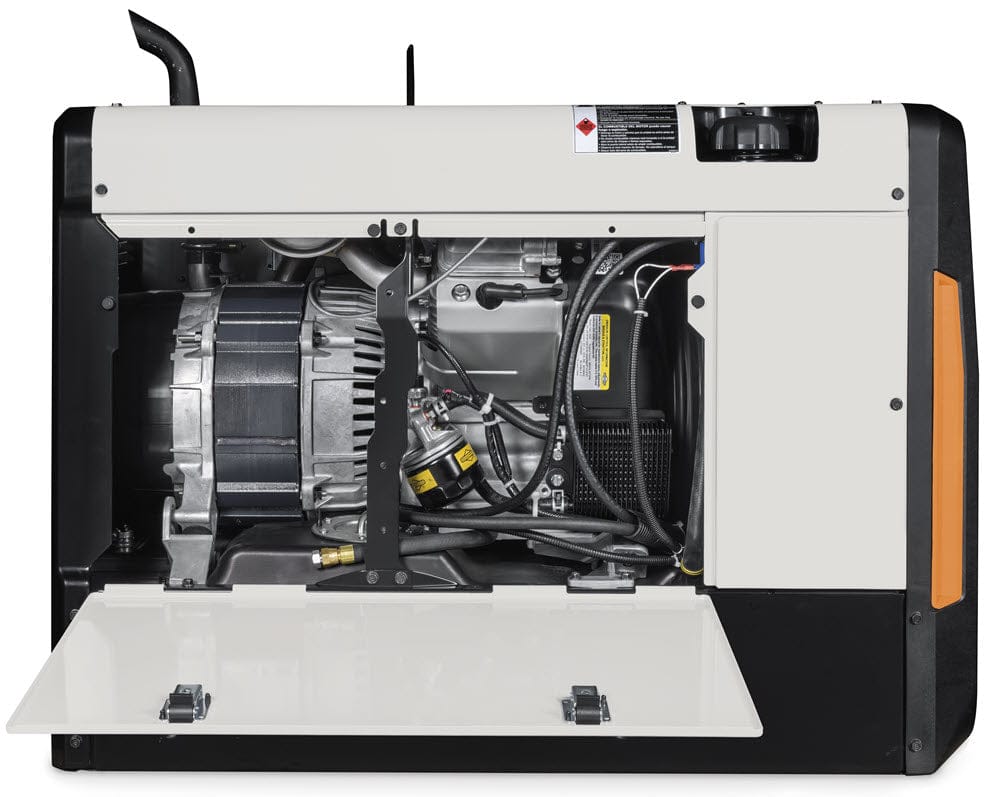

• 23 HP Briggs & Stratton® Vanguard® engine w/ twin cylinder, 4-cycle, overhead- valve
• "No tools" oil change and standard hour meter to help maintain routine scheduled oil servicing
• Auto-idle for greater fuel savings and reduced noise
• Single knob amperage adjustment
• Manufactured in USA

  Hobart Champion Elite 225 Specs
