Hobart Handler 210i MIG Welder 500588

Hobart Handler® 210i MIG Welder 500588

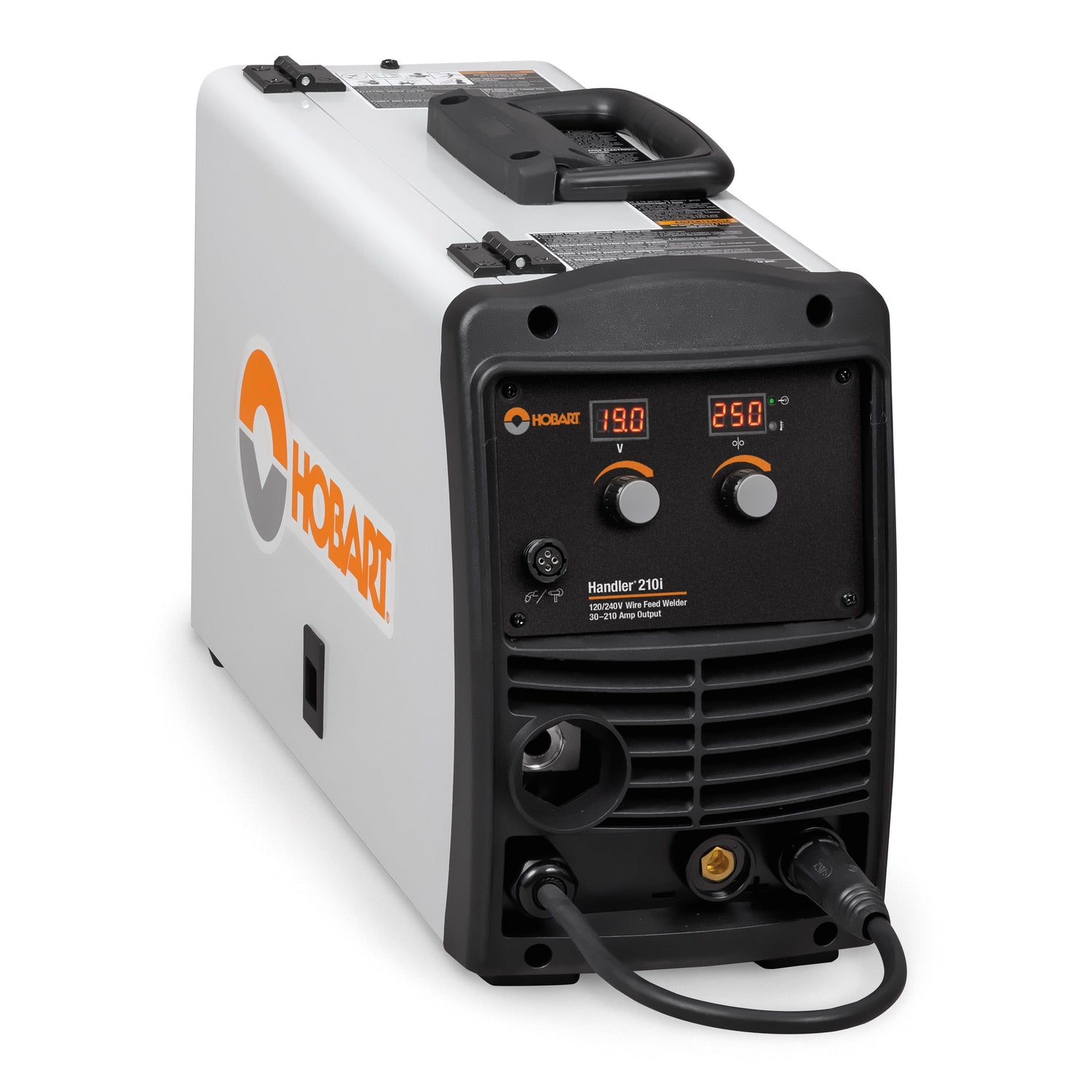

The Hobart® Handler® 210i is 210 amp MIG welder that operates on both 120-volt and 240-volt input power and weighs just 26 pounds. The Handler 210i is over 50 pounds lighter than its predecessor, the Handler 210 MVP™. It has powerful welding output to handle 3/8 in. thick mild steel and enough control for 24 gauge material. Changing input voltage from 240V to 120V input power is a simple as plugging in the included 120-volt input power adapter.

The Handler 210i's infinite voltage setting and infinite wire feed speed control make the unit easy to set, adjust and customize for different materials, thicknesses and wires. Direct-plug spool gun connection for a SpoolRunner™ 100 spool gun is ideal for welding with one pound spools of aluminum MIG welding wire. The SpoolRunner 100 can also be used with two pound spools of mild or stainless steel MIG wire.

The Hobart Handler® 210i MIG welder is recommended for running the following wires: mild or stainless steel .023-.035 in., flux cored .030-.045 in., aluminum .030-.035 in.



Processes

MIG (GMAW)

Flux Cored (FCAW) (gas and self-shielded)

Applications
Maintenance/repair
Auto body
Farm/ranch
Construction
Boat/marine
Metal art



Features

Weld as thin as 24 gauge up to 3/8 inch in a single pass
Broad output range of 30–210 amps. Easily run thicker materials with multiple passes. All while weighing only 26 pounds.

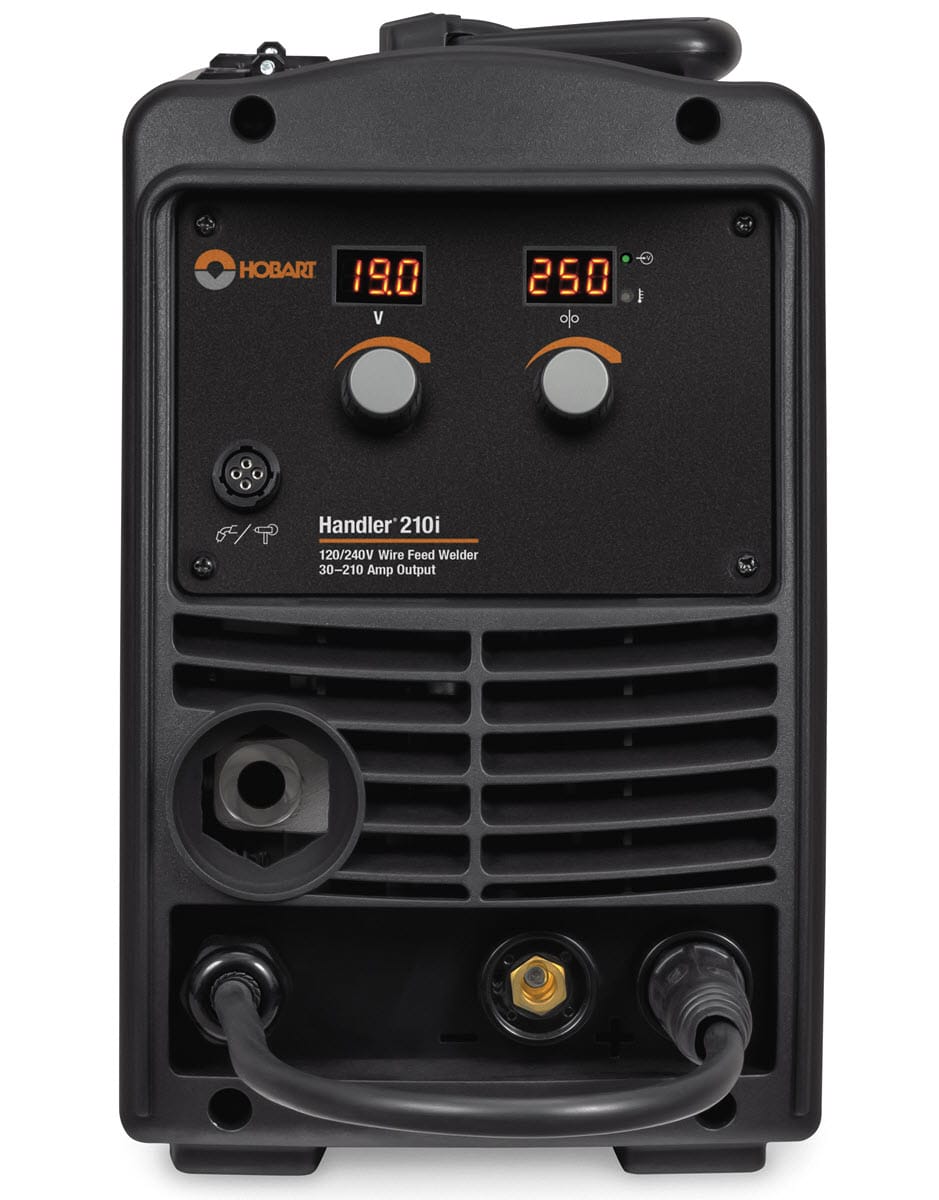

Easy-to-use interface with infinite wire speed and voltage control
Offers easier fine control of the output parameters for improved arc performance with less spatter, and better bead appearance with less clean up.

Spool gun ready
Spool guns enhance feedability and reduce “bird-nesting” associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner™ 100 spool gun.

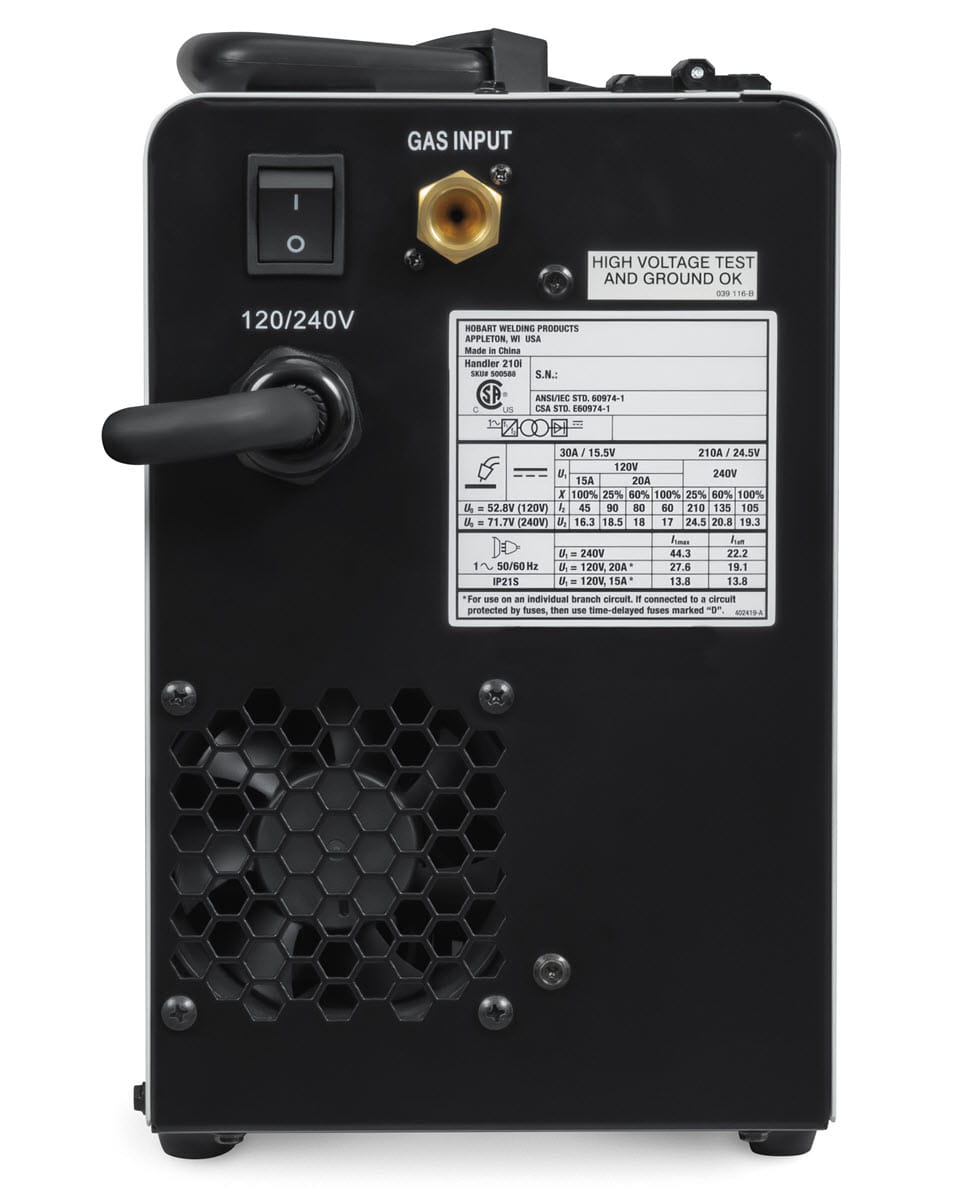

Dual-voltage
Allows connection to 120 or 240 V receptacles without tools.

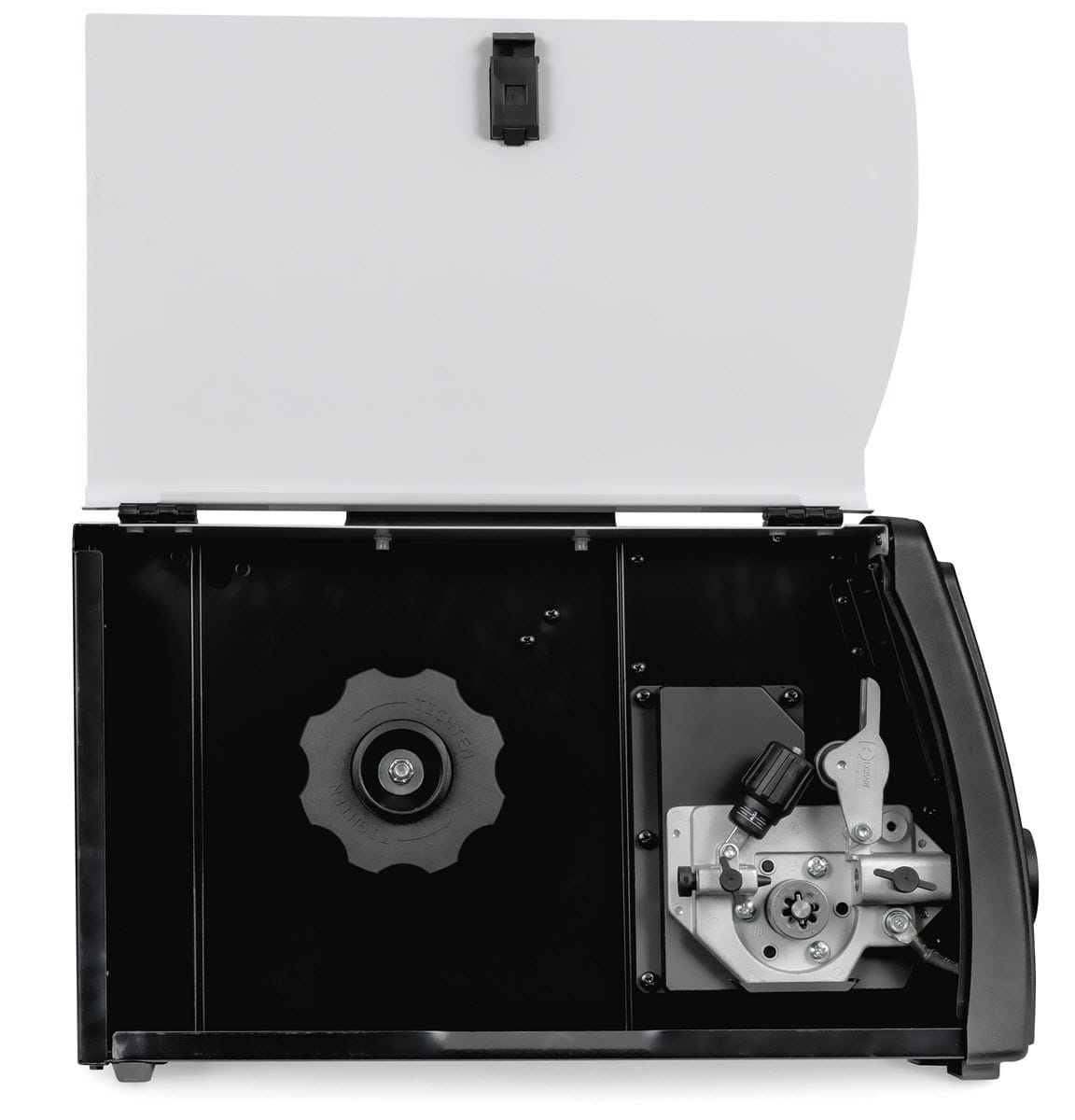

Spool hub assembly accommodates 4- or 8-inch spools
Offers you flexibility to use small or large spools of wire to better suit your welding needs.

Quick Select drive roll
Makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire.

Generator compatible
Will be able to operate and provide full output when powered by a generator with 9,500 watts (9.5 kW) continuous or higher output on 240 volts. Limited output will occur when used with smaller generators.

Hobart 5/3/1 industrial warranty
Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on MIG gun.

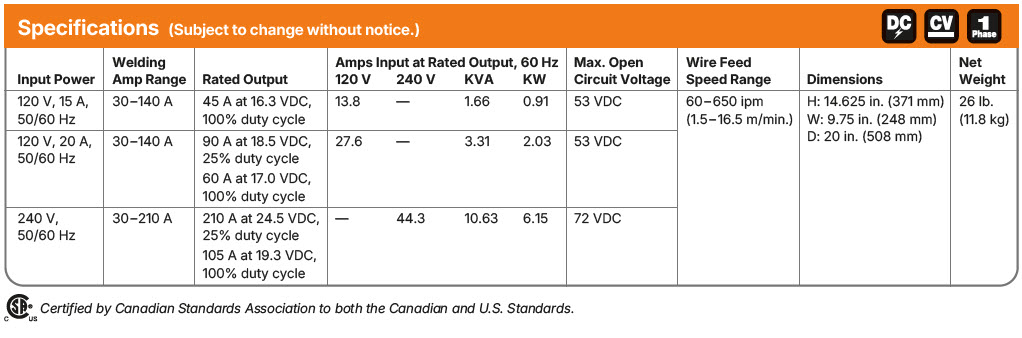

Specs

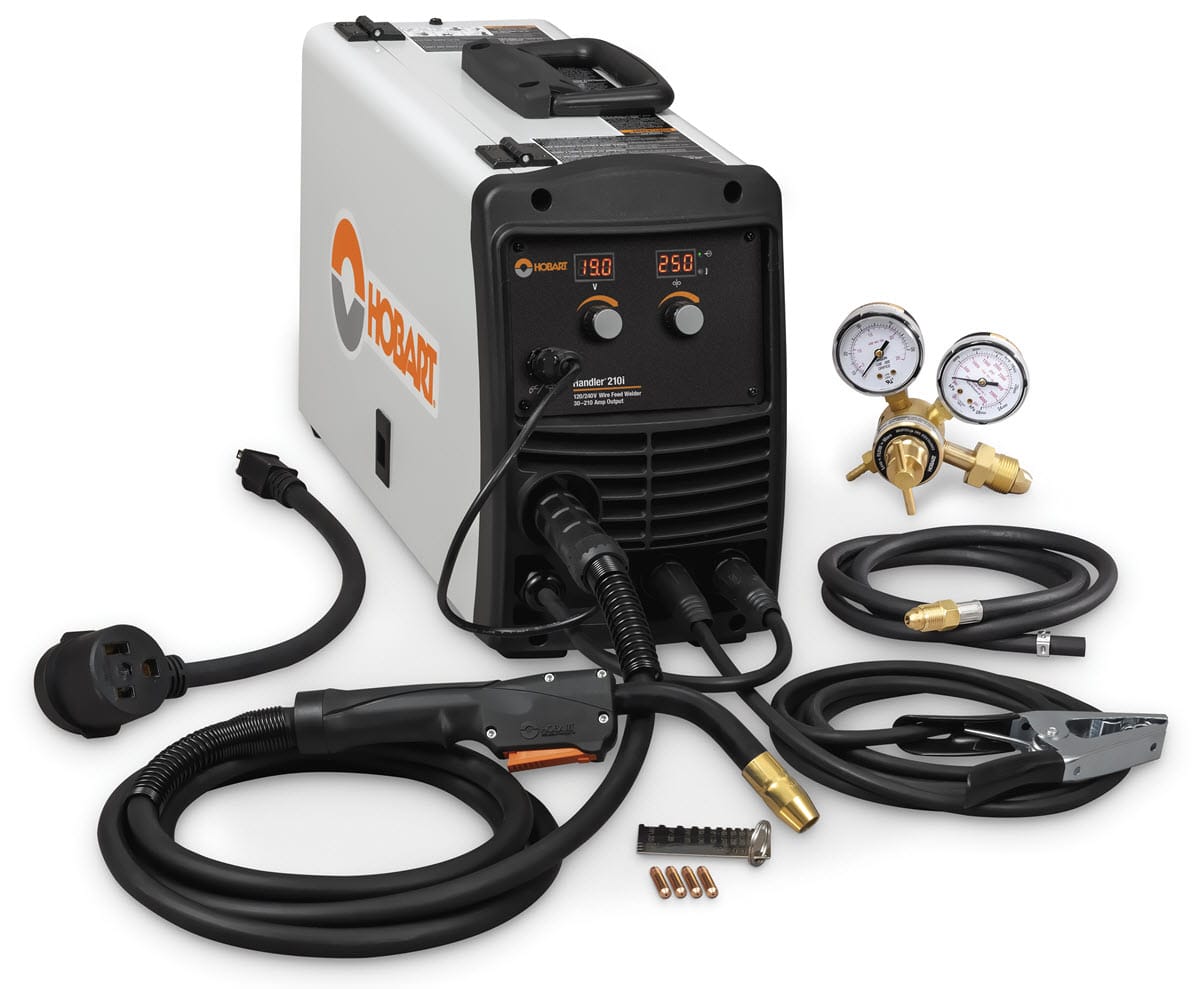

Comes complete with:

Hobart Handler® 210i MIG welding power source

10 ft. (3 m) HR-100 MIG gun with ergonomic, rubber-padded handle

10 ft. (3 m) work cable with clamp

Power cord with adapter for 120 V and 240 V

Built-in gas solenoid valve and dual-gauge regulator with gas hose

Extra .030 and .035 in. (0.8 and 0.9 mm) contact tips

Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire

Material thickness gauge
