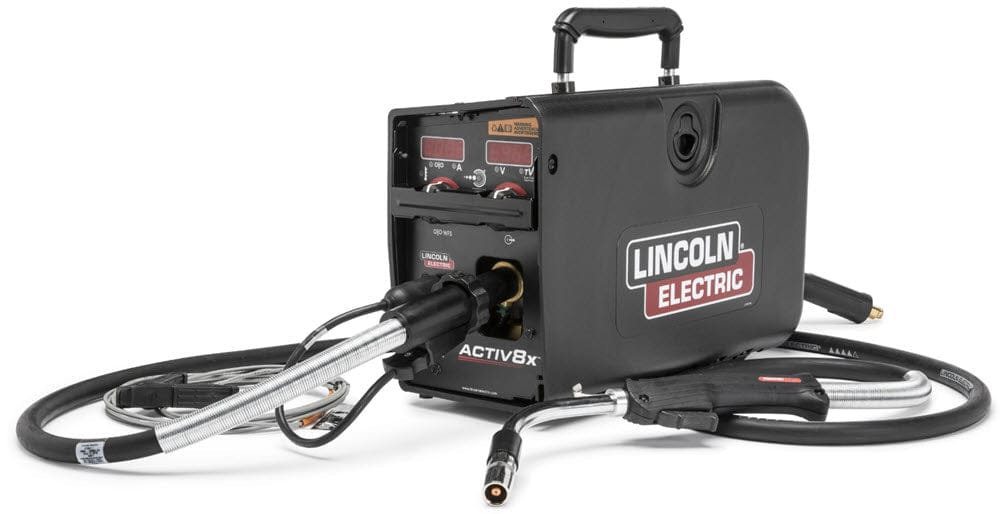

Lincoln® Activ8X® Wire Feeder & Magnum PRO Curve 300 One Pak® K3564-1

The Lincoln® Activ8X® Wire Feeder with TVT™ and Magnum® PRO Curve MIG Gun is a voltage sensing MIG wire feeder package that has full remote voltage and amperage control without the use of a remote-control cable. Built-in CrossLinc® technology allows the Activ8X to communicate directly with a CrossLinc® equipped Lincoln welder through the welding leads, eliminating the need for costly remote-control cables. CrossLinc® remote control distance is limited only by the length of your welding cable leads. CrossLinc® allows your MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote voltage AND amperage control capabilities at the site of the weld without using expensive remote-control cables. The Activ8X can also be used as a traditional voltage sensing feeder on welders not equipped with CrossLinc®

The Activ8X has a lightweight, compact design that makes it ideal for shipyards.  It comes standard with TVT™. True Voltage Technology compensates for voltage drops common with long welding cable runs. TVT automatically detects welding voltage variations and adjust on-the-fly, to provide a smooth consistent arc, even if you are far away from the welder itself. (Please note: your welder MUST be equipped with CrossLinc® to take advantage of TVT™). The Activ8X wire feeder has up to a 330 amp welding capacity. It features Lincoln's MAXTRAC® wire drive system to ensure smooth wire feeding and excellent electrical contact with your welding gun.



Processes

MIG (GMAW)

Flux Cored (FCAW)

Applications
Construction & Field Erection
General Fabrication
Heavy Equipment
Heavy Fabrication
Structural Fabrication

Features:

Compact Design
Lightest construction wire feeder on the market today.
Accepts up to 8 in. (203 mm) diameter wire spools.

CrossLinc® with TVT™ technology -
CrossLinc® uses the existing weld cable to communicate voltage control information between the feeder and Lincoln® CrossLinc® power source. This eliminates the need for a separate remote-control cable. TVT™ (True Voltage Technology) automatically compensates for voltage drops commonly associated with long welding cable runs.

Tachometer feedback
Ensures accurate wire feed speed

Trigger Interlock Switch
Provides operator comfort for long welds

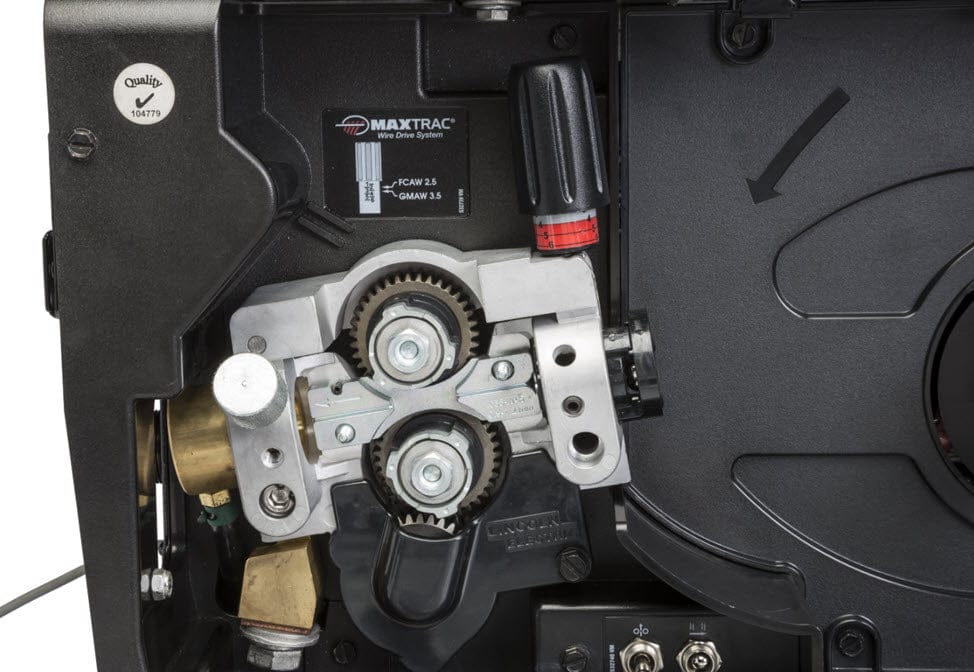

Maxtrac® Wire Drive System
Heavy-duty cast aluminum wire drive system provides reliable feeding and durability

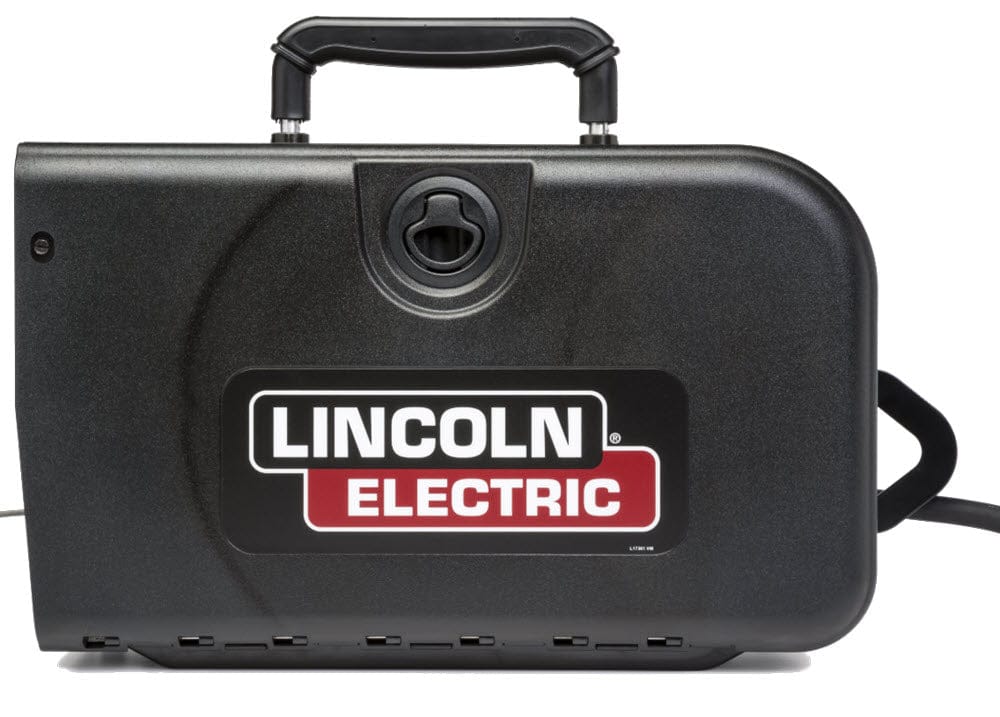

Replaceable and Flame Resistant Case
Protects internal components, easy to replace

Potted PC Boards
For moisture and corrosion protection

Split Wire Guide -
Reduces birdnesting and allows for easy cleaning no-fuss wire guide alignment

Bright digital meters
For easy viewing even in bright sunlight

Included Tweco® style male connector
Installed on input power cable.

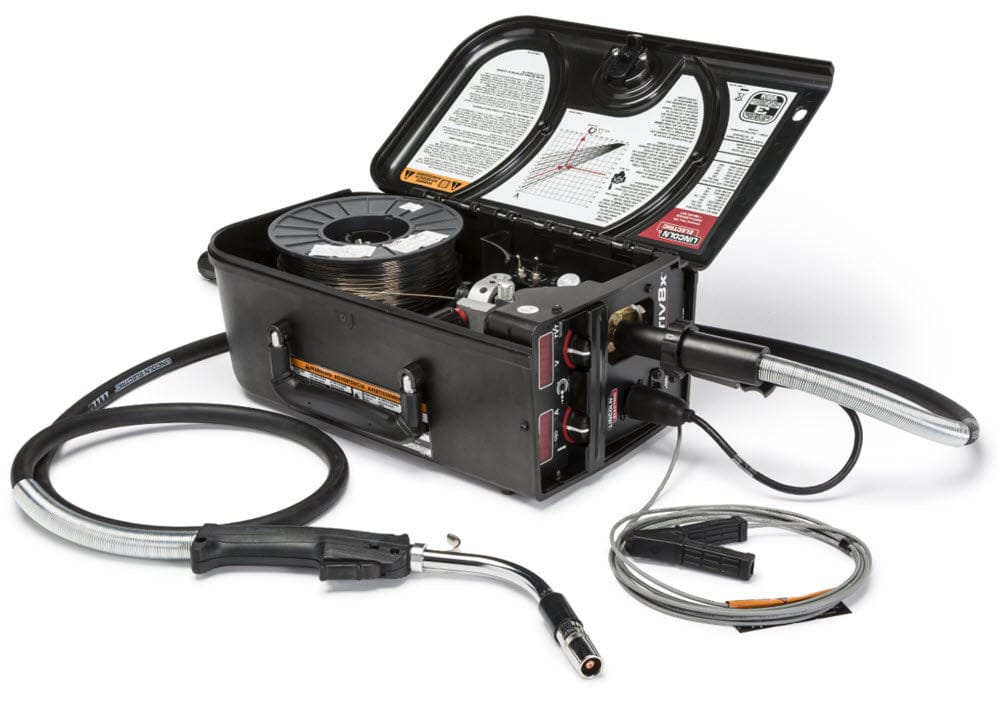

Comes Complete With

Activ8X® voltage sensing wire feeder with CrossLinc® and TVT™ technology

Magnum® PRO Curve 300 MIG welding gun with 1/16" dia. liner

.052 drive roll kit for cored wire KP1697-052C

Voltage sensing cable and clamp

Input power pigtail with male Tweco®-style cable connector
