Lincoln® Aspect® 230 AC/DC TIG Air Cooled One-Pak® K4341-1

The Lincoln® Aspect® 230 AC/DC Air Cooled One-Pak® is a complete 230 amp advanced AC/DC TIG welding package that comes with everything you need EXCEPT shielding gas and filler metal. The Aspect 230 operates on both single and 3-phase, 120-460 volt input power. PowerConnect® Technology allows the welder to automatically detect any input power type - regardless of voltage or phase. It then optimizes the Aspect 230 to run on the supplied input electricity without any manual linking or switching. The Aspect 230 can operate on any jobsite power, anywhere in the world. Its lightweight inverter design also makes it extremely portable.

With an output range of 2 to 230 amps, the Aspect 230 TIG welds materials up to 1/4" thick. When welding thinner material, built-in TIG pulse reduces arc heat input, minimizing distortion. Advanced AC wave form controls and AC Auto Balance® technology help produce superior results on aluminum. The Aspect 230 AC/DC TIG welder is outstanding for critical TIG welds on aluminum, steel, stainless steel and other alloys. It provides up to 230 amps of TIG welding output and is capable of welding up to 5/32" diameter stick electrodes, including Fleetweld® 5P+, with OPTIONAL electrode holder and cable.

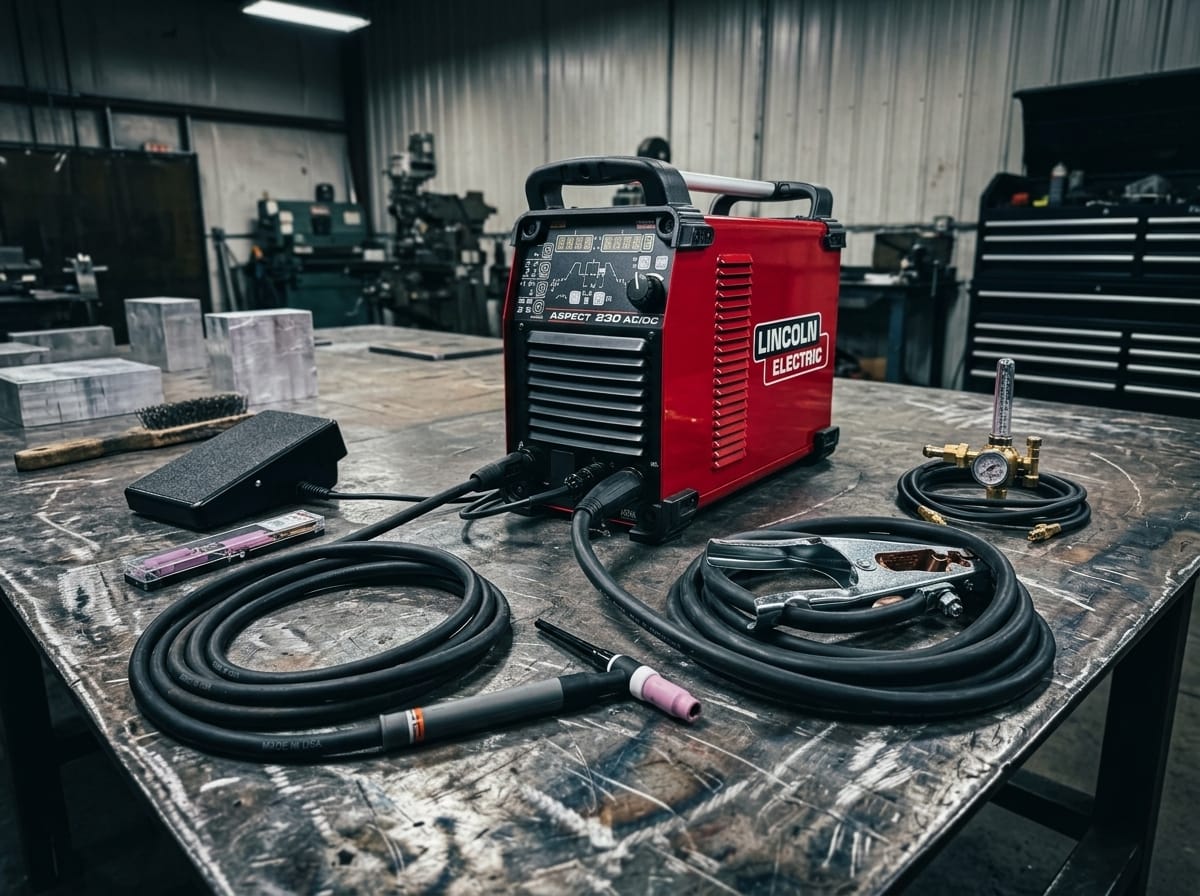

The Aspect 230 AC/DC Air Cooled One-Pak comes complete with, PTA-26F TIG torch with 25 ft. leads, TIG torch adapter kit, Foot Amptrol™ with 25 ft. leads, TIG torch parts kit, shielding gas regulator with hose, and work cable with ground clamp.

  • AC/DC Pulsed TIG (GTAW-P)
  • Stick (GMAW)

    Advanced Motorsports
    Production Fabrication

  • Exceptional Arc Response and Stability
    With up to 230 amps of maximum output, you can TIG weld up to 1/4 in. (6.4 mm)
    Maximize productivity and spend more time welding with a rated 35% duty cycle at 230 amps
    Portable, lightweight and easy to transport
    IP23 rated for harsh environments
  • Advanced Aluminum Controls
    AC Auto Balance technology, pulse, frequency, and additional wave forms
  • AC Auto Balance® Technology
    Automatically provides optimal mix of cleaning and penetration when welding aluminum
  • Intellistart™ Technology
    Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials
  • PowerConnect® Technology
    Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase
  • Memory Capability
    The memory function allows saving up to 9 specific welding procedures
  • Fan-As-Needed
    The cooling fan operates only when needed to assure proper cooling of the machine
  • Green Mode
    Ability to put machine in standby mode after 10 minutes of inactivity to reduce power consumption
  • Cooler Power Supply
    Built-in Cooler Power Supply comes standard on all models

    Comes complete with
  • Aspect® 230 AC/DC TIG Welder
  • 10 ft. (3m) input power cord
  • TIG Torch Adapter Kit for PTA-26 Torches | K1622-3
  • Foot Amptrol™ - 25 ft. (7.6m) (6 pin) | K870
  • Parts Kit for PTA-26 and PTW-18 TIG Torches | KP509
  • Weld Cable Package - Work Lead - TM & GC500 Ground Clamp (2/0, 350A, 60%) - 15 ft (15.3 m) | K1803-3
  • PTA-26F TIG Torch Torch (25 ft 1pc) | K1783-10
  • Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit | 3100211
