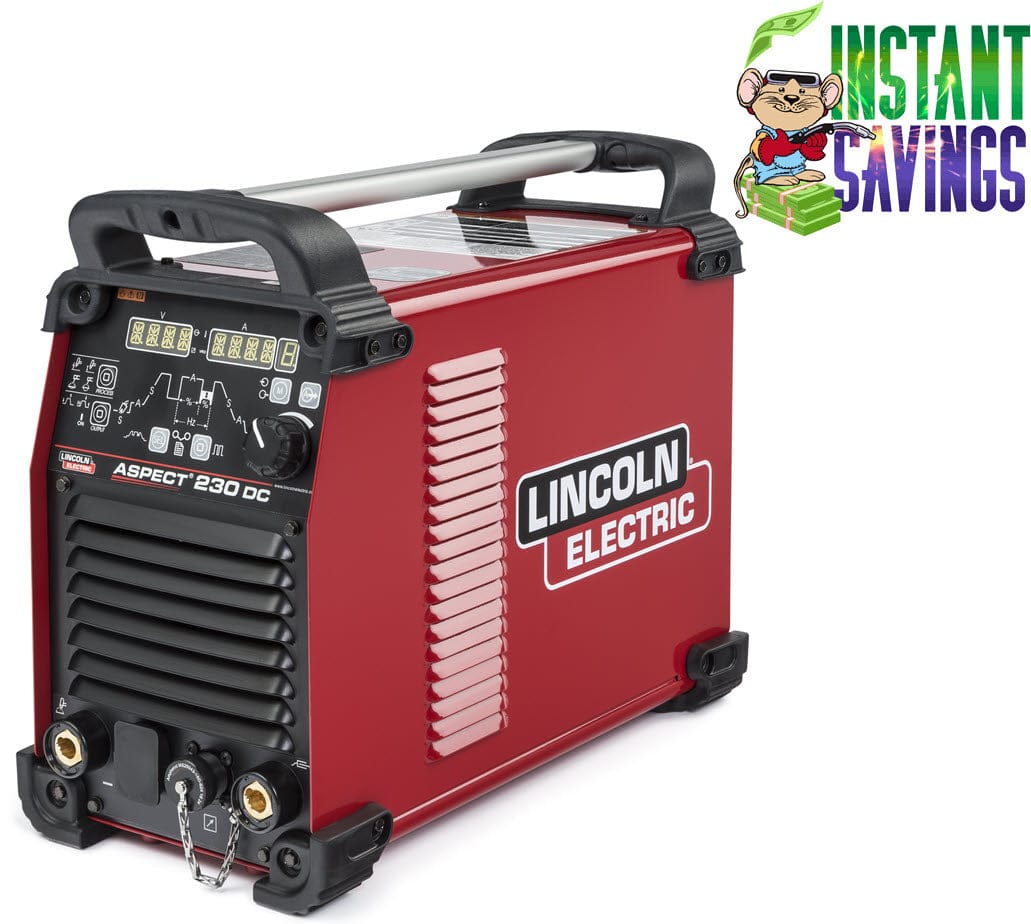

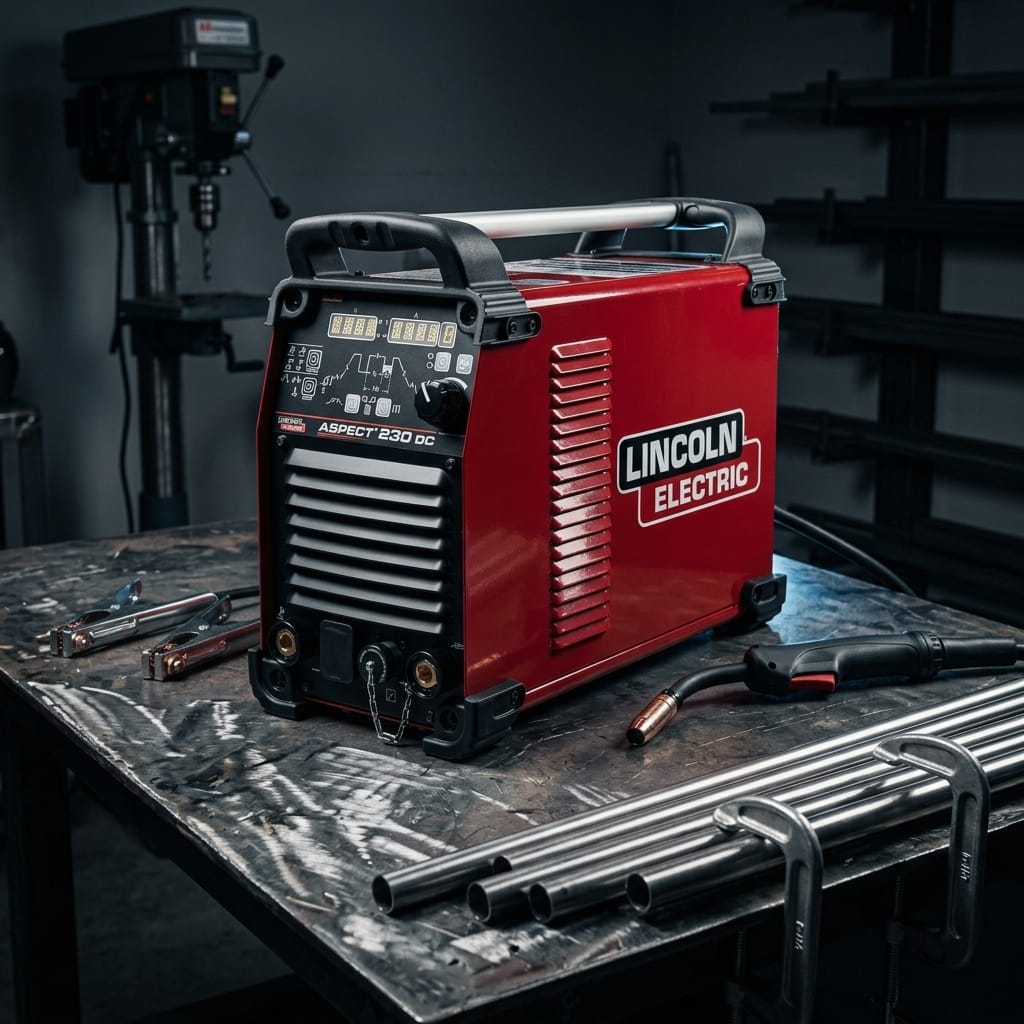

Lincoln Aspect 230 DC TIG Welder K4346-1

Lincoln® Aspect® 230 DC TIG Welder K4346-1

The Lincoln® Aspect® 230 DC is an advanced 230 amp DC TIG welder that operates on both single and 3-phase, 120-460 volt input power. PowerConnect® Technology allows the welder to automatically detect any input power type - regardless of voltage or phase. It then optimizes the Aspect 230 to run on the supplied input electricity without any manual linking or switching. The Aspect 230 can operate on any jobsite power, anywhere in the world. Its lightweight inverter design also makes it extremely portable.

With an output range of 2 to 230 amps, the Aspect 230 TIG welds materials up to 1/4" thick. When welding thinner material, built-in TIG pulse reduces arc heat input, minimizing distortion. The Aspect 230 DC TIG welder is outstanding for critical TIG welds on steel, stainless steel and other alloys. It provides up to 230 amps of TIG welding output and is capable of welding up to 5/32" diameter stick electrodes, including Fleetweld® 5P+, with OPTIONAL electrode holder and cable.

Processes

DC TIG (GTAW)

DC Pulsed TIG (GTAW-P)

Stick (GMAW)

Applications
Shipbuilding
Aerospace
Advanced Motorsports
Nuclear
Production Fabrication



Features

Exceptional Arc Response and Stability
 With up to 230 amps of maximum output, you can TIG weld up to 1/4 in. (6.4 mm)
 Maximize productivity and spend more time welding with a rated 35% duty cycle at 230 amps
 Advanced DC pulse and sequencer controls
 Portable, lightweight and easy to transport
 IP23 rated for harsh environments

Intellistart™ Technology
 Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials

PowerConnect® Technology
 Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase

Memory Capability
 The memory function allows saving up to 9 specific welding procedures

Fan-As-Needed
 The cooling fan operates only when needed to assure proper cooling of the machine

Green Mode
 Ability to put machine in standby mode after 10 minutes of inactivity to reduce power consumption

Cooler Power Supply
 Built-in Cooler Power Supply comes standard on all models


PLEASE NOTE: This is a DC TIG welder ONLY. It CANNOT TIG weld aluminum.


Comes complete with

Aspect® 230 DC TIG Welder (460/575, single-phase)

10 ft. (3m) input power cord

FREE Lincoln® Viking™ 1840 Black auto-darkening welding helmet.

Get a FREE Viking™ 1840 Black auto-darkening welding helmet with the purchase of this Aspect® 230 DC TIG welder. Expires 6/30/23. (No substitutions allowed.)

Genuine Lincoln® Viking™ 1840 Black auto darkening welding helmet now features fully digital controls with true color optics and a 7.0 square inch viewing area. The 1840 digital comes with Lincoln's exclusive 4C® lens technology. Proprietary 4C liquid crystal display passes more true color through the lens in both light and dark states to create the clearest view of your work piece. The Viking 1840 digital welding hood has a perfect 1/1/1/1 optical clarity rating, meaning lens distortion and blurriness are completely eliminated, shade is consistent through every square inch of the lens and the welding arc looks crisp and clear at any angle.

Product enhancements also include an expanded range variable shade 7-13 dark state, four arc sensors and DC TIG weld rating down to 2 amps. The Lincoln Viking 1840 digital auto darkening welding hood comes complete with Lincoln's pivot-style headgear, for even weight distribution, and has a three year lens warranty.

Viking™ 1840 Features

4C™ lens technology
 Optimizes contrast and clarity in welding and light states - reducing eye strain and operator fatigue

Wide Viewing Area -
 The 7.0 square inch auto darkening lens provides a up to a 16% larger field of view when compared to other helmets in its class

Perfect 1/1/1/1 Optical Clarity
 This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens

Four arc sensors
 For improved welding arc detection from any angle

Gen. 3 Pivot-style headgear
 Four points of contact help reduce fatigue
 Two adjustable top head supports distribute weight and improve balance
 Orientation adjustment pin for optimal resting position
 Soft front headband reduces pressure and absorbs moisture
 Polymer backpad increases comfort and stabilizes helmet position
 Simple ratchet tightening mechanism for comfortable, secure fit

DC TIG rated to 2 amps -
 Outstanding performance on low amperage DC TIG welding applications.

Low-Profile External Grind control -
 Conveniently switch between welding mode and grinding shade 3.5 without removing helmet

Fully Digital Internal Controls
 Moisture and abrasion resistant push button LED IU controls
 Simple, intuitive adjustments for precise and consistent performance







Comes complete with

Helmet bag

5 outside cover lenses

2 inside cover lenses

Mag lens holder

Three year lens warranty
