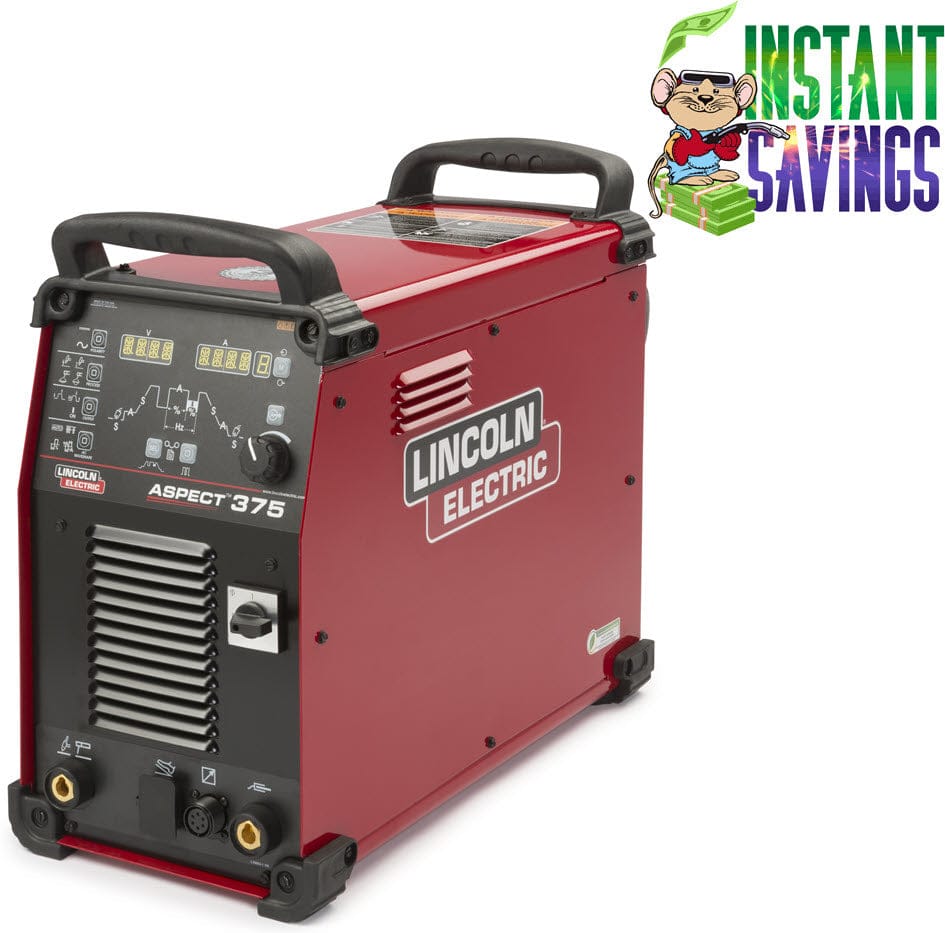

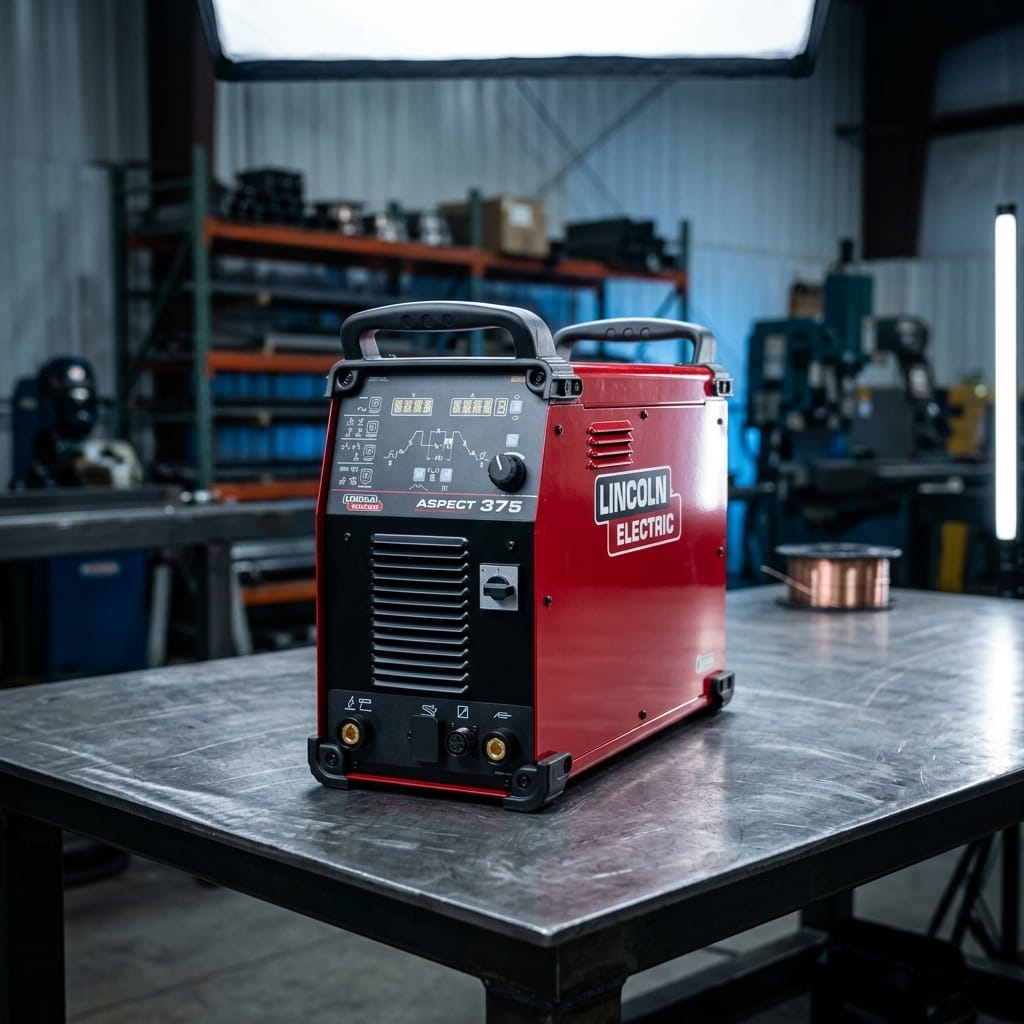

Lincoln® Aspect® 375 AC/DC TIG Welder K3945-1
The Lincoln® Aspect® 375 AC/DC is an advanced 375 amp AC/DC TIG welder that operates on both single and 3-phase, 120-460 volt input power. PowerConnect® Technology allows the welder to automatically detect any input power type - regardless of voltage or phase. It then optimizes the Aspect 375 to run on the supplied input electricity without any manual linking or switching. The Aspect 375 can operate on any input power, anywhere in the world. Its lightweight inverter design also makes it extremely portable.
With an output range of 2 to 375 amps, the Aspect 230 TIG welds materials up to 3/8" thick. When welding thinner material, built-in TIG pulse reduces arc heat input, minimizing distortion. Advanced AC wave form controls and AC Auto Balance® technology help produce superior results on aluminum. The Aspect 375 AC/DC TIG welder is outstanding for critical TIG welds on aluminum, steel, stainless steel and other alloys. It provides up to 375 amps of TIG welding output and is capable of welding up to 3/16" diameter stick electrodes, including Fleetweld® 5P+, with OPTIONAL electrode holder and cable.
Processes
AC/DC TIG (GTAW)
AC/DC Pulsed TIG (GTAW-P)
Stick (GMAW)
Applications
Shipbuilding
Aerospace
Advanced Motorsports
Nuclear
Production Fabrication
Features
Exceptional Arc Response and Stability
With up to 375 amps of maximum output, you can TIG weld up to 3/8 in. (9.5 mm)
Maximize productivity and spend more time welding with a rated 40% duty cycle at 330 amps
Advanced Aluminum Controls
AC Auto Balance technology, pulse, frequency, and additional wave forms
AC Auto Balance® Technology
Automatically provides optimal mix of cleaning and penetration when welding aluminum
Intellistart™ Technology
Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials
PowerConnect® Technology
Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase
Memory Capability
The memory function allows saving up to 9 specific welding procedures
Cooler Power Supply
Built-in Cooler Power Supply comes standard on all models
Comes complete with
Aspect® 375 AC/DC TIG Welder
10 ft. (3m) input power cord
