Lincoln Booth Assist K5319-1

Lincoln® Booth Assist™ K5319-1

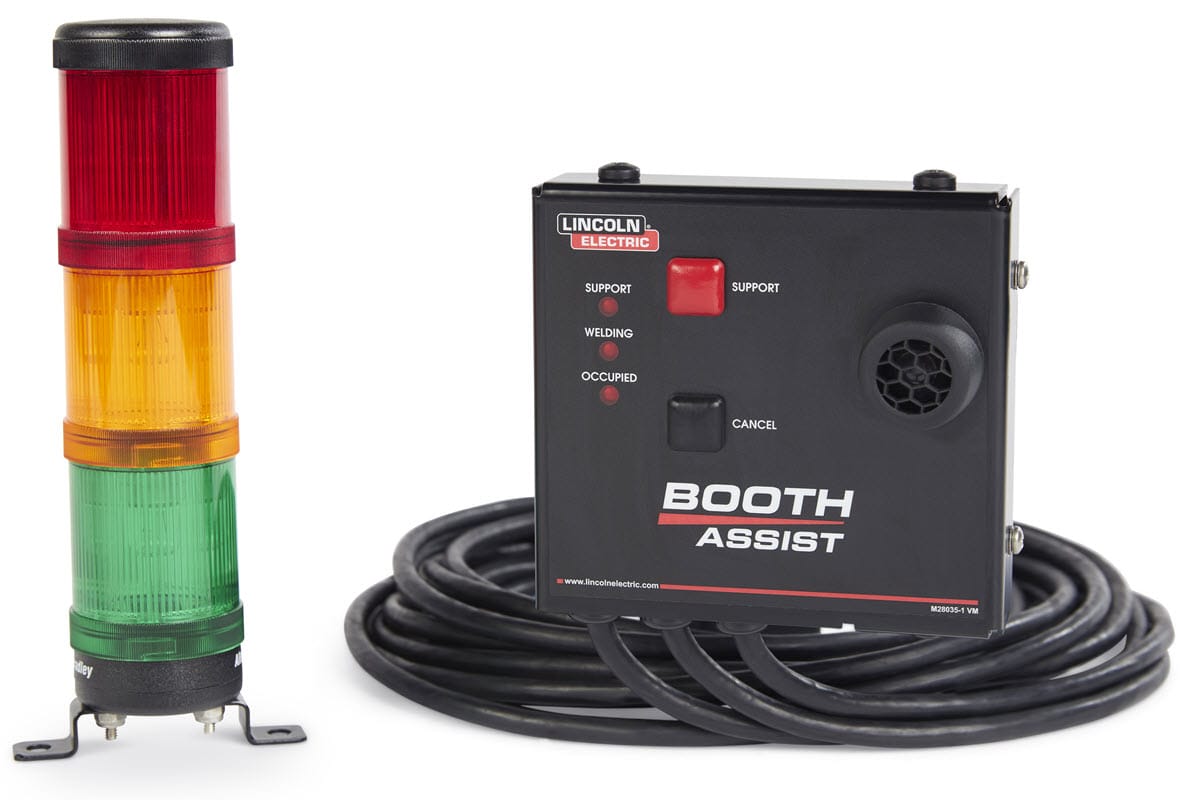

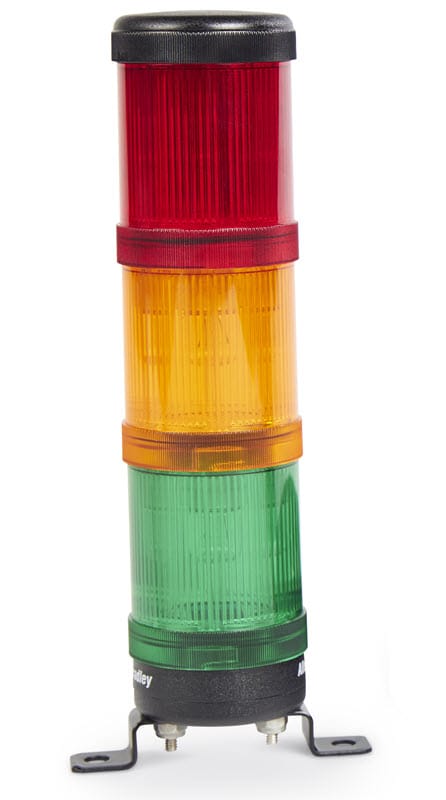

Genuine Lincoln® K5319-1 Booth Assist™ is a welding booth monitoring system that visually indicates booth occupancy, active welding and whether welding instructor/trainer assistance is needed. The Green/Amber/Red light stack mounts on the exterior frame of any major brand of welding booth. It is designed to be a highly visible exterior color reference indicating what's taking place inside your weld booth(s). Green means that the booth is occupied. Yellow means that active welding is in progress. Red means that the student/trainee needs additional help. The light stack allows the instructor to monitor the activity of the entire class/shop at a glance.

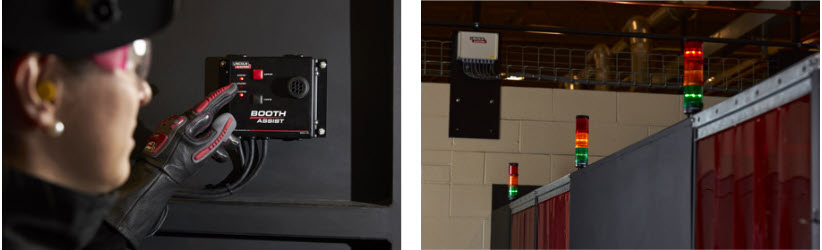

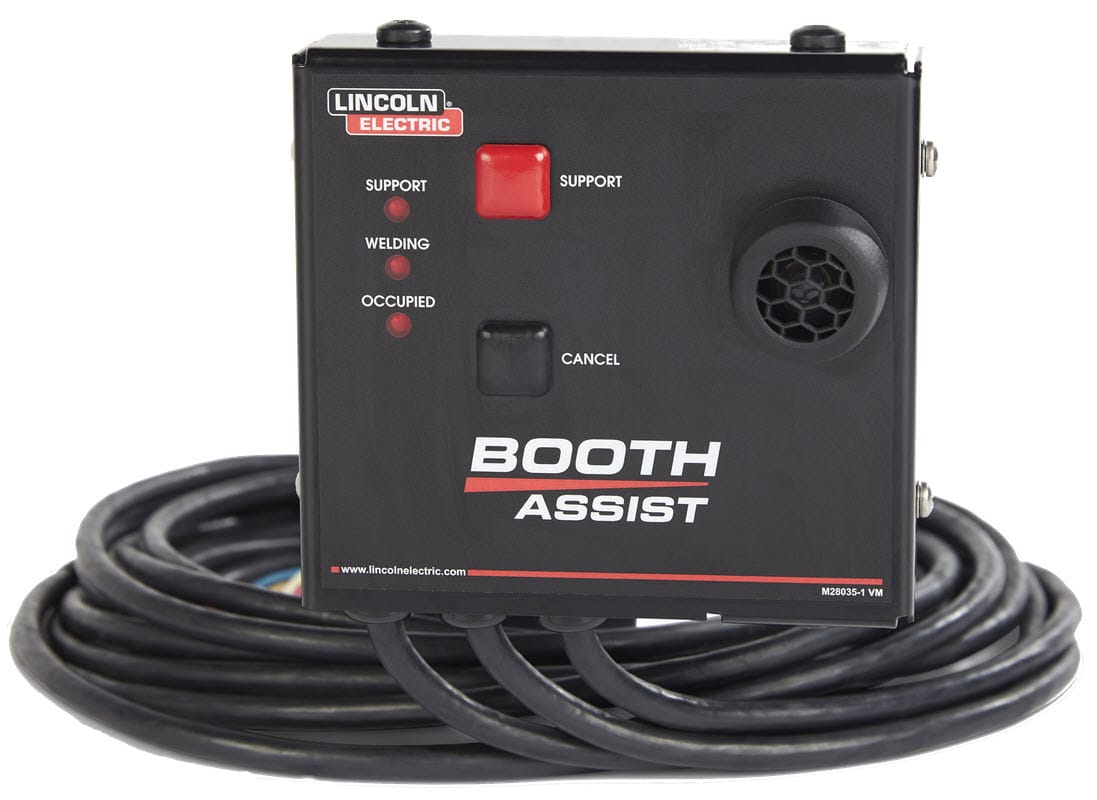

The Booth Assist's control box mounts inside your welding booth(s). It automatically detects a live welding arc and turns the exterior light stack color to amber. The light stack returns to green as soon as the arc is extinguished. If a welding student/trainnee needs help, he/she can simply press the red "Support" button on the control panel to summon help. The Booth Assist monitoring system operates on 115 volt power. It comes complete with all necessary power cables and monting hardware.



Process

Welding booth monitoring

Applications
Welding Training and Education Facilities

Features

Visual Light Tower Outside the Booth
Green Indicator = Booth is Occupied
Amber Indicator = Student is Welding
Red Indicator = Student Needs Support

Easy install

Low voltage operation

Compatible with any welding process

Compatible with any welding equipment

Comes complete with
Control Panel 5.5 x 5.5 x 2 in. (140 x 140 x 51 mm)
Light Stack
Weld Sensing PCB
Mounting Bracket and Hardware
115 volt power cable with plug
