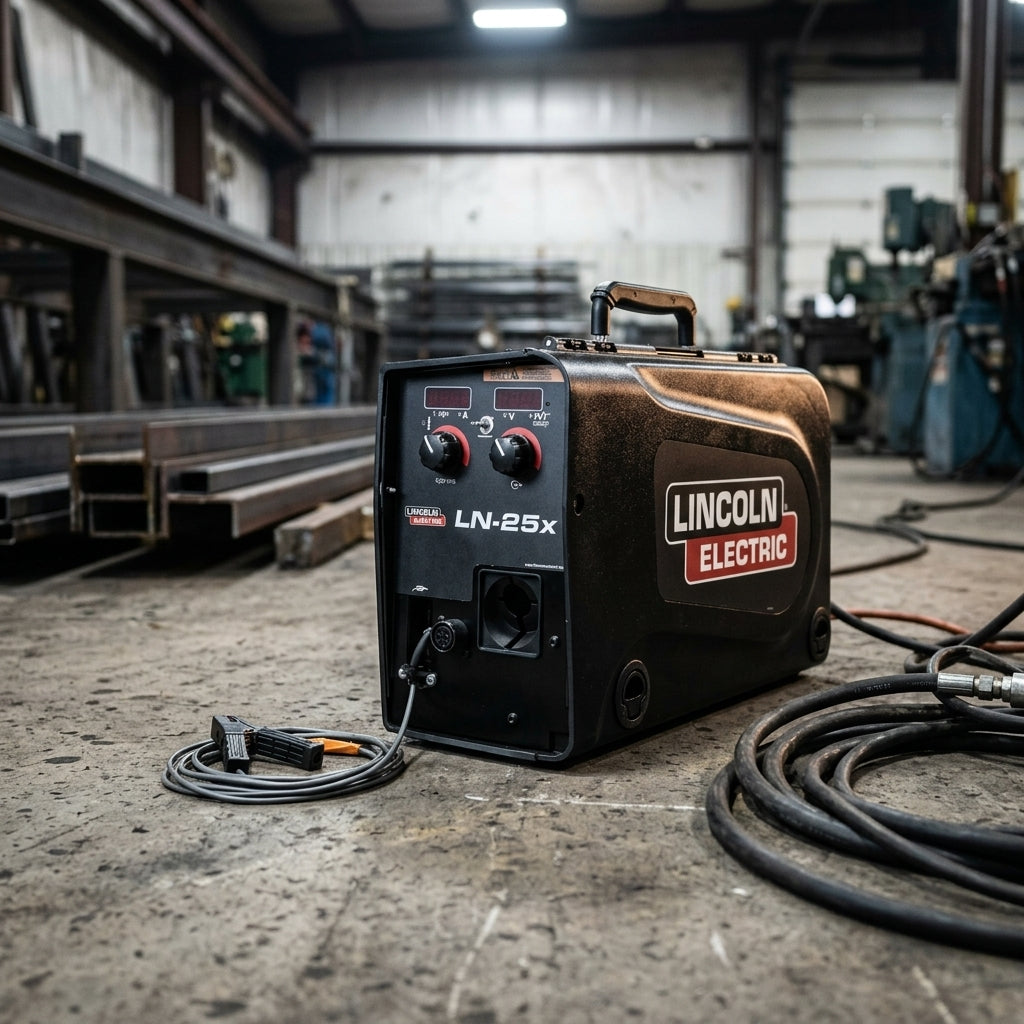

Lincoln® LN-25X® Wire Feeder w/CrossLinc® K4267-2
The Lincoln® LN-25X® Wire Feeder with TVT™ is a voltage sensing MIG wire feeder that has full remote voltage and amperage control without the use of a remote-control cable. Built-in CrossLinc® technology allows the LN-25X to communicate directly with a CrossLinc® equipped Lincoln welder through the welding leads, eliminating the need for costly remote-control cables. CrossLinc® remote control distance is limited only by the length of your welding cable leads. CrossLinc® allows your MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote voltage AND amperage control capabilities at the site of the weld without using expensive remote-control cables. The LN-25X can also be used as a traditional voltage sensing feeder on welders not equipped with CrossLinc®
The LN-25X also comes standard with TVT™. True Voltage Technology compensates for voltage drops common with long welding cable runs. TVT automatically detects welding voltage variations and adjust on-the-fly, to provide a smooth consistent arc, even if you are far away from the welder itself.
(Please note: your welder MUST be equipped with CrossLinc® to take advantage of TVT™). The LN-25X wire feeder has up to a 450 amp welding capacity. It features Lincoln's MAXTRAC® wire drive system to ensure smooth wire feeding and excellent electrical contact with your welding gun.
Processes
MIG (GMAW)
Flux Cored (FCAW)
Applications
Construction & Field Erection
General Fabrication
Heavy Equipment
Heavy Fabrication
Structural Fabrication
Features:
CrossLinc® with TVT™ technology -
CrossLinc® uses the existing
weld cable to communicate voltage
control information between the
feeder and Lincoln® CrossLinc® power source. This
eliminates the need for a separate remote-control cable. TVT™ (True Voltage Technology) automatically compensates for voltage drops commonly associated with long welding cable runs.
Tachometer feedback ensures accurate
wire feed speed
Trigger Interlock Switch Provides
operator comfort for long welds
Maxtrac® Wire Drive System Heavy-duty
cast aluminum wire drive system provides
reliable feeding and durability
Replaceable and Flame Resistant Case
Protects internal components, easy
to replace
Potted PC Boards For moisture and
corrosion protection
Split Wire Guide - Reduces birdnesting
and allows for easy cleaning no-fuss wire
guide alignment
Bright digital meters for easy viewing even
in bright sunlight
Included Tweco style male connector on
input power cable.
Weld Timers Pre-Flow, Post-Flow,
and Burn Back
Adjustable Wire Run-In Speed
for softer starting
Configurable for English or metric units
Arc Hours Meter
Comes Complete With
LN-25X® voltage sensing wire feeder with CrossLinc® and TVT™ technology
Voltage sensing cable and clamp
