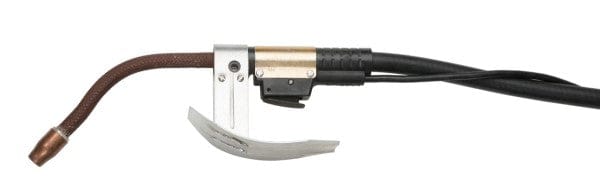

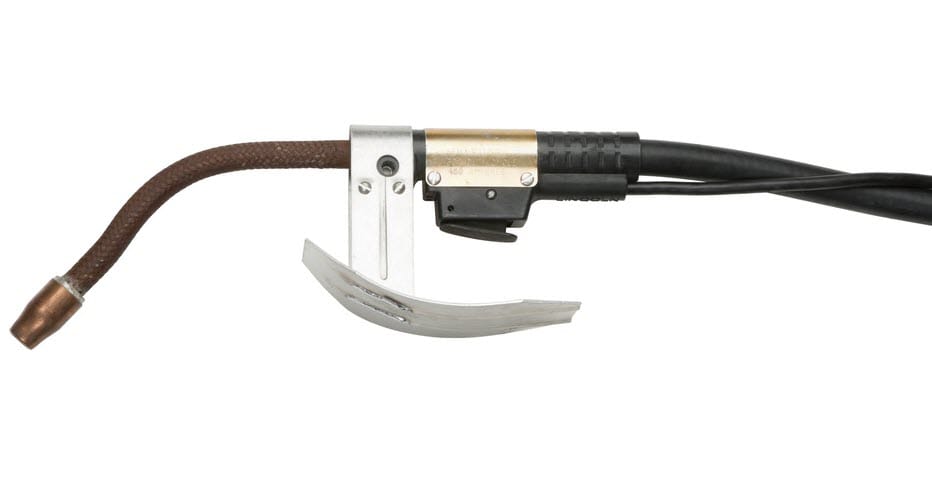

Lincoln Magnum Classic Self-Shielded Welding Gun K115-2

Lincoln® Magnum® Classic Self-Shielded 450A FCAW-SS Welding Gun K115-2

Genuine Lincoln® K115 Magnum® Classic Welding Gun with 15 foot cable and 82 degree gun tube is the industry standard for flux cored arc welding. The K115-2 is rated for 450 amps at 60% duty cycle and meets NEMA specification EW3. This semiautomatic air-cooled flux-cored self-shielded gun includes a heavy-duty gun trigger switch, reinforced rubber jacket and alternate gun tubes. The K115-2 comes ready to feed 7/64 and .120 wire. This reliable and rugged gun is easy to handle and is an excellent choice for Innershield® welding.

Processes
Flux-Cored Self-Shielded (FCAW)



Applications

Industrial Fabrication

Heavy Equipment

Shipbuilding

Construction

Bridge / Ironworking

Pipe

Features

15 ft. Cable Length

82 degree Gun Tube

All guns are rated at 60% duty cycle - Meet NEMA specification EW3

Heavy-duty gun trigger switch - For positive electrical contact and long life

Reinforced rubber jacket - Adds strength and long life to cable

Alternate gun tubes - Available for select guns to reach welds with limited accessibility

What's Included

7/64 Severe Duty Contact Tip (KP2103-6B1)

.120 Severe Duty Contact Tip (KP2103-3B1)

1-1/2 in. Stickout Insulated Guide (KP1971-1)

2-3/4 in. Stickout Insulated Guide (KP1965-1)

Specs
