Lincoln Magnum PRO 100L MIG Gun K4528-1

Code: K4528-1

Skip to product information
1 of 1

Cyberweld Price $249.20
Cyberweld Price $249.20
Mfg Industrial Price: $324.00
(You Save $74.80)
This item qualifies for free standard shipping.
FAST & FREE SHIPPING On All Orders Over $99

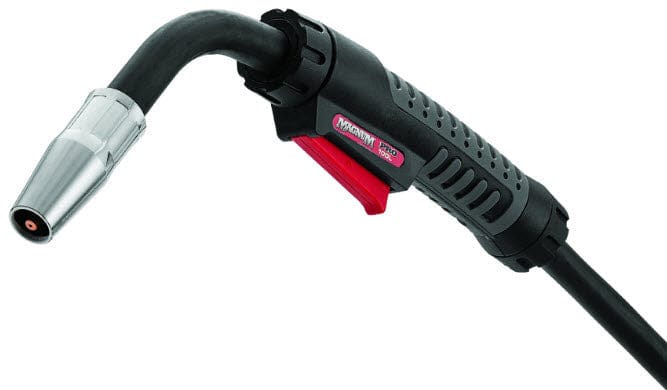

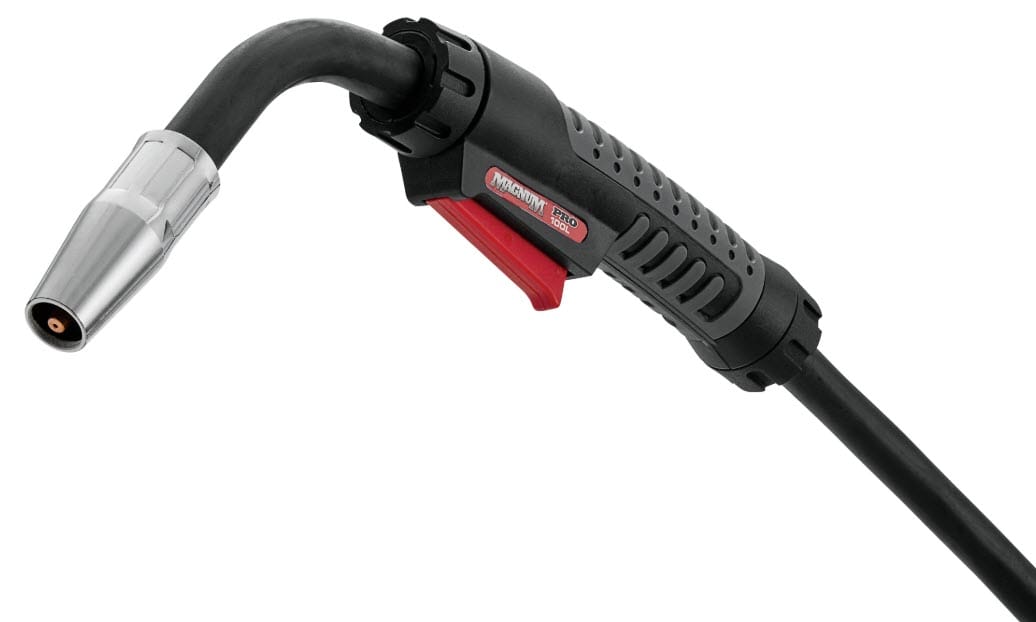

Lincoln® Magnum® PRO 100L MIG Gun K4528-1 (4-Pin)

Genuine Lincoln® Magnum® PRO 100L 10 foot replacement MIG gun for your POWER MIG® 140C, 180C or 180C Dual MIG welder. The 100L is rated for 100 amps at 100% duty cycle using Argon/CO2 shielding gas. The Magnum PRO 100L is the most lightweight MIG gun in the Magnum PRO line and features over-molded handle that improves grip, increases comfort and reduces fatigue. It uses Lincoln's premium Magnum long-life MIG consumables. The 100L comes ready to feed .025-.035 diameter MIG welding wire and is capable of feeding up to .045 diameter wire.

Pulsed MIG (GMAW-P)
Flux-cored (FCAW)

  • 4-Pin trigger connection
  • Premium Tip Performance - The large mass of the Magnum PRO Copper Plus® contact tips help disperse heat, keeping tips cooler and expanding their life.
  • The Anti-Seize™ threads prevent tips from seizing in the diffuser
  • Comfortable Grip - The lightweight curved handle with soft rubber over molding enhances comfort and allows for an easier grip of the gun
  • 100% Duty Cycle - The 100L runs at 100% duty cycle using mixed gas, helping it withstand tough jobs
  • Wire Diameter Range - 0.25-0.45 in (0.6 1.2 mm)

    Comes complete with
  • .025 contact tip KP2744-025T (Qty 1)
  • .035 contact tip KP2744-035T (Qty 1)
  • 0.5 in. (12.7 mm) Thread-On Gas Nozzle Flush (KP3076-1)
  • Gun Liner (KP35-40-15)
  • Integrated Gun Connector
