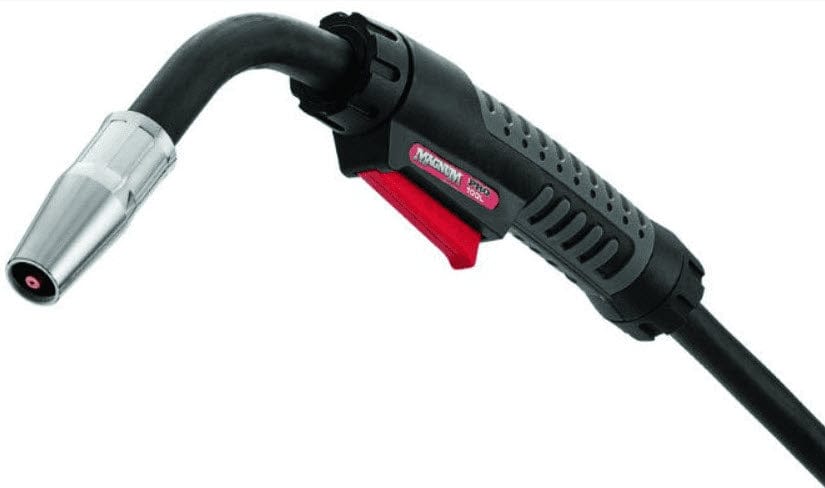

Lincoln Magnum PRO 100L MIG Gun (Miller) K4871-1

Lincoln® Magnum® PRO 100L MIG Gun (Miller) K4871-1

Genuine Lincoln® Magnum® PRO 100L 10 foot MIG gun is a direct replacement for your Miller&reg MDX™-100 or M-100 MIG gun. The K4871-1 has a direct-plug Miller® back end that is compatible with Millermatic® 141 and 211 MIG welders, or Multimatic™ 215 and 220 multi-process welders. The Magnum PRO line is a better performing, more reliable alternative to Miller's MDX™ series MIG guns.

The 100L is rated for 100 amps at 100% duty cycle using Argon/CO2 shielding gas. The Magnum PRO 100L is the most lightweight MIG gun in the Magnum PRO line and features over-molded handle that improves grip, increases comfort and reduces fatigue. It uses Lincoln's premium Magnum long-life MIG consumables. The 100L comes ready to feed .025-.035 diameter MIG welding wire and is capable of feeding up to .045 diameter wire.

Processes
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-cored (FCAW)



Features

Direct-plug Miller® back end

Premium Tip Performance - The large mass of the Magnum PRO Copper Plus® contact tips help disperse heat, keeping tips cooler and expanding their life.

The Anti-Seize™ threads prevent tips from seizing in the diffuser

Comfortable Grip - The lightweight curved handle with soft rubber over molding enhances comfort and allows for an easier grip of the gun

100% Duty Cycle - The 100L runs at 100% duty cycle using mixed gas, helping it withstand tough jobs

Wire Diameter Range - 0.25-0.45 in (0.6 1.2 mm)

Comes complete with

.025 contact tip KP2744-025T (Qty 1)

.035 contact tip KP2744-035T (Qty 1)

0.5 in. (12.7 mm) Thread-On Gas Nozzle Flush (KP3076-1)

Gun Liner (KP35-40-15)

Integrated Miller® Gun Connector
