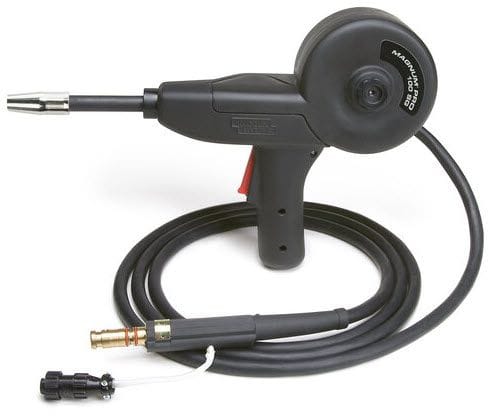

Lincoln® Magnum® PRO 100SG Spool Gun (8-Pin) K4360-1
Genuine Lincoln® Magnum® PRO 100SG 10 foot spool gun for your POWER MIG® welder with 8-pin receptacle. The 100SG is rated for 130 amps at 30% duty cycle and comes complete with carrying case and 1 lb. spool of .035 ER4043 aluminum MIG wire. The Magnum PRO 100SG is lightweight and features an ergonomic design with balanced grip that increases comfort and reduces fatigue. It uses Lincoln's premium Magnum long-life MIG consumables. The 100SG comes ready to feed .030-.035 diameter MIG welding wire.Processes
8-Pin plug with direct back end connection to:
POWER MIG® 140 MP
PRO Expendables ?
Copper Plus™ contact tips and long-life
diffusers with Anti-Seize™ threads.
Lightweight ? at only 3.5 lbs. (1.6 kg).
For all aluminum alloys ?
Recommended wire diameters can
be fed with the same drive roll and
Ergonomic grip and balanced design.
Full travel mechanical trigger ?
Excellent feedback even through a
10 ft. (3.0 m) gun cable ? Gun connector
offers fast connections to the welding
No expensive gun or bulky adapter
Sturdy carrying case ? Protects the
gun during transport and storage
Wire Diameter Range - 0.30-0.35 in (0.8 ? .9 mm)

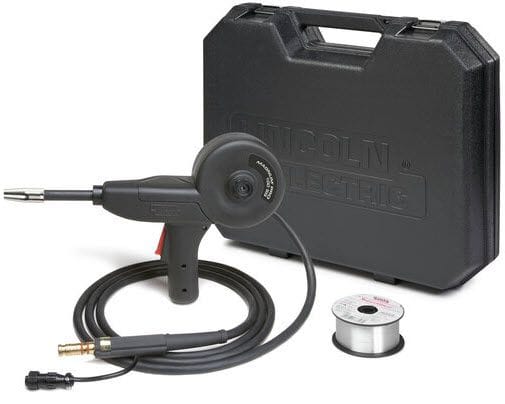

Comes complete with
Spool gun with 10 ft. (3.0 m) cable
Spool of 0.035 in. (0.9 mm) 4043 aluminum alloy
0.030-0.035 in. (0.8-0.9 mm) drive roll
Contact tips (Qty. 3) KP2744-035T
Electrical harness with toggle switch
(must be installed in power source)
Sturdy carrying case
