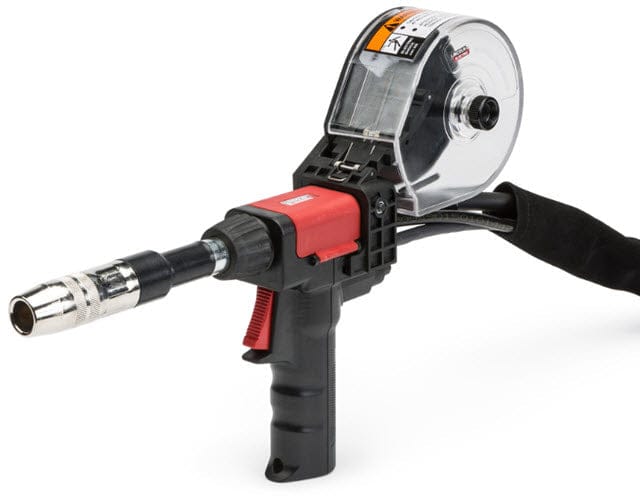

Lincoln Magnum PRO 250LX Spool Gun K3570-2

Lincoln® Magnum® PRO 250LX Spool Gun K3570-2

Genuine Lincoln® Magnum® PRO 250LX 25 foot spool gun for your POWER MIG® 256 or 260 welder. The 250LX is rated for 280 amps at 60% duty cycle. The Magnum PRO 250LX features fine, multi-turn amperage adjustment, meaning you don't have to return to the power source to change wire feed speed. It uses Lincoln's premium Magnum long-life MIG consumables. The 250LX comes ready to feed 3/64 diameter aluminum MIG welding wire.

Processes
MIG (GMAW)



Features

Direct back end connection to:

POWER MIG® 256
POWER MIG® 260

Premium Magnum® PRO Expendables ? Copper Plus™ contact tips and long-life diffusers with Anti-Seize™ threads.

Connects Easily and Effectively ? Plugs directly into the POWER MIG® 256 and POWER MIG® 260 without the need for an additional adapter.

Multi-Turn Wire Speed Adjustment ? Adjust wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source.

Tool-less Drive Roll Tension ? Large thumbscrew makes fine adjustment of drive roll pressure effortless. Set screw allows for coarser adjustment if needed for steel.

Aluminum Wire Diameter Range - 0.30-3/64 in

Specs


Comes complete with

KP2747-1A ? Diffuser, Thread-on, Aluminum 550A

KP2743-1-62RA ? Gas Nozzle Assembly, Aluminum, 5/8 in., Recessed

KP2745-364AT ? Tapered Contact Tip, Aluminum, 3/64 in.

KP2518-2 ? Drive Roll, Aluminum, .030/.035 ? 3/64 in.

KP2879-5 ? Barrel Liner, 180?

KP2773-1 ? Insulator, 550A
