Lincoln Magnum PRO AL FC 225 50 ft. Push-Pull MIG Gun K4797-4

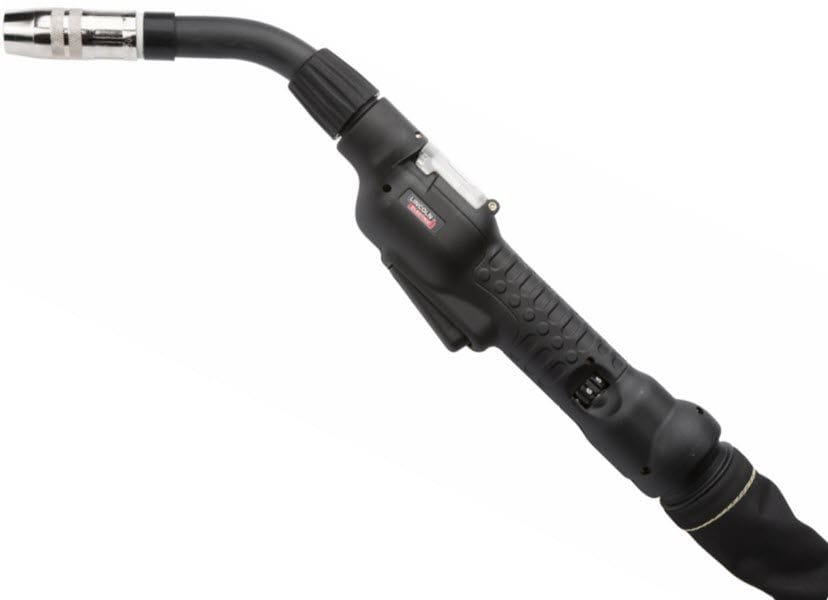

Lincoln® Magnum® PRO AL FC 225 Push-Pull, Air-Cooled MIG Gun - 50 ft. w/Front Trigger K4797-4

Genuine Lincoln® Magnum® PRO AL FC 225 Push-Pull, Air-Cooled MIG gun with 50 foot cable and front trigger is rated for 225 amps of welding output at 60% duty cycle. The AL FC 225 features a fixed conduit to ensure a smooth, premium aluminum MIG welding experience. Built-in industrial wire drive system pulls soft welding wires through the gun and works in concert with your Lincoln welder's "push" wire drive to ensure consistent feeding of welding wire over long distances.

Processes

MIG (GMAW)

MIG Pulsed (GMAW-P)

Applications
Metal Fabrication
Maintenance and Repair
Auto Body
Light Industrial



Features

Fixed Conduit Liner
Fixed, rigid all-in-one liner helps improve soft aluminum wire feeding

Enhanced Internal Design
Modifications to the strain relief and trigger help improve durability and performance

Magnum PRO Expendables
Long-lasting expendables designed to help maximize weld time and reduce downtime

Quick Wire Feed Speed Adjustment
A dial located at the bottom of the gun handle provides a convenient way of changing WFS at the arc

Rotatable Gun Tube
With 360 degrees of rotation, the Magnum PRO AL FC Push-Pull Guns can tackle any welding joint configuration

12-Pin Connection
Plugs directly into Lincoln® welders and wire feeders equipped with a 12-Pin receptacle.
Easily adapts to 7-Pin Lincoln® welder and wire feeder receptacles using OPTIONAL K2910-2 adapter cord.




Comes complete with

Magnum® PRO AL FC 225 Push-Pull MIG gun with front trigger

50 ft. cable leads

3/64" drive rolls and expendables
