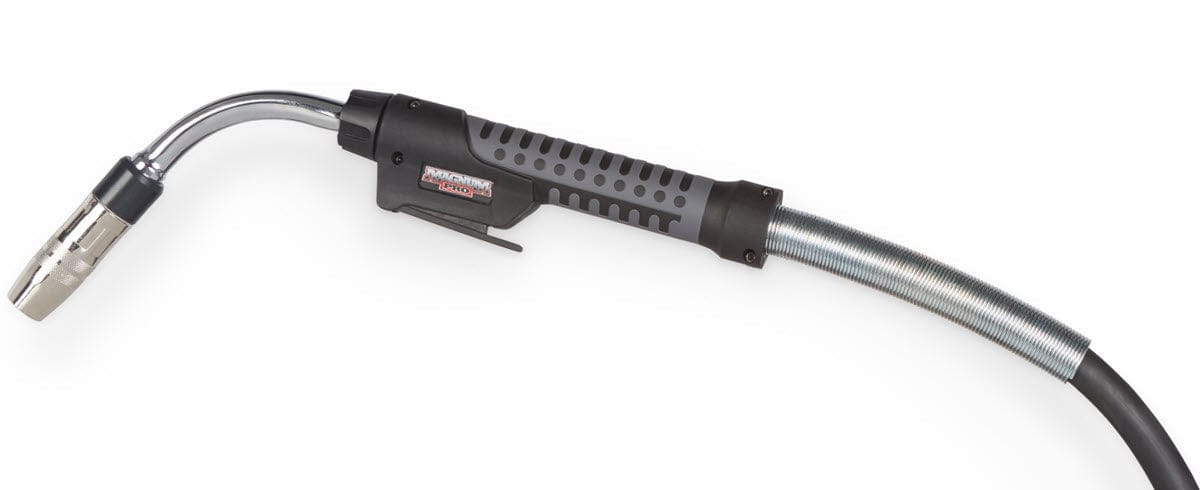

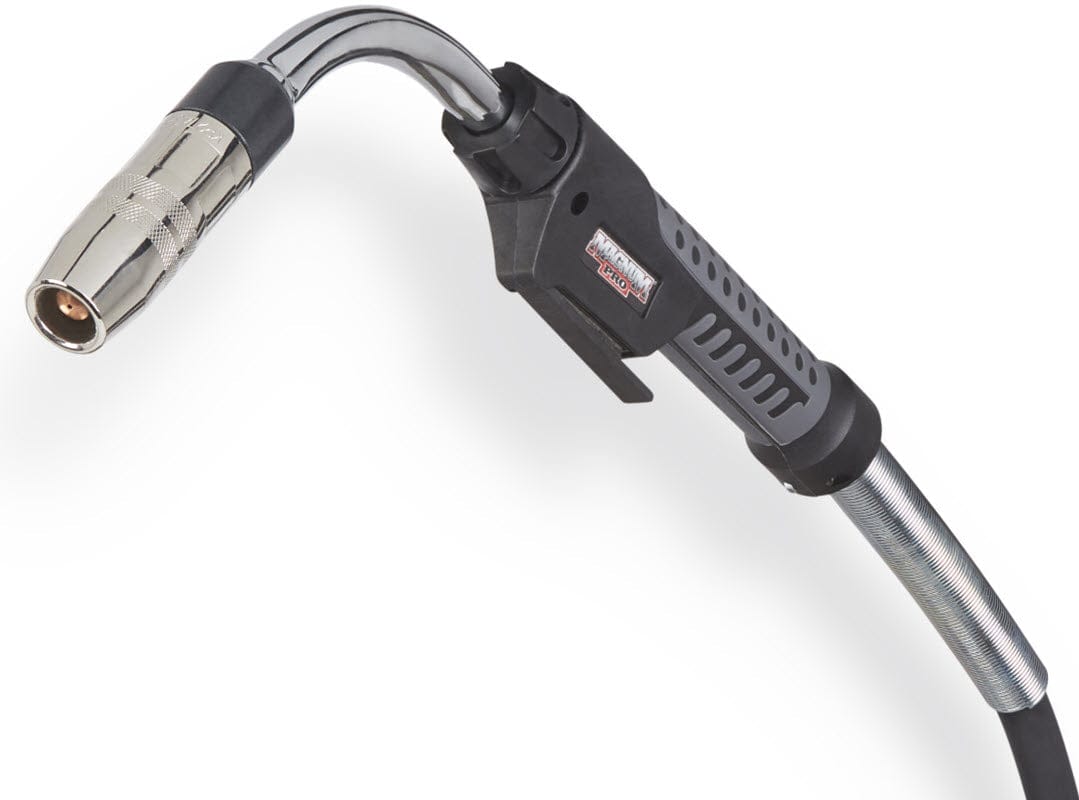

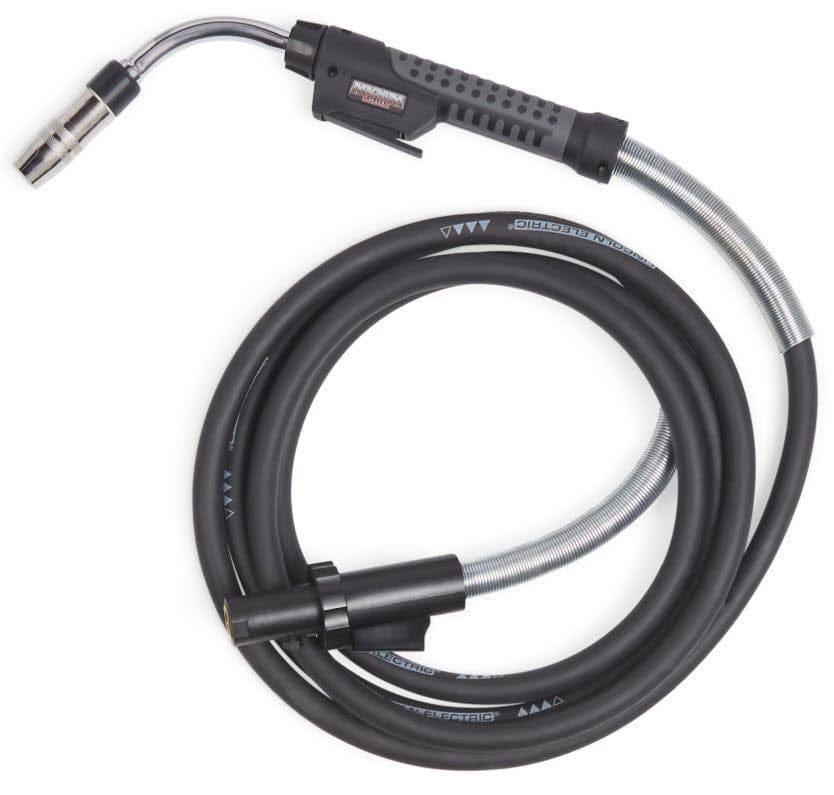

Lincoln Magnum PRO Barrel HDE 350 MIG Gun (Euro) Ready-Pak .045

Lincoln® Magnum® PRO Barrel HDE™ 350 MIG Gun (Euro) Ready-Pak® .045

Genuine Lincoln® Magnum® PRO Barrel HDE™ 350 (K466-1) Ready-Pak® is a 350 amp replacement MIG gun, with .045 consumables, that plugs directly into any MIG welder or wire feeder equipped with a Euro (Fast-Mate™) connection. The unique HDE (Heavy Duty and Ergonomic) design provides maximum comfort while delivering superior performance. The PRO Barrel HDE 350 is rated for 350 amps at a full 100% duty cycle using CO2 shielding gas. Turn the gun tube 180 degrees, and the straight barrel handle can be used as a trigger on top of the welding gun, giving you increased versatility.

It's heavy duty construction features Lincoln's over-molded handle for a slim, balanced grip. The Magnum Pro Barrel HDE 350 uses Lincoln's premium Magnum long-life MIG consumables. It comes ready to feed .045 diameter MIG welding wire and is capable of feeding .035 to 5/64 diameter welding wire.  It is available in 15 ft. and 25 ft. lengths.

Processes
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-cored (FCAW)



Features

• Heavy Duty Construction
• 100% duty cycle
• High quality copper parts ensure superior electrical contact and heat dissipation.
• Four trigger leads are standard for fast field repair.
• Increased versatility with a trigger that rotates 180 degrees.
• Patent-pending Anti-Seize™ tip and diffuser thread design reduces tip and diffuser seizing.
• Lincoln Electric Copper Plus™ Contact Tips - Larger tip diameter and mass improve heat dissipation to increase tip life.
• Tool-less rotating gun tube allows any number of hand positions to reduce fatigue or fit into tight spaces.
• Simplified Expendable Parts Selection - 350A and 550A consumables are interchangeable across all gun models.
• Ships with 350A parts.
• Wire Diameter Range - 0.35-5/64 in
