Lincoln POWER MIG 360MP Aluminum Rear Trigger One-Pak K4662-1

Code: K4662-1

Skip to product information
1 of 2
Lincoln POWER MIG 360MP Aluminum Rear Trigger One-Pak K4662-1
Lincoln POWER MIG 360MP Aluminum Rear Trigger One-Pak K4662-1 1

Cyberweld Price $12,028.00
Cyberweld Price $12,028.00
Mfg Industrial Price: $12,028.00
(You Save $0.00)
Finance Options:

This item qualifies for free standard shipping.

Select Your Free Zone Promo Bonus

-
+
FAST & FREE SHIPPING On All Orders Over $99


Lincoln® POWER MIG® 360MP Aluminum Rear Trigger One-Pak® for Trailer Manufacturing/General Fabrication K4662-1

The Lincoln® K4662-1 POWER MIG® 360MP Aluminum Rear Trigger One-Pak® is a complete push-pull aluminum MIG welding system designed specifically for trailer manufacturing and general fabrication. The package comes complete with a Magnum® PRO AL FC 225 air-cooled push-pull gun with 25 ft. leads. The AL FC features a fixed conduit to ensure a smooth, premium aluminum MIG welding experience. The push-pull gun attaches directly to the POWER MIG 360MP and comes with 3/64 drive rolls and a 16 lb. spool of 3/64 SuperGlaze® ER5356 aluminum MIG welding wire.

The POWER MIG 360MP is a 300 amp multi-process welder that is capable of MIG, pulsed-MIG, DC TIG, pulsed-DC TIG and Stick welding. It operates on 208-575 volt, single-phase input power. Advanced welding features include ArcFX™ technology. ArcFX™graphically displays how changes in voltage and wire feed speed affect your weld. Sample weld cross sections are displayed in the bright, 7 inch LED screen depicting how your bead profile will look based on your actual welding parameters. Using this feature allows you to quickly reference the type of welding outcomes you want and fine tune your adjustments accordingly. Ready.Set.Weld™ feature removes the guesswork in setting the right welding parameters for your job. Large color display guides you through your specific welding application to ensure a great weld every time.

Built-in pulsed MIG and pulsed DC TIG circuitry allows for superior control of the welding arc, while reducing burn-through and warping. Pulsed MIG Mode varies weld current between peak (high heat) and background (low heat) current to provide better control of heat input. Pulsed MIG also enables flat, horizontal, vertical up, or overhead welding without a slag system. Optimized GMAW-P wave forms are readily available to use on aluminum, carbon steel, high strength low alloy steel, stainless steel, and nickel alloys. Use pulse DC TIG welding with OPTIONAL TIG torch to help minimize burn through on thin materials. Lower heat input may lessen warping of parts, especially stainless steel materials. The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz. The pulse setting automatically regulates the output current between the peak amperage set by the amptrol (if used) and the background amperage, which is equal to 60% of the peak. The peak pulse % on-time is fixed at 50%.

Processes
  • MIG (GMAW)
  • MIG Pulsed (GMAW-P)
  • Flux-Cored (FCAW)
  • DC TIG (GTAW)
  • DC TIG Pulsed (GTAW-P)
  • Stick (SMAW)

    Applications
    Metal Fabrication
    Maintenance and Repair
    Auto Body
    Light Industrial



    Features
  • Magnum® PRO AL FC 225 Push-Pull Gun (Rear Trigger)
    Fixed, rigid all-in-one liner helps improve soft aluminum wire feeding
    Modifications to the strain relief and trigger help improve durability and performance
    Long-lasting Magnum® PRO expendables designed to help maximize weld time and reduce downtime
    A dial located at the bottom of the gun handle provides a convenient way of changing wire feed speed at the arc
    360 degree rotatable gun tube allows you to adjust to just about any welding configuration.
  • ArcFX™ Technology
    Patented technology providing instant graphical feedback on how Wire Feed Speed and Voltage affect the weld outcome.
  • Ready.Set.Weld® Quick Set-Up
    Intuitive push-and-turn digital controls make setup a breeze
    7 inch color display guides you through the setup process Advanced options and settings are simple to access

  • Multi-Process Capable
    Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse® and Power Mode®.
  • Aluminum Pulse Process
    Welds 4XXX and 5XXX series aluminum for superior quality welding.
  • Pulse-on-Pulse
    Delivers a stacked dime appearance using a sequence of varying pulse wave shapes to produce a TIG-like bead appearance and excellent weld properties when MIG welding aluminum.
    Pulse-On-Pulse controls arc length and heat input together, making it easier to achieve good penetration.
  • Power Mode
    Maintains a stable, smooth arc for short arc welding on steel. Improved penetration on thicker aluminum sections.
  • TIG Pulse
    Use pulse TIG welding to help minimize burn through on thin materials.
    The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz.
  • Synergic Control
    Set weld procedures with one control.
  • More Performance For Your Dollar
    Universal Input Voltage
    Maxtrac® wire drive provides constant wire feed speed and more consistent welds
    Front access to 115V power outlet and gun connections
    Push-pull and Spool gun ready for aluminum projects*
    Automatic settings help achieve optimal weld parameters
  • Ergonomic Design
    Tilting gas bottle tray for ease of loading
    Ideal height for easy-to-view settings
    Easy maneuverability and small footprint
    Convenient top-mounted expendable parts compartment


    PLEASE NOTE: This is a DC TIG welder ONLY. It CANNOT TIG weld aluminum.

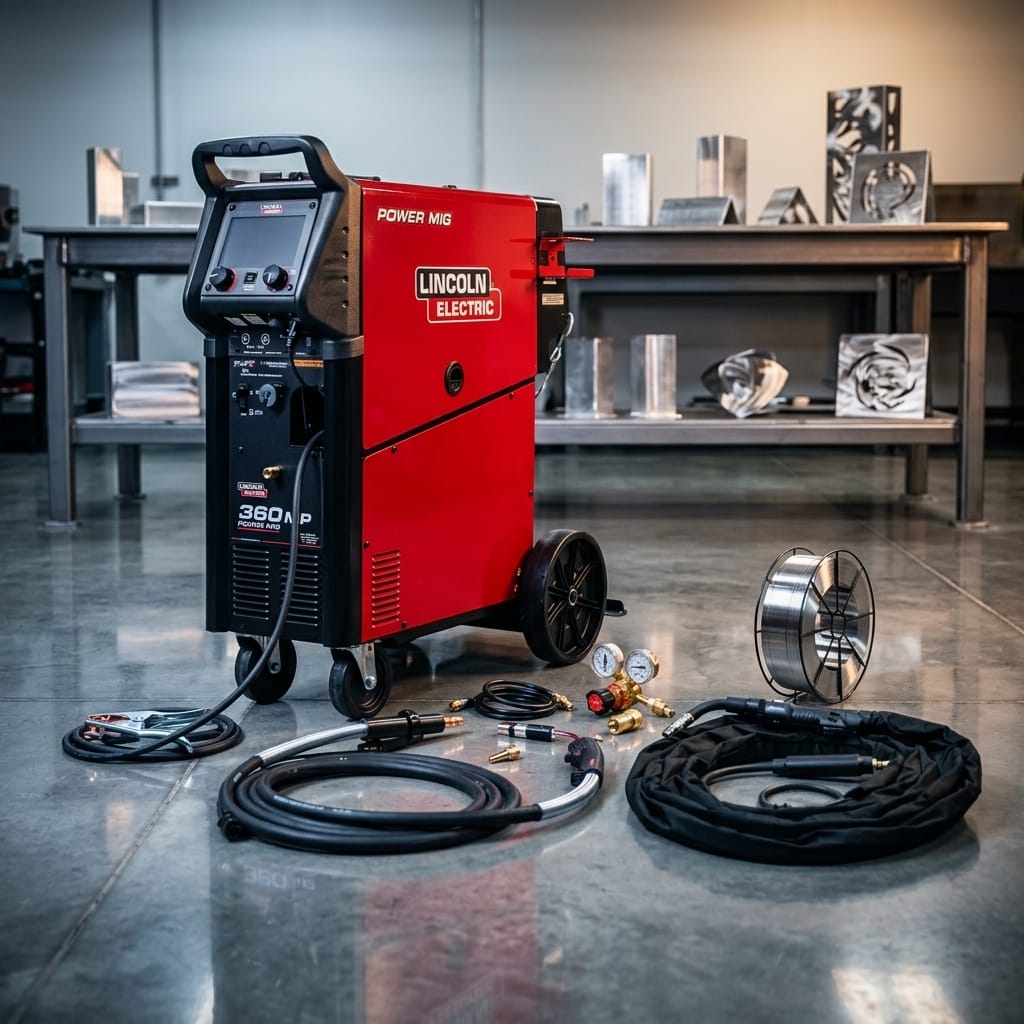

    Comes complete with
  • POWER MIG® 360MP Multi-Process Welder
  • Magnum® PRO AL Rear Trigger Gun G225A, 7 pin (25 ft.) (7.6 m)
  • Aluminum Drive roll kit, 2-roll, 3/64 in. (1.2 mm)
  • SuperGlaze® 5356 3/64 in. (1.2 mm) 16 lb (7.3 kg) spool
  • Magnum® PRO Curve 300 15 ft. Gun
  • Maxtrac® Wire Drive with .035/.045 reversible drive rolls
  • Quick Storage Accessories
  • 10FT Work Cable with Clamp
  • Gas Regulator
  • 10FT Power Cable with Plug
  • Lincoln 2-Year Extended Warranty - POWER MIG 360MP X4467
