Lincoln POWER MIG 360MP Multi-Process Welder (NO INPUT CORD) K4467-2
Select Your Free Zone Promo Bonus

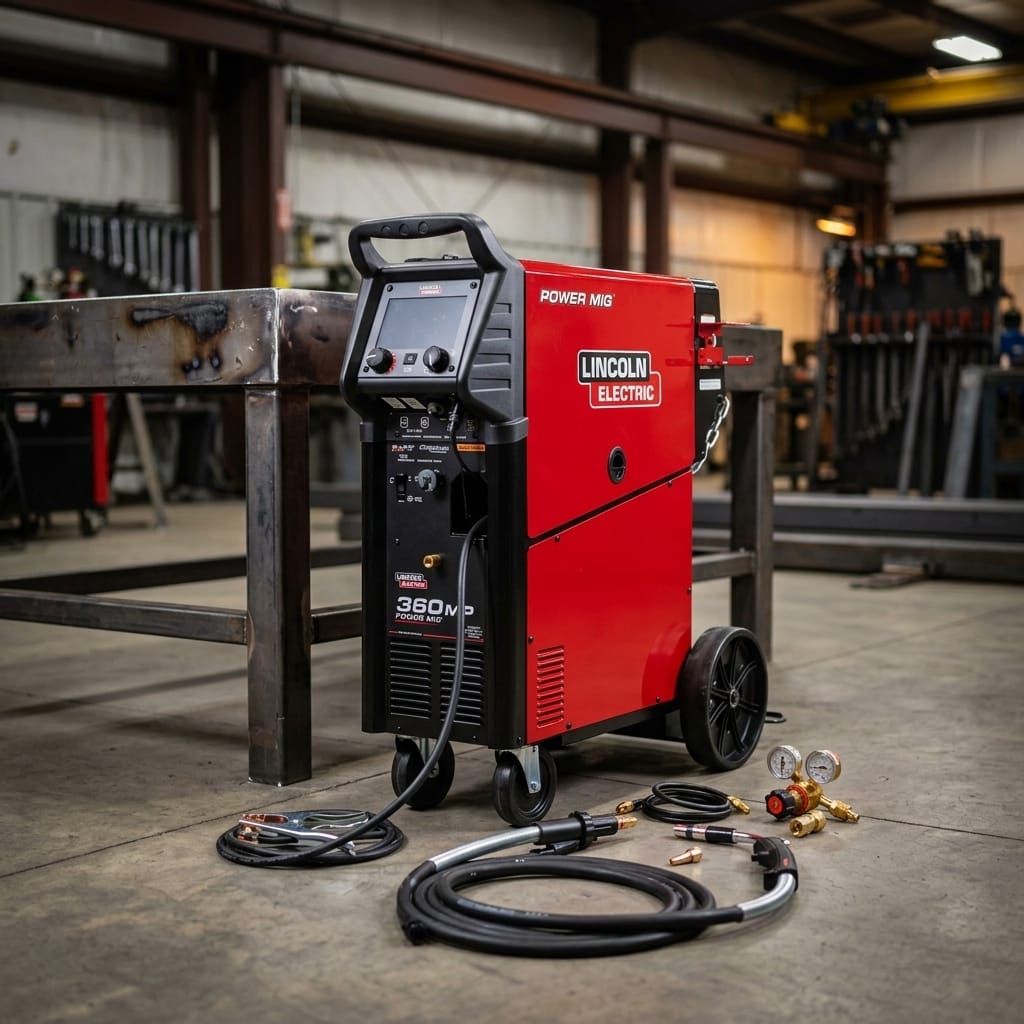

Lincoln® POWER MIG® 360MP Multi-Process Welder (NO INPUT CABLE) K4467-2
The Lincoln® POWER MIG® 360MP (NO INPUT CABLE) is a 300 amp multi-process welder that is capable of MIG, pulsed-MIG, DC TIG, pulsed-DC TIG and Stick welding. It operates on 208-575 volt, single-phase input power. Advanced welding features include ArcFX™ technology. ArcFX™graphically displays how changes in voltage and wire feed speed affect your weld. Sample weld cross sections are displayed in the bright, 7 inch LED screen depicting how your bead profile will look based on your actual welding parameters. Using this feature allows you to quickly reference the type of welding outcomes you want and fine tune your adjustments accordingly. Ready.Set.Weld™ feature removes the guesswork in setting the right welding parameters for your job. Large color display guides you through your specific welding application to ensure a great weld every time.
Built-in pulsed MIG and pulsed DC TIG circuitry allows for superior control of the welding arc, while reducing burn-through and warping. Pulsed MIG Mode varies weld current between peak (high heat) and background (low heat) current to provide better control of heat input. Pulsed MIG also enables flat, horizontal, vertical up, or overhead welding without a slag system. Optimized GMAW-P wave forms are readily available to use on aluminum, carbon steel, high strength low alloy steel, stainless steel, and nickel alloys. Use pulse DC TIG welding with OPTIONAL TIG torch to help minimize burn through on thin materials. Lower heat input may lessen warping of parts, especially stainless steel materials. The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz. The pulse setting automatically regulates the output current between the peak amperage set by the amptrol (if used) and the background amperage, which is equal to 60% of the peak. The peak pulse % on-time is fixed at 50%.
The POWER MIG 360MP performs MIG, Flux-Cored, DC TIG and Stick welding. It has built in spool gun circuitry, for quality aluminum MIG welds using the OPTIONAL Magnum® 250LX spool gun or push-pull gun. The 360MP produces up to 360 amps of welding output. It runs on into a 208V - 575V single-phase input power and has a three year factory warranty.
Maintenance and Repair
Patented technology providing instant graphical feedback on how Wire Feed Speed and Voltage affect the weld outcome.
Intuitive push-and-turn digital controls make setup a breeze
7 inch color display guides you through the setup process Advanced options and settings are simple to access
Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse® and Power Mode®.
Welds 4XXX and 5XXX series aluminum for superior quality welding.
Delivers a stacked dime appearance using a sequence of varying pulse wave shapes to produce a TIG-like bead appearance and excellent weld properties when MIG welding aluminum.
Pulse-On-Pulse controls arc length and heat input together, making it easier to achieve good penetration.
Maintains a stable, smooth arc for short arc welding on steel. Improved penetration on thicker aluminum sections.
Use pulse TIG welding to help minimize burn through on thin materials.
The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz.
Set weld procedures with one control.
Universal Input Voltage
Maxtrac® wire drive provides constant wire feed speed and more consistent welds
Front access to 115V power outlet and gun connections
Push-pull and Spool gun ready for aluminum projects*
Automatic settings help achieve optimal weld parameters
Tilting gas bottle tray for ease of loading
Ideal height for easy-to-view settings
Easy maneuverability and small footprint
Convenient top-mounted expendable parts compartment
PLEASE NOTE: This is a DC TIG welder ONLY. It CANNOT TIG weld aluminum.
Comes complete with
Genuine Lincoln® Magnum® PRO 250LX 25 foot spool gun for your POWER MIG® 256 or 260 welder.
80 Cubic Foot Inert Gas Cylinder for Argon(75%)/CO2(25%) and Argon
