Lincoln® Precision TIG 225 TIG Welder Ready Pak® K2535-2
The Lincoln® Precision TIG® 225 Ready Pak® K2535-2 is a complete 230 amp AC/DC TIG welding package that includes TIG torch, remote Foot Amptrol™ and undercarriage. With an operating range of 5 to 230 amps, the Precision TIG 225 gives you the most job flexibility of any TIG welder in its class. Patented Micro-Start™ II technology delivers unmatched low amperage TIG arc starts and precise crater control. When welding aluminum, AC Auto Balance® automatically optimizes the cleaning versus penetration ratio for the perfect weld, every time. When welding thinner material, built-in TIG pulse reduces arc heat input, minimizing distortion.
The Precision TIG welder is outstanding for AC aluminum TIG welding. Steel and stainless steel can be welded in the DC TIG mode. It operates on 208/230 volt input power and comes complete with everything you need to start TIG welding, except filler metal and shielding gas. The Precision TIG 225 provides up to 230 amps of TIG welding output and is capable of welding up to 5/32" diameter stick electrodes, including Fleetweld® 5P+, with OPTIONAL electrode holder and cable.Processes
AC/DC TIG (GTAW)
AC/DC Pulsed TIG (GTAW-P)
Adds easy shop mobility and provides shielding gas bottle platform, handy storage drawer and two filler rod holders.
Easy-to-use operator interface
Select mode, polarity and begin welding.
Patented Micro-Start™ II Technology
Delivers extremely stable low amperage starting, welding and cratering for both AC and DC welding.
AC Auto Balance®
Automatically provides for the optimal mix of cleaning and penetration.
Minimizes material distortion from excessive heat input.
Also helps moderate filler metal deposition for consistent bead appearance.
Superior stick performance
Offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes ? even with Fleetweld® 5P+ (E6010).

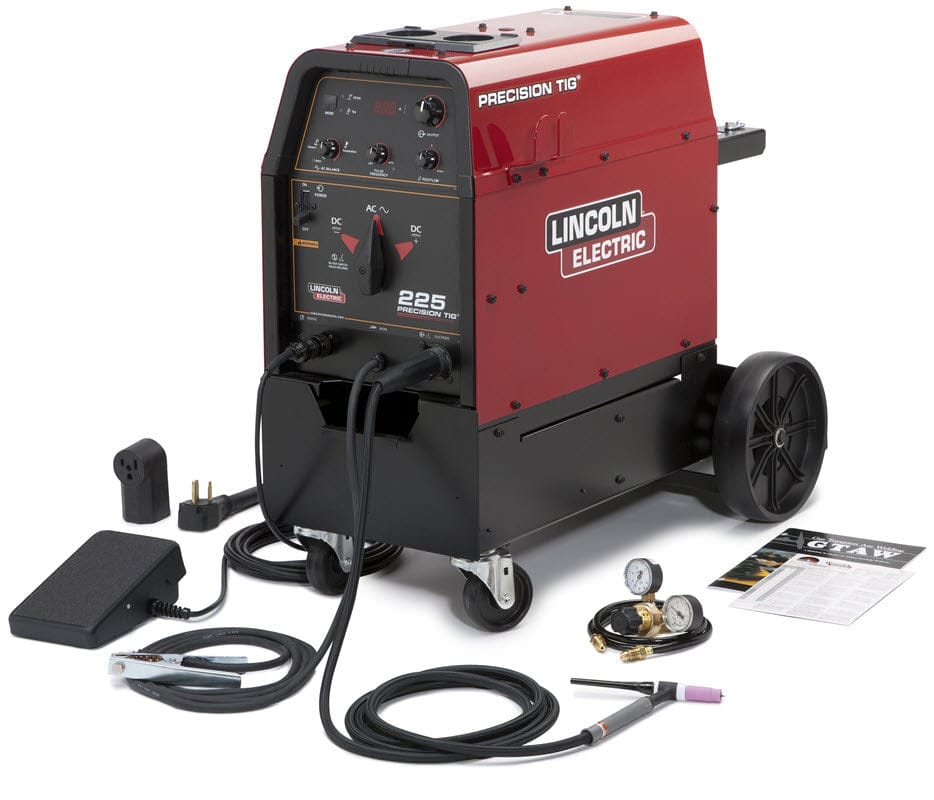

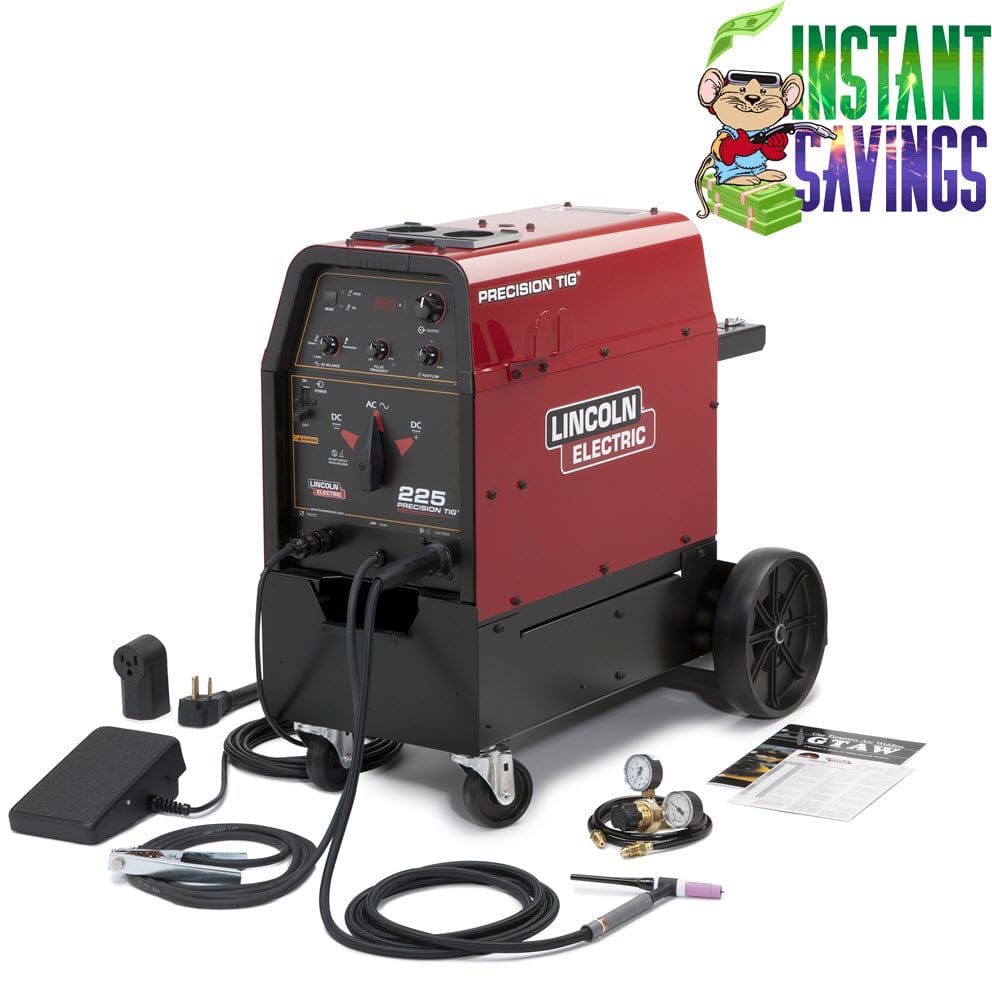

Comes complete with
Precision TIG® 225 TIG Welder
Understorage cart with shielding gas bottle platform, handy storage drawer and two filler rod holders
Torch Parts Storage Compartment
10 ft. (3.0 m) Work Cable & Clamp
Removable Lift Eye
9 ft. (2.7 m) Input Power Cord with NEMA 6-50P Plug NEMA 6-50R Receptacle
PTA-17 150 amp TIG torch w/ 1 pc. cable 12 ft. (3.6 m) Ultra-Flex™ Cable Twist Mate? Adapter
3/32 in. (2.4 mm) 2% Ceriated Tungsten
Collet & Collet Body
7/16 in. (11.1 mm) Alumina Nozzle
Long Back Cap
Gas Regulator with Hose
Remote Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870)
TIG Procedure Guide GTAW (TIG) Handbook
FREE Lincoln® Viking™ 1840 Black auto-darkening welding helmet.
Get a FREE Viking™ 1840 Black auto-darkening welding helmet with the purchase of this Precision TIG® 225 TIG welder. Expires 6/30/23. (No substitutions allowed.)
Genuine Lincoln® Viking™ 1840 Black auto darkening welding helmet now features fully digital controls with true color optics and a 7.0 square inch viewing area. The 1840 digital comes with Lincoln's exclusive 4C® lens technology. Proprietary 4C liquid crystal display passes more true color through the lens in both light and dark states to create the clearest view of your work piece. The Viking 1840 digital welding hood has a perfect 1/1/1/1 optical clarity rating, meaning lens distortion and blurriness are completely eliminated, shade is consistent through every square inch of the lens and the welding arc looks crisp and clear at any angle.
Product enhancements also include an expanded range variable shade 7-13 dark state, four arc sensors and DC TIG weld rating down to 2 amps. The Lincoln Viking 1840 digital auto darkening welding hood comes complete with Lincoln's pivot-style headgear, for even weight distribution, and has a three year lens warranty.
Viking™ 1840 Features
4C™ lens technology
and clarity in welding and light states - reducing eye strain and operator fatigue
Wide Viewing Area -
The 7.0 square inch auto darkening lens provides a up to a 16% larger field of view when compared to other helmets in its class
Perfect 1/1/1/1 Optical Clarity
This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
Four arc sensors
For improved welding arc detection from any angle
Gen. 3 Pivot-style headgear
Four points of contact help reduce fatigue
Two adjustable top head supports
distribute weight and improve
Orientation adjustment pin for
optimal resting position
Soft front headband reduces
pressure and absorbs moisture
Polymer backpad increases comfort
and stabilizes helmet position
Simple ratchet tightening
mechanism for comfortable,
DC TIG rated to 2 amps -
Outstanding performance on low amperage DC TIG welding applications.
Low-Profile External Grind control -
Conveniently switch between welding mode and grinding shade 3.5 without removing helmet
Fully Digital Internal Controls
Moisture and abrasion resistant push button LED IU controls
Simple, intuitive adjustments for precise and consistent performance
Comes complete with
5 outside cover lenses
2 inside cover lenses
Mag lens holder
Three year lens warranty
