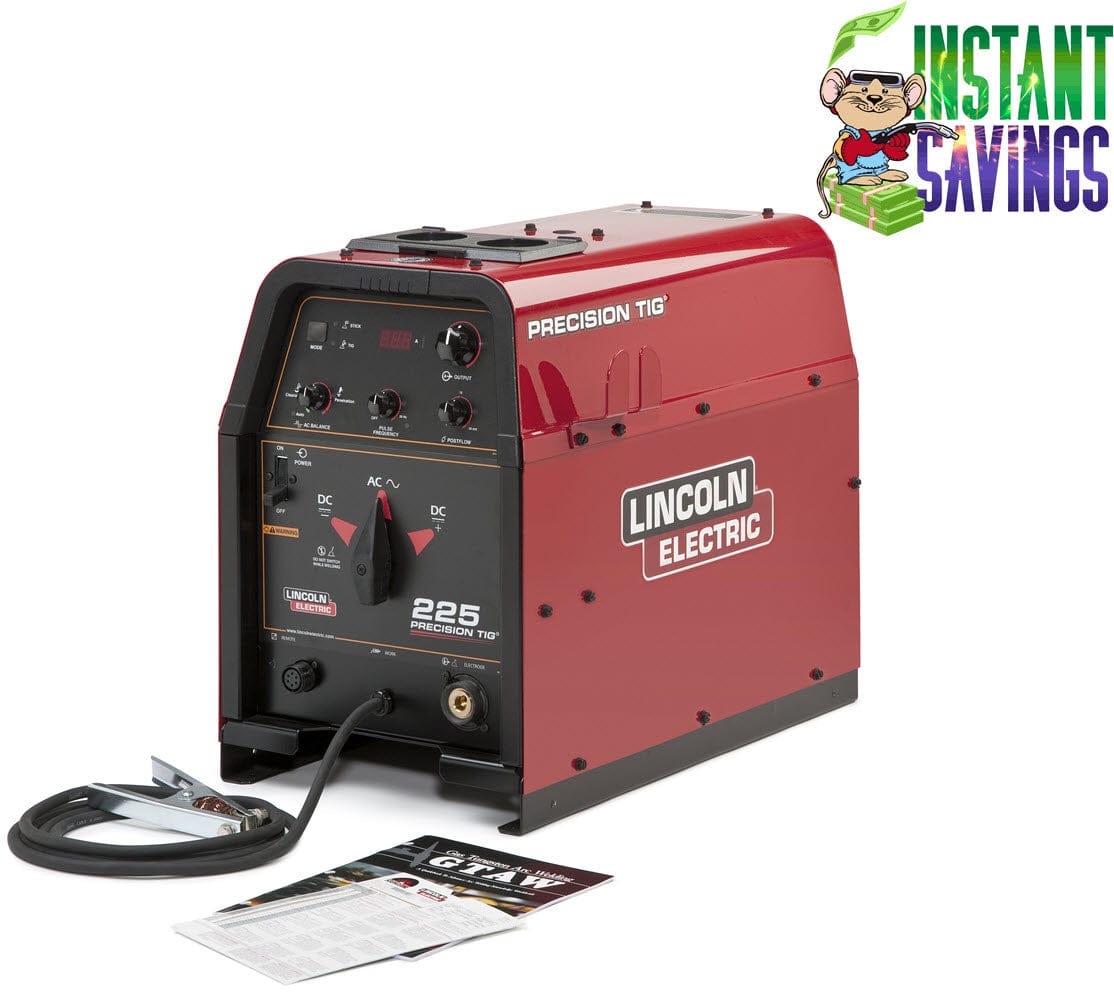

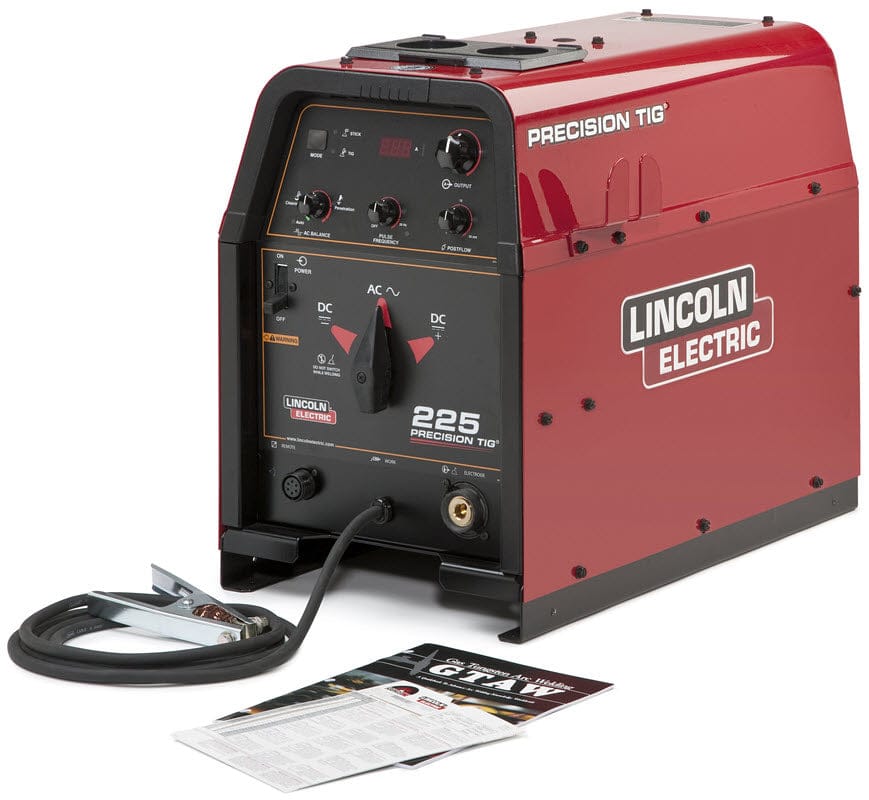

Lincoln® Precision TIG 225 TIG Welder (460/575) K2533-2

The Lincoln® Precision TIG® 225 K2533-2 is a 230 amp AC/DC TIG welder that operates on single-phase, 460/575 volt input power. With an output range of 5 to 230 amps, the Precision TIG 225 gives you the most job flexibility of any TIG welder in its class. Patented Micro-Start™ II technology delivers unmatched low amperage TIG arc starts and precise crater control. When welding aluminum, AC Auto Balance® automatically optimizes the cleaning versus penetration ratio for the perfect weld, every time. When welding thinner material, built-in TIG pulse reduces arc heat input, minimizing distortion.

The Precision TIG welder is outstanding for AC aluminum TIG welding. Steel and stainless steel can be welded in the DC TIG mode. It provides up to 230 amps of TIG welding output and is capable of welding up to 5/32" diameter stick electrodes, including Fleetweld® 5P+, with OPTIONAL electrode holder and cable.

  • AC/DC Pulsed TIG (GTAW-P)
  • Stick (GMAW)

    Vocational Schools
    General Fabrication

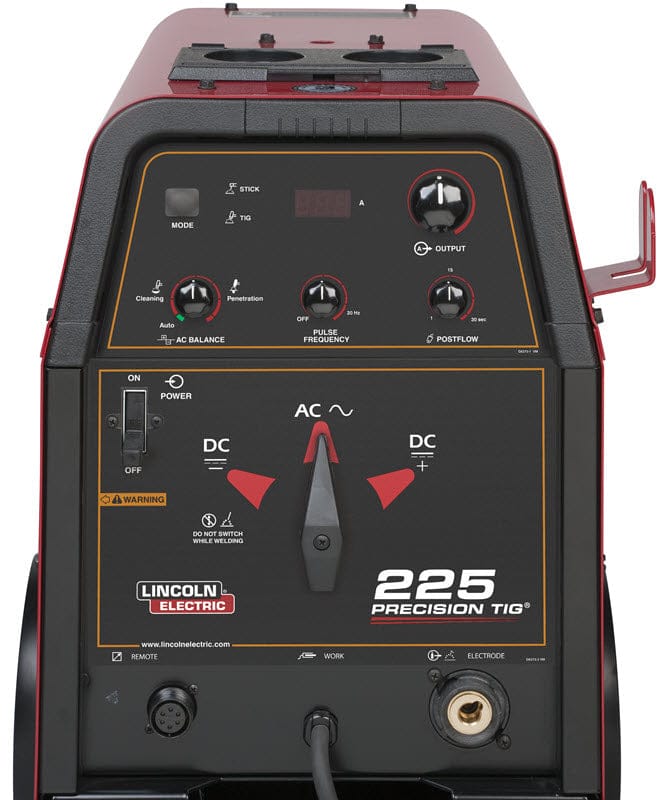

  • Easy-to-use operator interface
    Select mode, polarity and begin welding.
  • Patented Micro-Start™ II Technology
    Delivers extremely stable low amperage starting, welding and cratering for both AC and DC welding.

  • AC Auto Balance®
    Automatically provides for the optimal mix of cleaning and penetration.
  • TIG pulser
    Minimizes material distortion from excessive heat input.
    Also helps moderate filler metal deposition for consistent bead appearance.
  • Superior stick performance
    Offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes even with Fleetweld® 5P+ (E6010).

    Comes complete with
  • Precision TIG® 225 TIG Welder (460/575, single-phase)

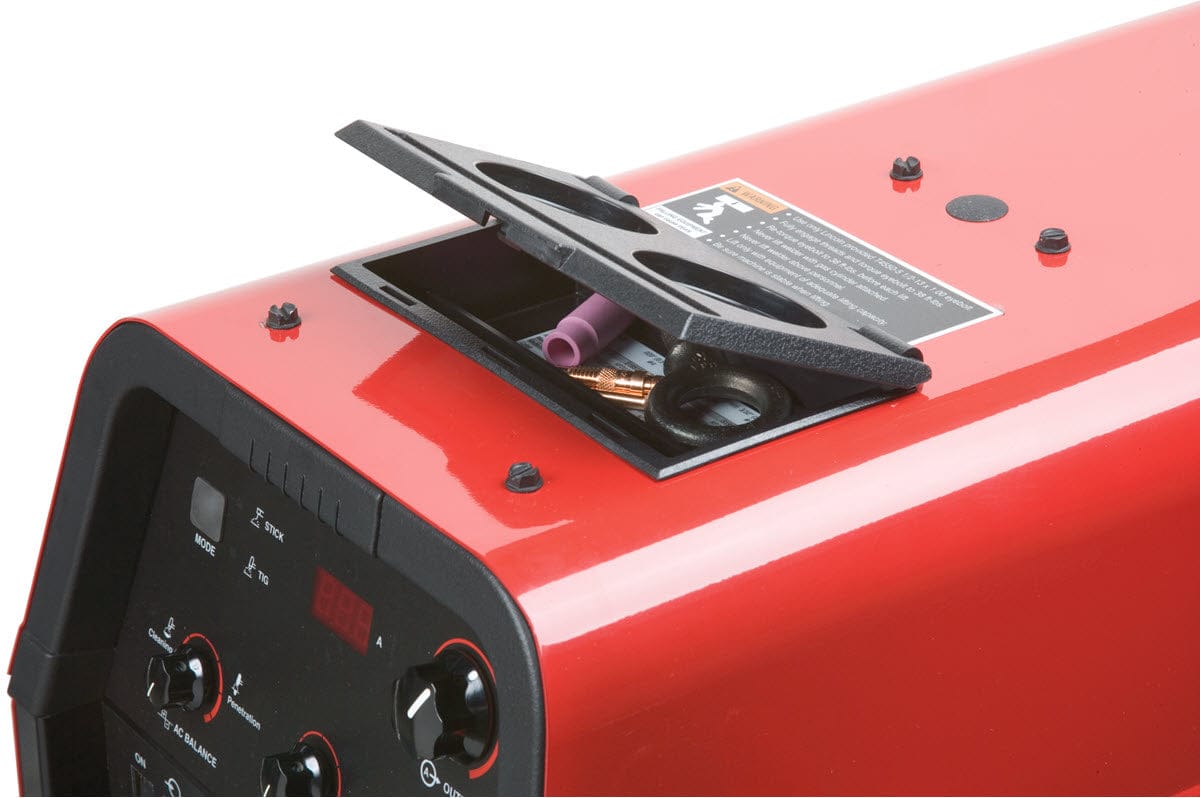

  • Torch Parts Storage Compartment
  • Torch Hanger
  • 10 ft. (3.0 m) Work Cable & Clamp
  • 9 ft. (2.7 m) Input Power Cord
  • NEMA 6-50R Receptacle
  • Removable Lift Eye
  • TIG Procedure Guide GTAW (TIG) Handbook
  • Lincoln 2-Year Extended Warranty - Precision TIG 225 X2533
