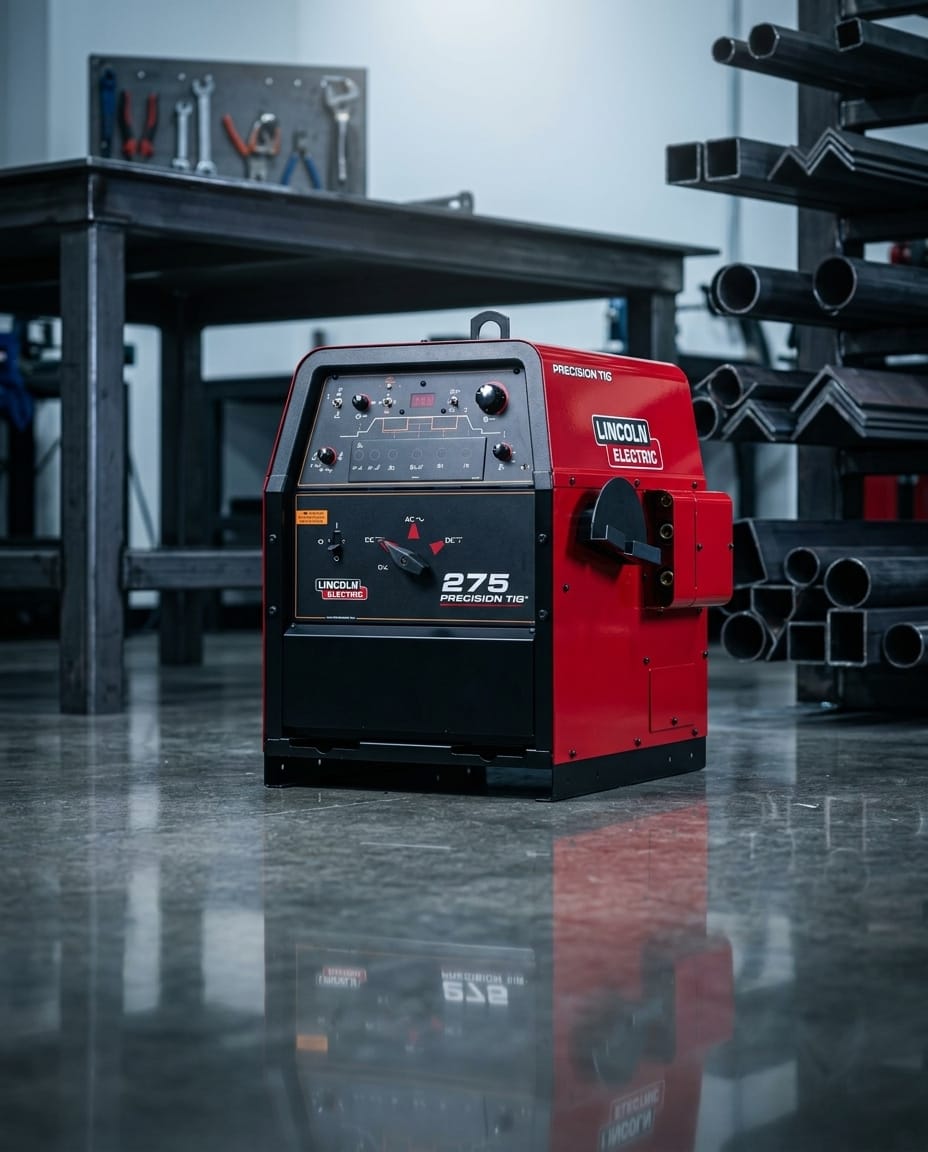

Lincoln® Precision TIG® 275 TIG Welder (460/575) K2619-1 The Lincoln® Precision TIG® 275 K2619-2 is a 275 amp AC/DC TIG welder that operates on single-phase, 460/575 volt input power. With a welding output range of 2 to 340 amps, the Precision TIG 275 gives you the most job flexibility of any TIG welder in its class. Patented Micro-Start™ II technology delivers unmatched low amperage TIG arc starts and precise crater control. When welding aluminum, AC Auto Balance® automatically optimizes the cleaning versus penetration ratio for the perfect weld, every time. When welding thinner material, OPTIONAL TIG pulse reduces arc heat input, minimizing distortion.
The Precision 275 TIG welder is outstanding for AC aluminum TIG welding. Steel and stainless steel can be welded in the DC TIG mode. It operates on single-phase, 460/575 volt input power. The Precision TIG 275 provides up to 340 amps of TIG welding output and is capable of welding up to 5/32" diameter stick electrodes, including Fleetweld® 5P+, with OPTIONAL electrode holder and cable.
Processes
AC/DC TIG (GTAW)
Stick (GMAW)
Applications
Construction
Automotive
Brewery
Distillery
General Fabrication
Maintenance & Repair
Marine Applications
Marine Fabrication & Repair
Pharmaceutical Equipment
Features
Easy-to-use operator interface
Select mode, polarity and begin welding.
Patented Micro-Start™ II Technology
Delivers extremely stable low amperage starting, welding and cratering for both AC and DC welding.
AC Auto Balance®
Automatically provides for the optimal mix of cleaning and penetration.
Also helps moderate filler metal deposition for consistent bead appearance.
Side-mounted torch holder and connections
Provides simple cable management and protection, and a place for your torch when not in use.
Direct TIG torch connection to machine and water cooler without the use of adapters.
Superior stick performance
Offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes even with Fleetweld® 5P+ (E6010).
Comes complete with
Precision TIG® 275 TIG Welder
Torch Parts Storage Compartment
Torch Hanger
