Lincoln Precision TIG 375 TIG Welder Ready-Pak K2624-1

Lincoln® Precision TIG® 375 TIG Welder Ready-Pak K2624-1

The Lincoln® Precision TIG® 375 Ready-Pak® is a complete 375 amp AC/DC TIG welding package. The system includes everything you need to perform water-cooled TIG welding EXCEPT the filler metal and shielding gas cylinder. The Precision TIG 375 has the power for heavier jobs and includes pulsed TIG for welding thin materials. With an operating range of 2 to 420 amps, the Precision TIG 275 gives you the most job flexibility and highest duty cycle rating of any TIG welder in its class. Patented Micro-Start™ II technology delivers unmatched low amperage TIG arc starts and precise crater control. When welding aluminum, AC Auto Balance® automatically optimizes the cleaning versus penetration ratio for the perfect weld, every time. When welding thinner material, TIG pulse reduces arc heat input, minimizing distortion.

The Precision TIG 375 is outstanding for AC aluminum TIG welding. Steel and stainless steel can be welded in the DC TIG mode. It operates on single-phase, 208/230/460 volt input power. The Precision TIG 375 provides up to 420 amps of TIG welding output and is capable of welding up to 3/16" diameter stick electrodes, including Fleetweld® 5P+, with OPTIONAL electrode holder and cable.

The Precision TIG 375 Ready-Pak comes fully assembled and includes: Under-Cooler Cart Water Cooler (K1828-1), Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870), Harris Gas Regulator/Flowmeter and 10 ft. (3.0 m) Hose Kit (3100211), PTW-20 250 amp water cooled TIG torch w/ 25 ft. (7.6 m) cable (K1784-4), Zippered Torch Cover for TIG Torch with 25 (7.6m) Cable Assembly (K918-2), Spare Parts Kit for PTW-20 Series TIG torches.

Processes

AC/DC TIG (GTAW)

AC/DC Pulsed TIG (GTAW-P)

Stick (GMAW)

Applications
Construction
Automotive
Brewery
Distillery
General Fabrication
Maintenance & Repair
Marine Applications
Marine Fabrication & Repair
Pharmaceutical Equipment



Features

Easy-to-use operator interface
Select mode, polarity and begin welding.

Advanced Pulse Control Panel
Enable the TIG pulser to minimize material distortion from excessive heat input.
The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.

Patented Micro-Start™ II Technology
Delivers extremely stable low amperage starting, welding and cratering for both AC and DC welding.

AC Auto Balance®
Automatically provides for the optimal mix of cleaning and penetration.
Also helps moderate filler metal deposition for consistent bead appearance.

Side-mounted torch holder and connections
Provides simple cable management and protection, and a place for your torch when not in use.
Direct TIG torch connection to machine and water cooler without the use of adapters.

Superior stick performance
Offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes even with Fleetweld® 5P+ (E6010).

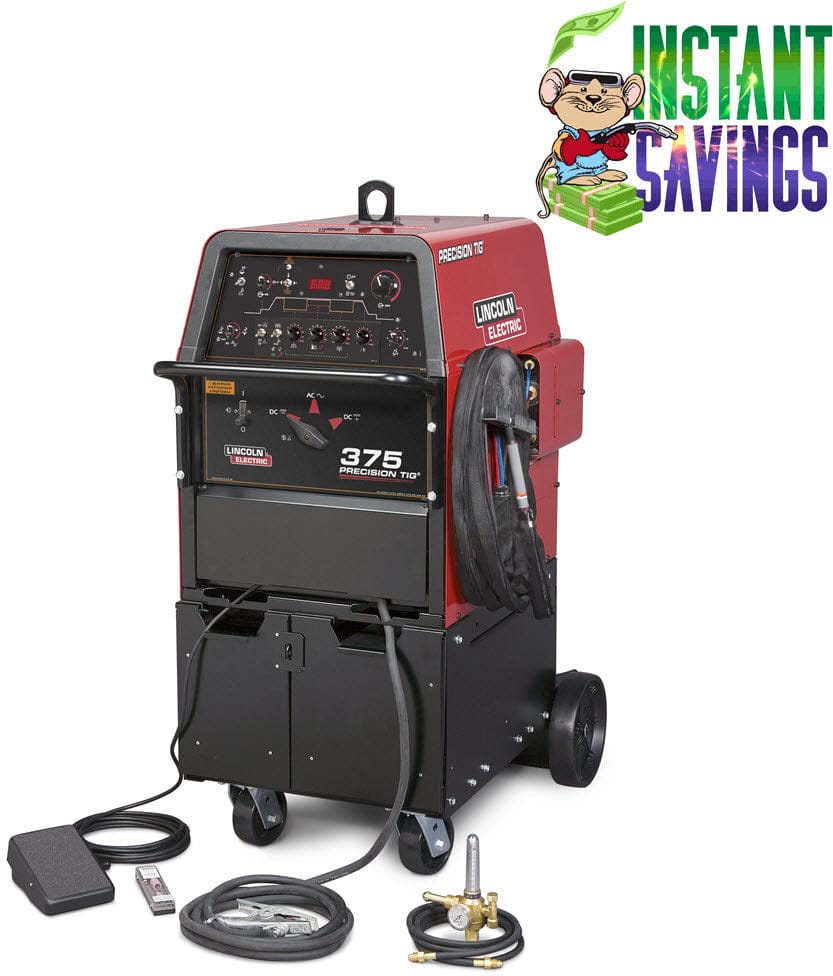

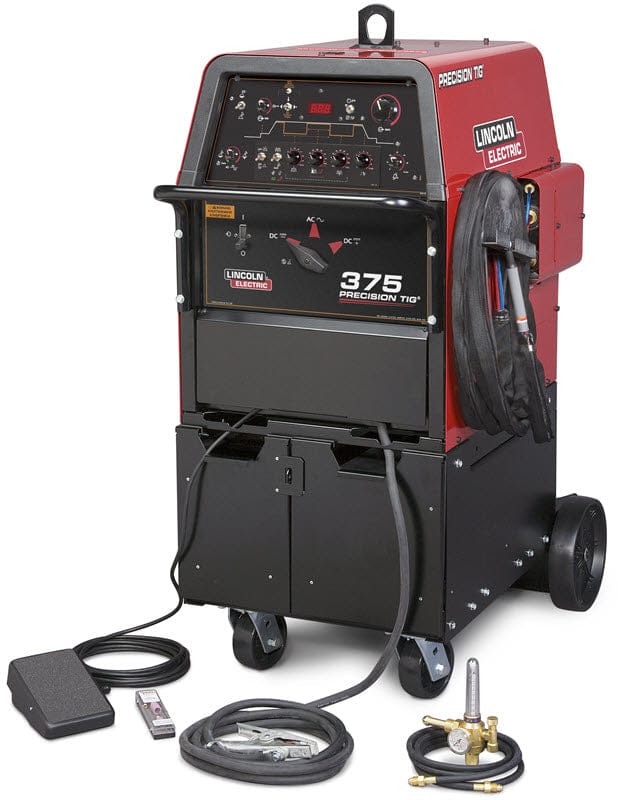

Comes complete with

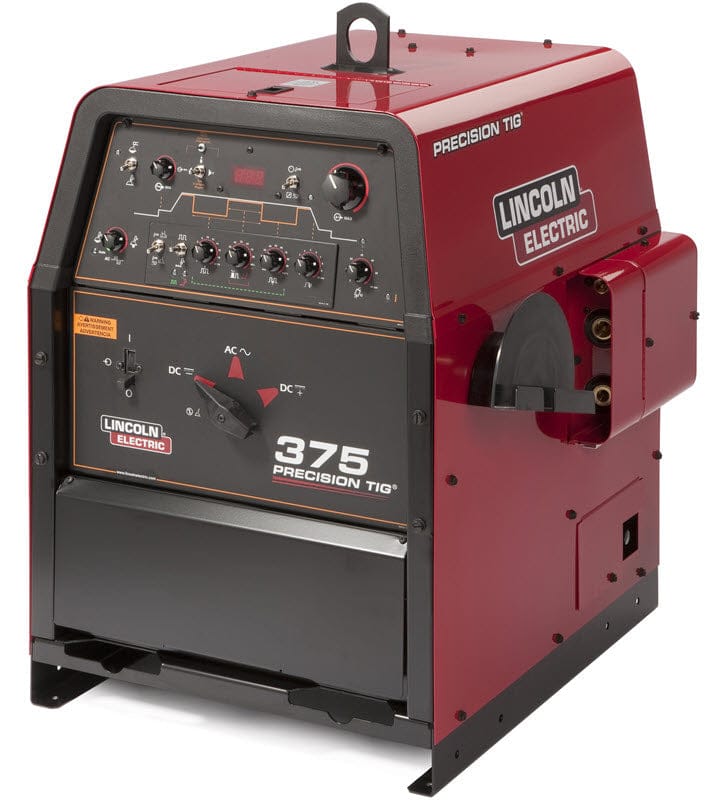

Precision TIG® 375 TIG Welder (208 230 460)

Torch Parts Storage Compartment

Torch Hanger

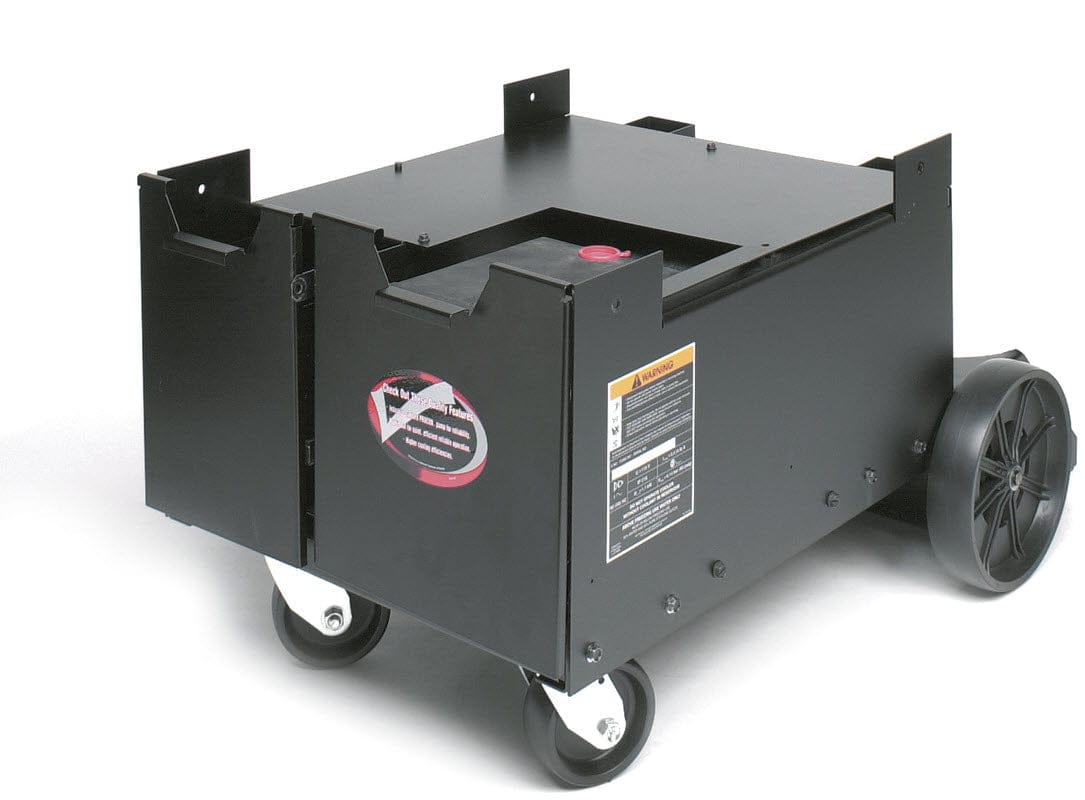

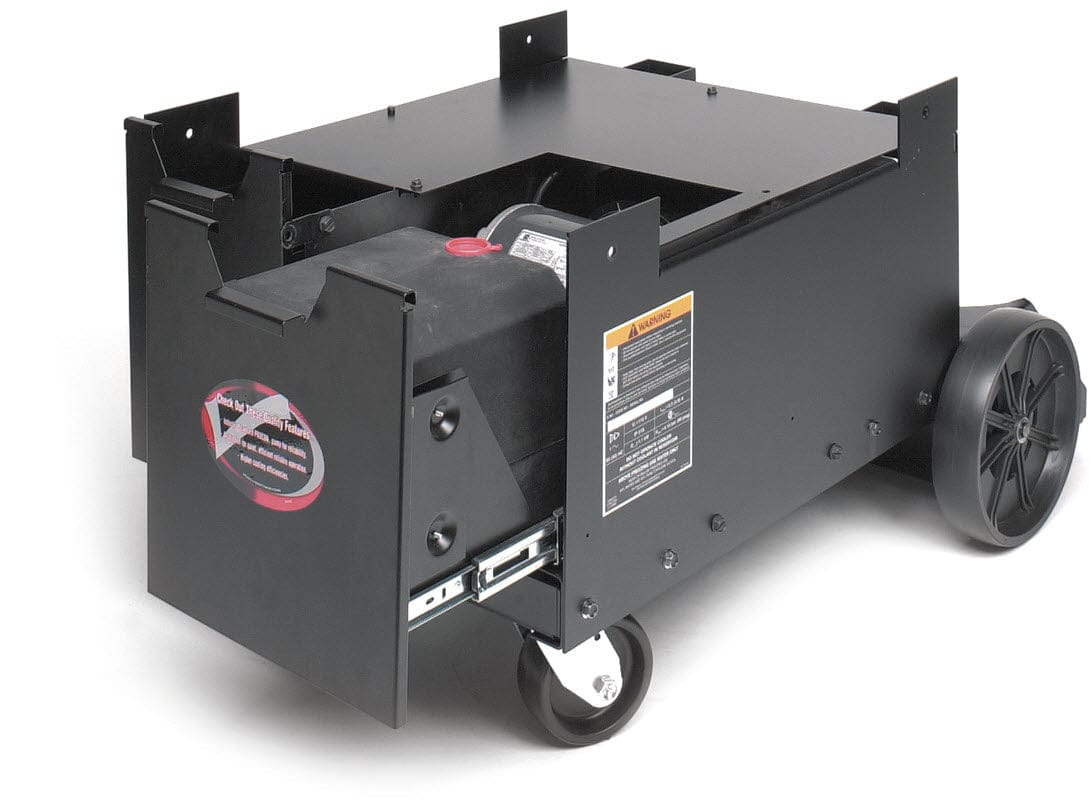

Under-Cooler Cart Water Cooler (K1828-1)

Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870)

Harris Gas Regulator/Flowmeter and 10 ft. (3.0 m) Hose Kit (3100211)

PTW-20 250 amp water cooled TIG torch w/ 25 ft. (7.6 m) cable (K1784-4)

Zippered Torch Cover for TIG Torch with 25 (7.6m) Cable Assembly (K918-2)

Spare Parts Kit for PTW-20 Series TIG torches.
