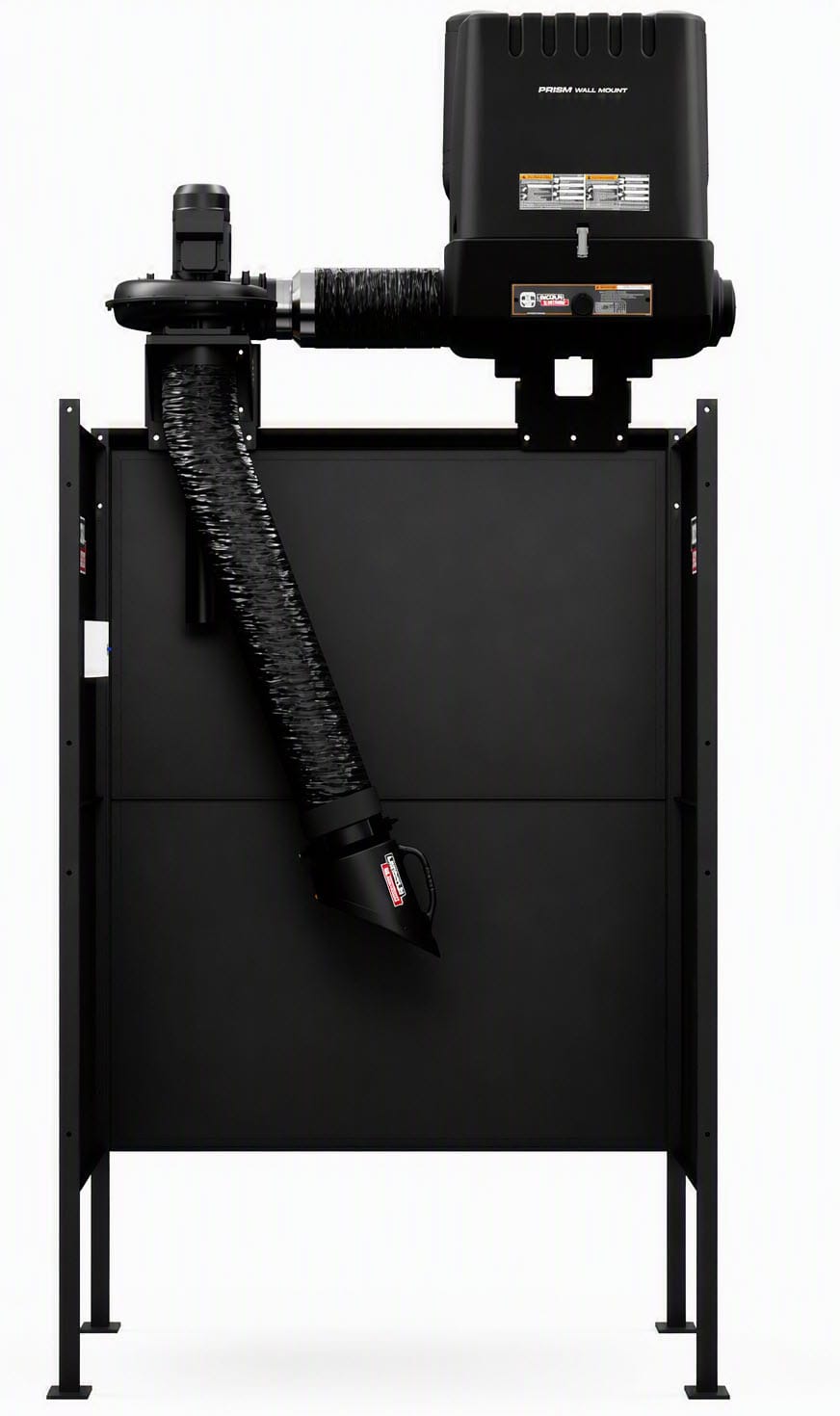

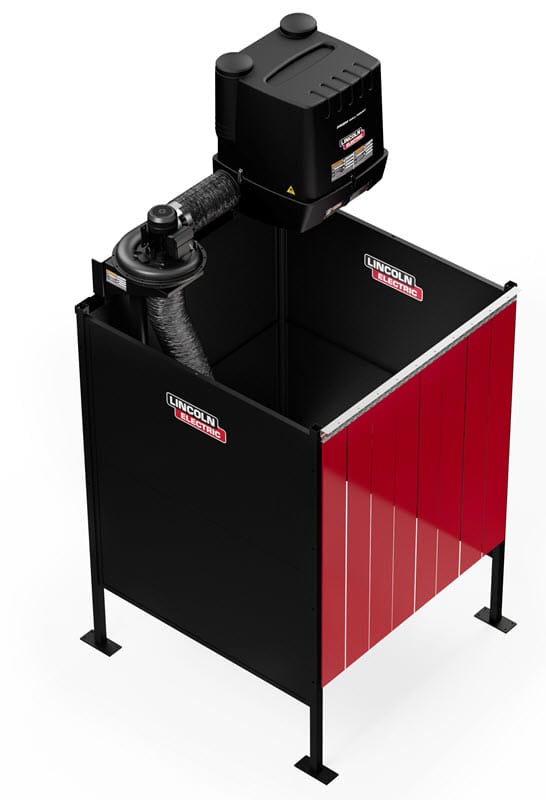

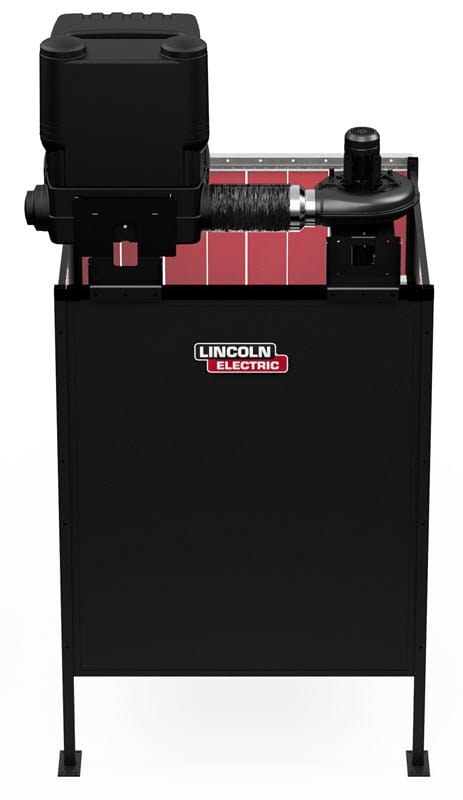

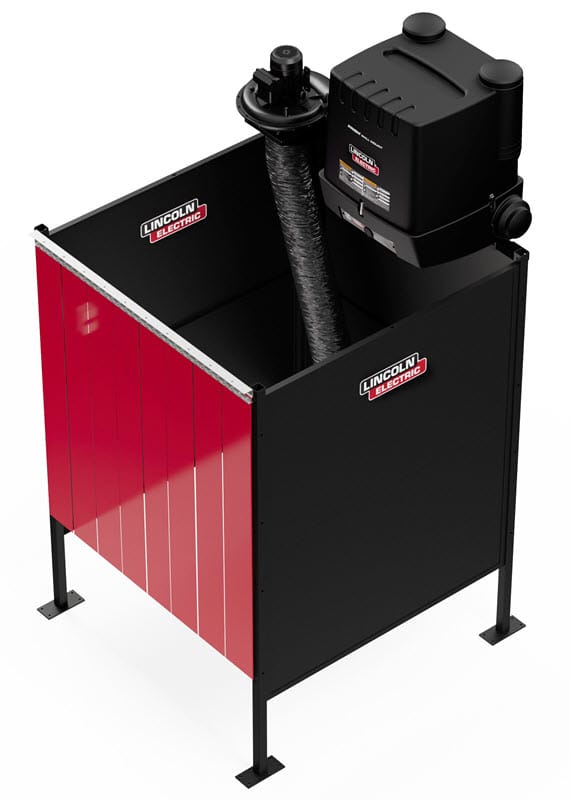

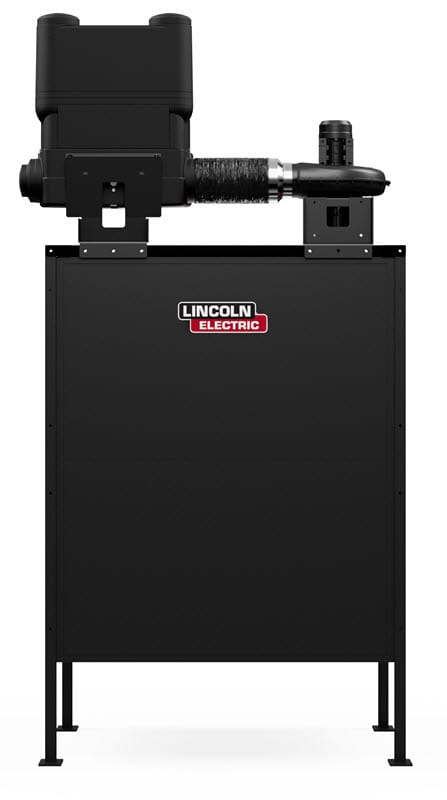

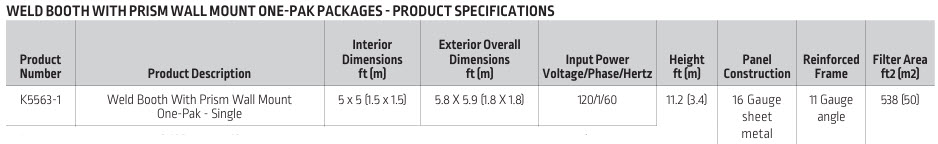

Lincoln® Prism® 5 ft. X 5 ft. Single Fume Extraction Weld Booth One-Pak® K5563-1
Genuine Lincoln® K5563-1 Prism® Fume Extraction Weld Booth One-Pak® is a complete 5' X 5' welding booth and Single-Phase, 120 volt panel-mounted welding fume extractor package. The three-sided weld booth features 16 gauge solid steel panels with 11 gauge reinforced frames. A K5249-2 welding curtain kit consisting of a red-orange strip curtain and mounting hardware is also included. The booth's modular design means additional work stations can be added on as your shop expands.
The panel-mounted Prism welding fume extractor features a disposable MERV 14 cellulose filter that captures up to 84% of airborne contaminants from 0.3 to 1 micron in size. Weld fume is captured at the source through an included fume extraction arm. The fume extraction unit mounts on the back panel of your weld booth with provided bracket and hardware. The welding fume extractor's vacuum motor operates on 1-phase, 120 volt input power.
Process
Welding Fume Extraction
Applications
Welding Training and Education Facilities
Fabrication/Production Environments
Repair and Maintenance Stations
Features
Robust design
Heavy duty steel construction.
5 x 5 ft. Layout
Larger-sized booths have enough floor space to comfortably fit both student and instructor.
Powder-coated anti-reflective black finish paint
Is durable and reduces arc reflection.
Booth walls
Have an open space of 18 in. at the bottom of the weld booth for air circulation and safety. (Exceeds AWS EG2.0:2006 Recommendation of 12 in.)

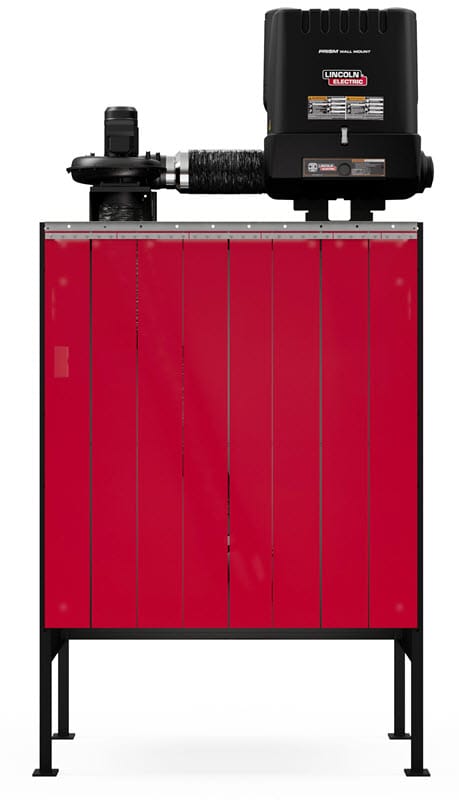

Booth Curtain
Overlapping red-orange strip curtains cover entire entrance to booth and help to protect other students and workers from arc flash and sparks. Curtain material compliant with AWS F2.3m-2011.
Telescopic 4-6 ft. Counter-Weight Fume Extraction Arm
Constructed with a balance system for stability, the arms can be placed in a fixed position easily. The 360° rotatable hood can be positioned at the welding arc to quickly capture fumes, while the baffle controls airflow.
Comes with Prism 2400 Fan (120V, 1 Phase, 60 Hz, 1 HP)That has self-cleaning concave blades and provide up to 735 CFM with Prism Flexible Extraction Arm
Comes complete with
3-Panel Weld Booth 5 ft. (1.5 m) Standalone (Side-by-Side Starter)
Arm Mounting Bracket
Prism Wall Mount Bracket
Welding Booth Curtain Kit, 62 in. W x 66 in. H
Prism® Wall Mount Telescopic 4-6 ft. Counter-Weight Fume Arm
Weld Booth, 5 ft. Standalone (Side-by-Side Starter)
Starter Overload Switch for 120V Prism® 2400 1-HP Fan
Prism® Wall Mount w/MERV 14 Filter Single Arm Base Unit
Filter; MERV 14; Prism® Mobile & Wall Mount (non-Cleaning)
Prism® 2400 1-HP Fan (120V)

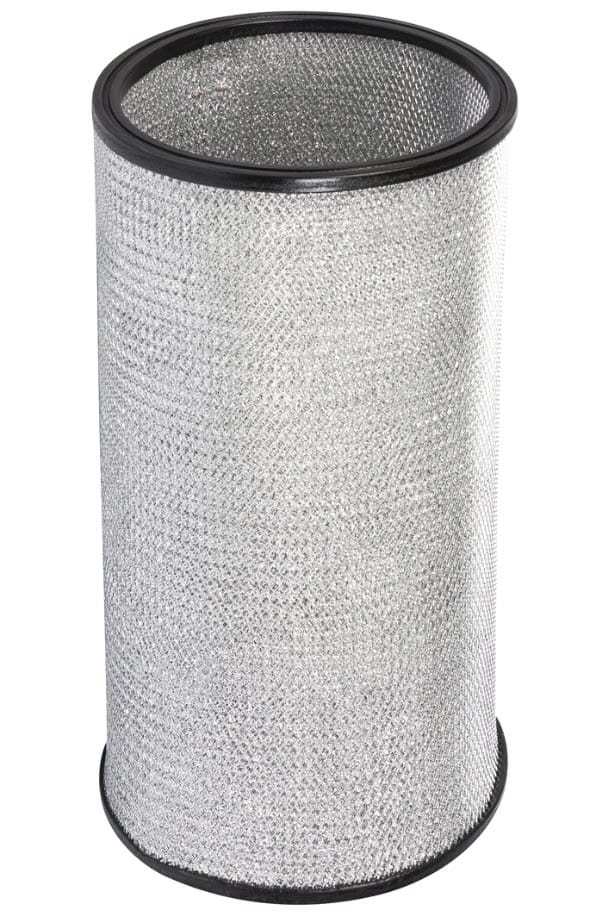

Pre-Filter; Prism® Mobile & Prism® Wall Mount (non-Cleaning)
