Lincoln® Prism® Arc Sensor and Lamp Kit - 115 Volt, 2400 1 HP Fan K1669-4

Genuine Lincoln® K1669-4 Prism® Arc Sensor and Lamp Kit for your 120 volt Prism wall mount fume extractor. The arc sensor/lamp kit mounts inside your fume extraction arm's hood. When the welding arc is struck, the arc sensor automatically turns the vacuum motor on. Fifty seconds after the welding arc is extinguished, the arc sensor puts the fume extractor in stand-by mode, saving electricity and reducing noise.

The LED lamp provides additional lighting when your welding application requires more visibility. A seperate lamp switch is included to allow the lamp to operate independently of the arc sensor. The K1669-4 Arc Sensor and Lamp Kit is designed for use with Lincoln Prism wall mounted fume extractors equipped with a Prism 2400 1 HP, 115/120 volt single-phase fan motor.

Features
  • The arc sensor automatically
    Turns the fan on when sensing the arc flash, and turns off 50 seconds after the arc extinguishes
    The arc sensor is mounted in the lamp housing
  • Hood mounted switches
    Turn the unit on and off independently of the arc sensor

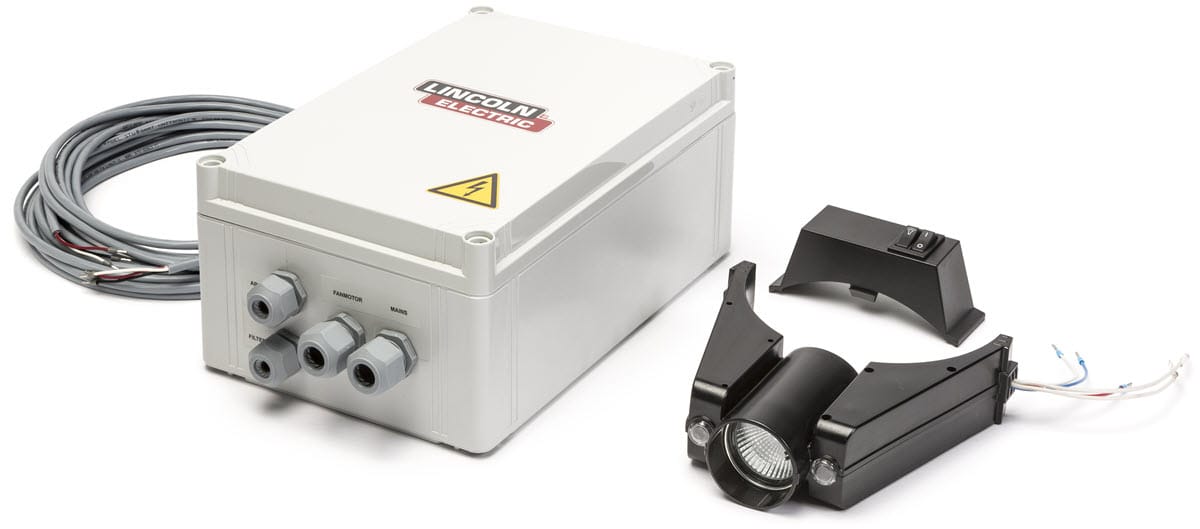

  • Kit includes
    Lamp housing with arc sensor
    Control box
    Interconnect wire
    Hood mounted lamp/fan switch
    Instruction manual
