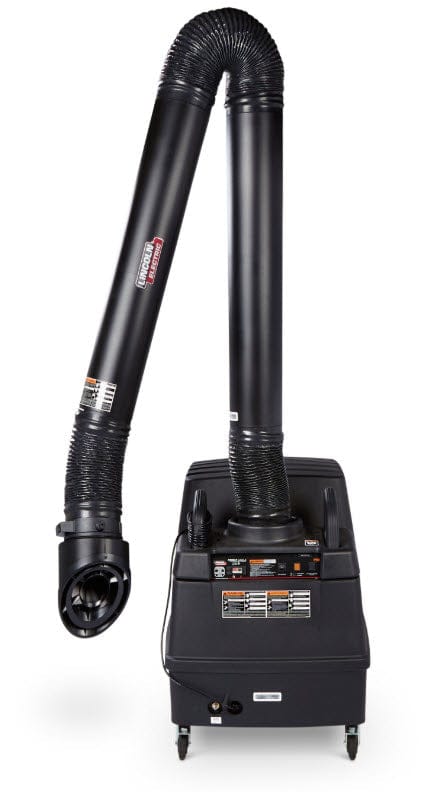

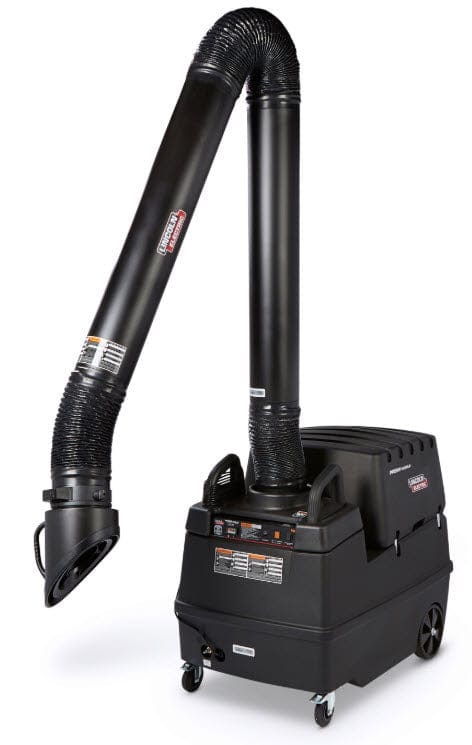

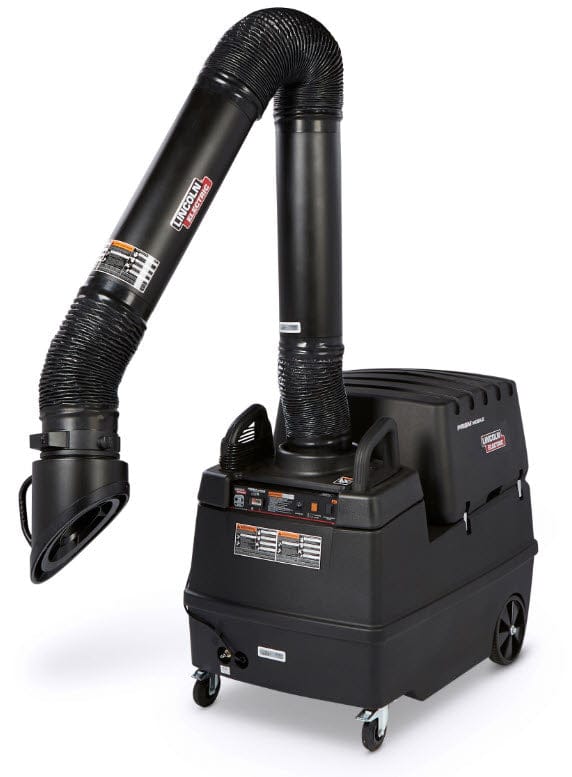

Lincoln® Prism® Mobile Welding Fume Extractor - Mechanized Cleaning MERV 14 SL One-Pak®
Genuine Lincoln® Prism® Mobile Welding Fume Extractor with Mechanized Cleaning MERV 14 SL One-Pak® comes complete with arc sensor, lamp kit, extraction arm and MERV 14 filter. Both the arc sensor and lamp kit are installed into the extraction arm. When the welding arc is struck, the arc sensor automatically turns the vacuum motor on. Once the arc is extinguished, the arc sensor puts the Prism Mobile in stand-by mode, saving electricity and reducing noise. Extraction arms are available in 10 ft. (K4384-2) or 13 ft. (K4384-4) lengths.
The RotaPulse™ mechanized cleaning system requires compressed air and automatically removes accumulated particulates from your main filter; reducing downtime and extending your main filter's life. This low vacuum welding fume extraction system captures welding fumes at the source. With a footprint of just 40 in. x 32 in. x 48 in., the Prism Mobile is designed to move around your weld shop quickly and conveniently.
The MERV 14 main filter captures up to 84% of airborne contaminants from 0.3 to 1 micron in size. The Prism Mobile fume extractor is excellent for manufacturing and fabrication applications where MIG, TIG, Stick or Flux-Cored welding fumes are present. It comes complete with a color-coded filter status indicator that clearly displays remaining filter life. This Prism Mobile runs on 120 volt, single-phase, 60 Hz input power.
Process
Welding Fume Extraction
Applications
Industrial Applications
Contractors
Maintenance and Repair Operations
Intermittent welding
Features
Arc Sensor
Automatically turns vacuum motor on/off when arc is struck or extinguished.
Saves electricity and reduces shop noise
Lamp Kit
Provides additional light to the work area.
RotaPulse™
Automatic filter cleaning system reduces maintenance and downtime.
Extends main filter life.
Generous Airflow
735 CFM with flexible 10 & 13 Ft. extraction arm.
CFM level is dependent upon arm length; fan type and system maintenance.
Internal spark arrestor
Functions as a pre-filter for larger sized particulate.
Prevents sparks from reaching the filter.
Optimal motion and reach for work area
Choose from a variety of extraction arm models or select a hose/hood set.
Filter status indicator
Visual guide to remaining filter life.
Comes complete with
Prism® Mobile welding fume extractor
RotaPulse™ automatic filter cleaning system (requires compressed air)
10 ft. or 13 ft. fume extraction arm
Arc sensor
Lamp kit
MERV 14 filter
Pre-filter/spark arrestor
19 ft. (6 m) input power cord
