Lincoln Prism Standalone Fume Exhaust Booth - 230V, 3 Phase One-Pak K5664-1

Lincoln® Prism® Standalone Fume Exhaust Booth (Side-by-Side Starter) - 230 Volt, 3-Phase One-Pak® K5664-1

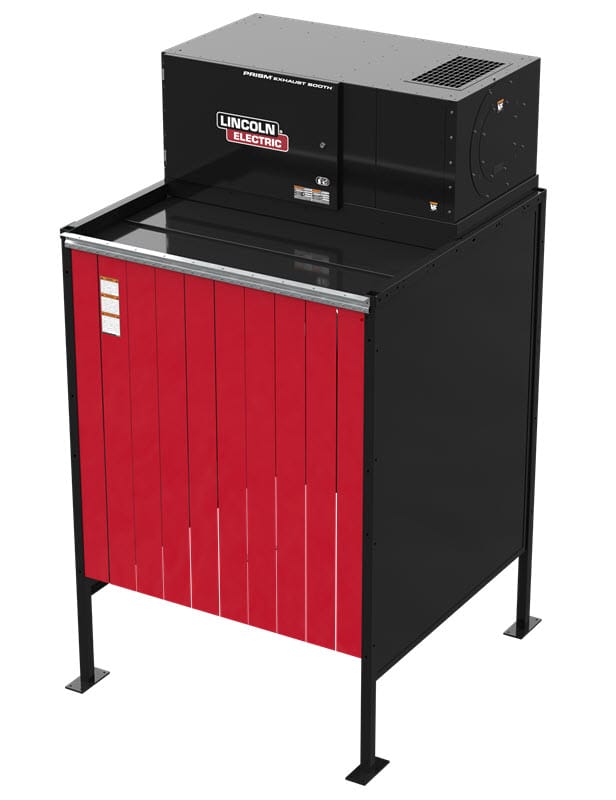

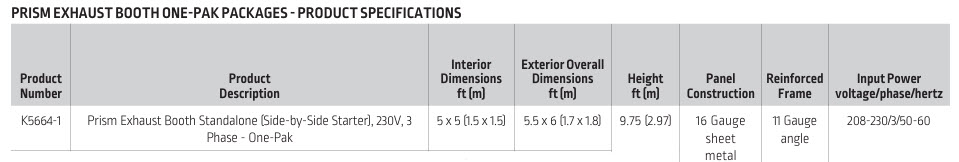

Genuine Lincoln® K5664-1 Prism® Exhaust Booth One-Pak® is a complete 5' X 5' welding booth and 3-Phase, 230 volt top-mounted welding fume extractor package. The three-sided weld booth features 16 gauge solid steel panels with 11 gauge reinforced frames. A K5249-2 welding curtain kit consisting of a red-orange strip curtain and mounting hardware is also included. The booth's modular design means additional work stations can be added on as your shop expands.

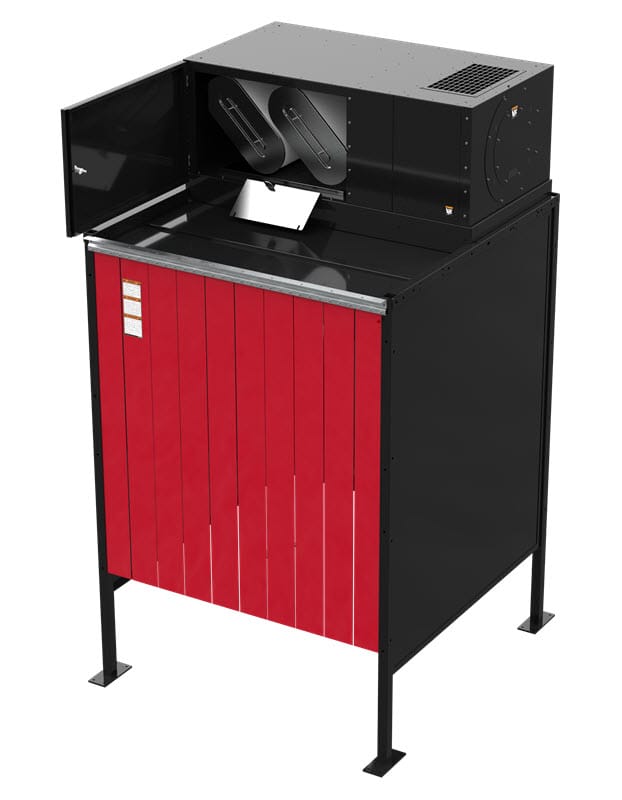

The top-mounted welding fume extractor features two disposable MERV 16 High Efficiency Nano Fiber filters that capture up to 95% of airborne contaminants from 0.3 to 1 micron in size. Weld fume is captured both at the source, through a fume extraction arm, and through the vent hood itself. The fume extraction unit sits right on top of your welding booth and requires no special installation. It comes complete with an LED light kit to provide extra lighting in the work area. The welding fume extractor's vacuum motor operates on 3-phase, 230 volt input power.

Process

Welding Fume Extraction



Applications
Welding Training and Education Facilities
Fabrication/Production Environments
Repair and Maintenance Stations

Features

Plug-and-Play Format
Drop-in welding booth with fume extraction designed for small to medium schools and shops.

Duct-Free Design
No ductwork required. Simply provide power to the unit.

Double Coverage
Captures weld fume in two key locations – near the fume source with the fume extraction arm and through the vent hood.

Optimized Air Control
Easily adjust the airflow rate and balance between the arm and hood extraction points.

Versatile Configurations

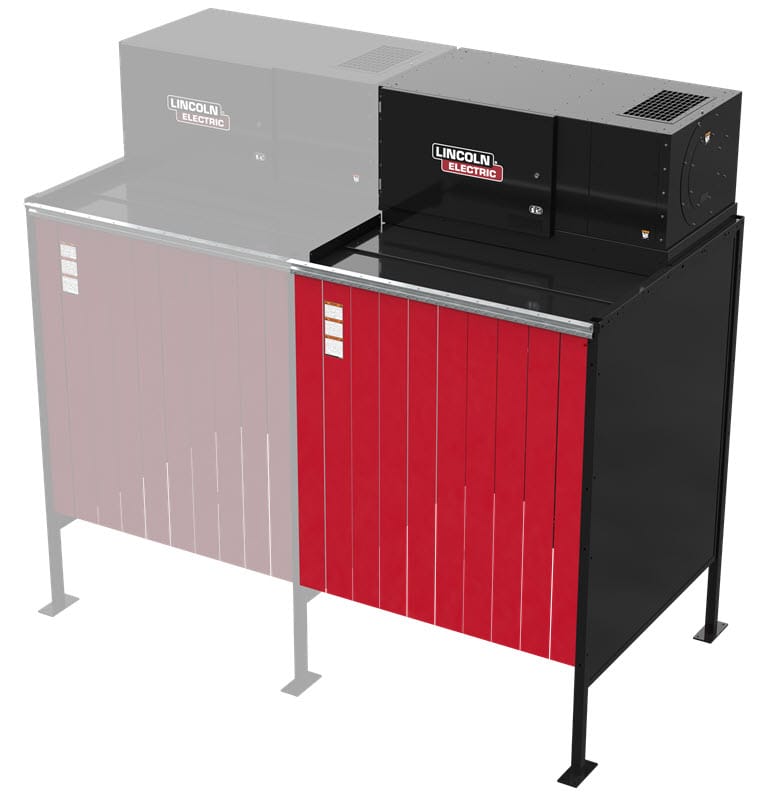

Booths can be ordered in standalone, side-by-side and back-to-back formats.



Comes complete with

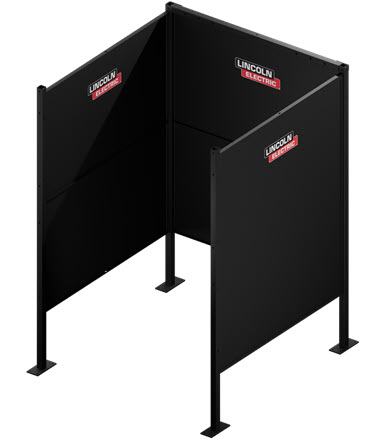

3-Panel Weld Booth 5 ft. (1.5 m) Standalone (Side-by-Side Starter)

Top-Mounted Prism® Fume Extraction with two MERV 16 high efficiency filters

Telescopic Counter-Weight Fume Extraction Arm

Weld Curtain

Booth Lighting

Extraction Unit Control Panel
