Lincoln® Prism® Wall Mount Welding Fume Extractor - Dual Arm with MERV 14 Filter, Arc Sensor/Lamp Kit One-Pak® K4261
Genuine Lincoln® K4261 Prism® Wall Mount Welding Fume Extractor Dual Arm MERV 14 SL One-Pak® comes complete with two fume extraction arms, MERV 14 filter and two arc sensor/lamp kits. This low vacuum welding fume extraction system captures welding fumes at the source. With a base unit footprint of just 36 in. x 22 in. x 38 in., the Prism Wall Mount is designed for simple installation on your shop wall or on top of your Lincoln welding booth. The MERV 14 main filter captures up to 84% of airborne contaminants from 0.3 to 1 micron in size. The Prism Wall Mount fume extractor is excellent for manufacturing and fabrication applications where MIG, TIG, Stick or Flux-Cored welding fumes are present. It comes complete with a color-coded filter status indicator that clearly displays remaining filter life. This Prism Wall Mount runs on 120 volt, single-phase, 60 Hz input power.

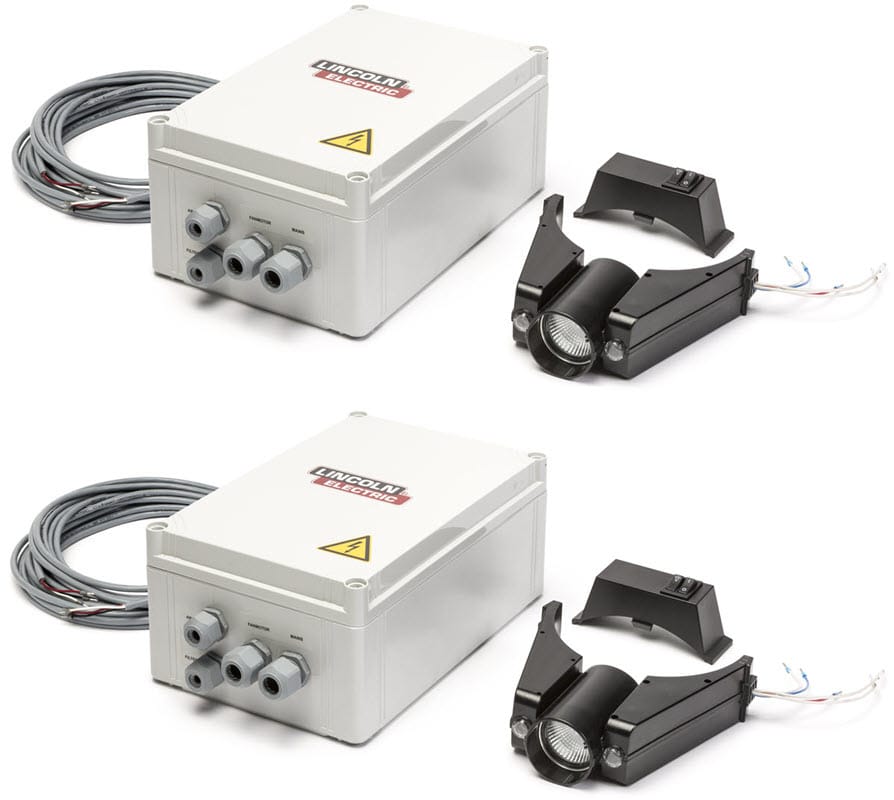

The two arc sensor/lamp kits come installed inside your fume extraction arms' hoods. When the welding arc is struck, the arc sensors automatically turn the vacuum motor on. Fifty seconds after the welding arc is extinguished, the arc sensors put the fume extractor in stand-by mode, saving electricity and reducing noise. The LED lamps provide additional lighting when your welding application requires more visibility. Seperate lamp switches are included to allow the lamps to operate independently of the arc sensor.

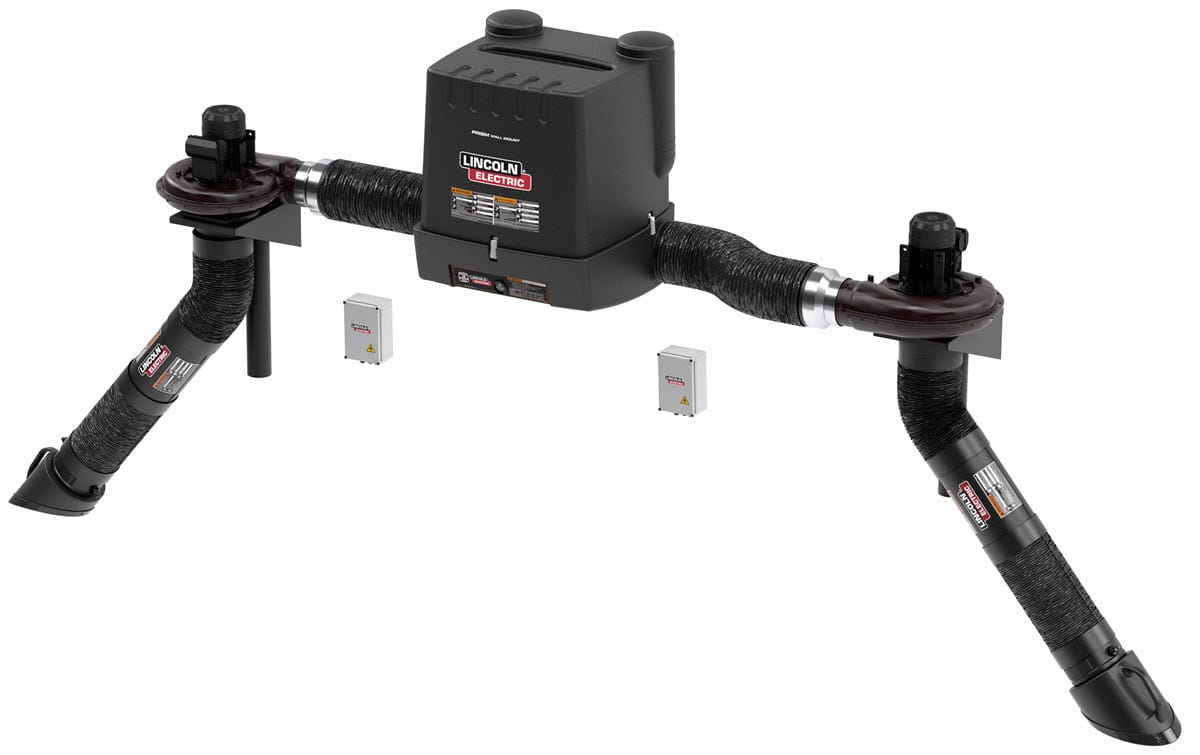

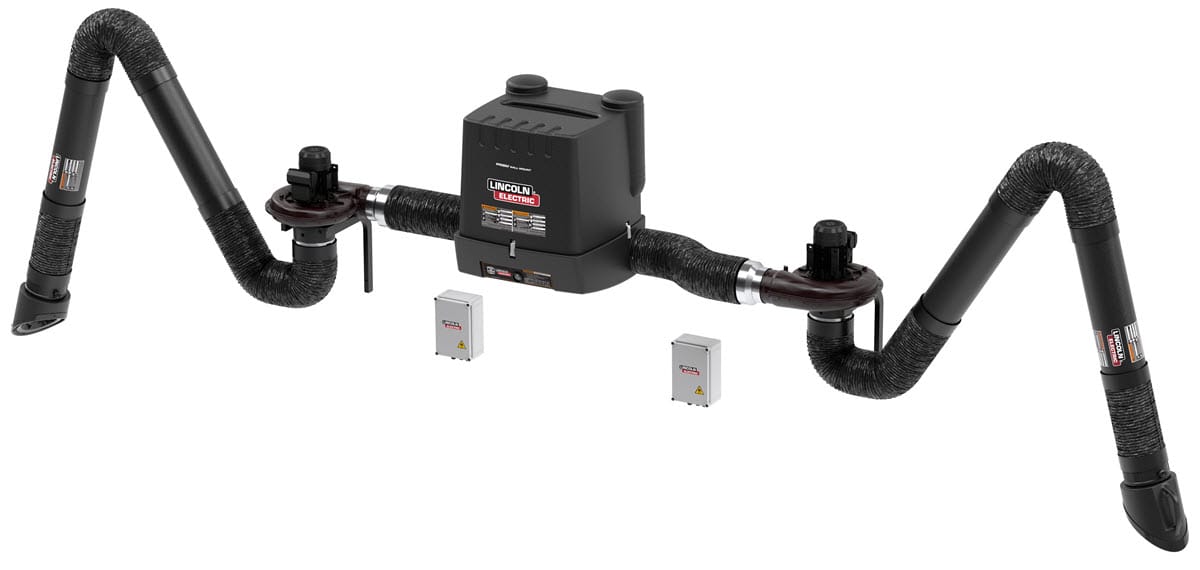

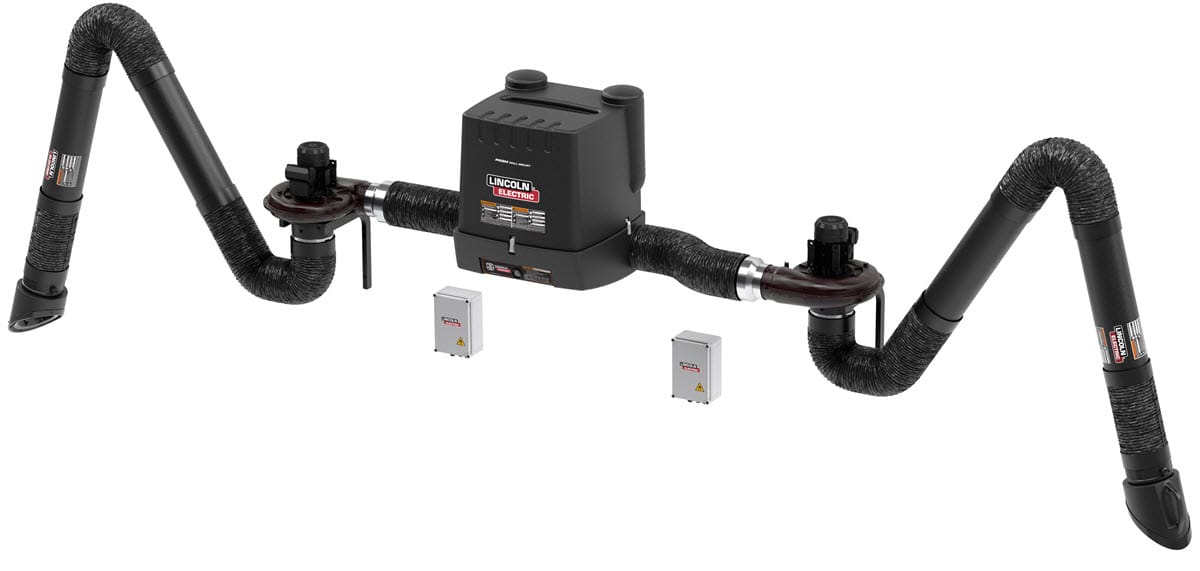

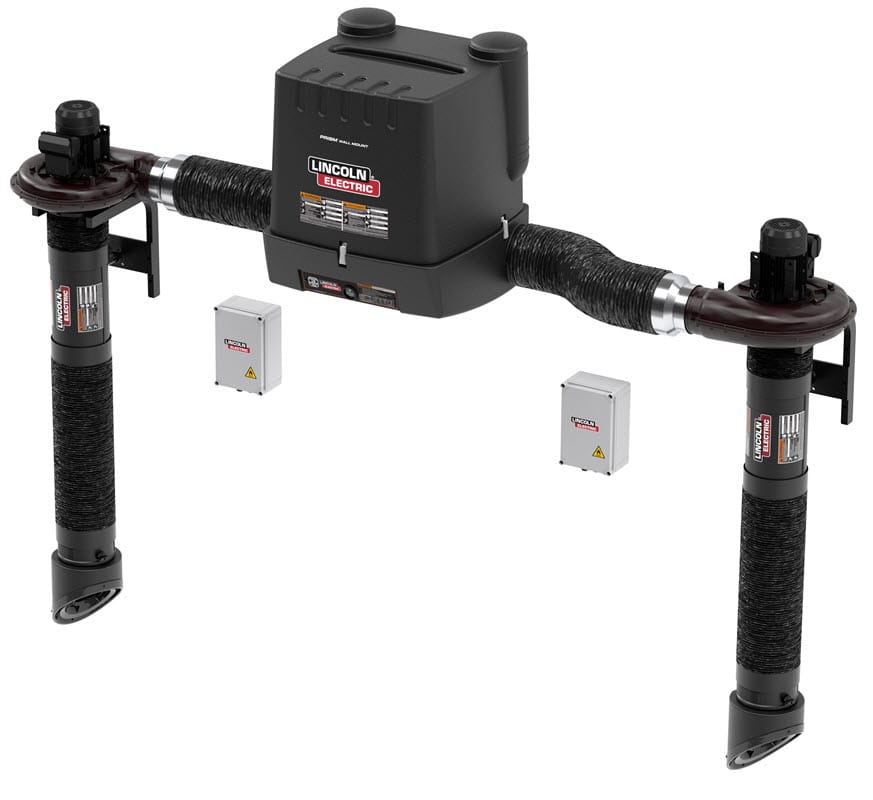

Extraction arms are available in 10 ft., 13 ft., Telescoping 4-6 ft. or Telescoping 5-8 ft. lengths.
Process
Welding Fume Extraction
Applications
Industrial Applications
Contractors
Maintenance and Repair Operations
Intermittent welding
Features
Dual Arm Configuration
Flexible 10 ft., 13 ft., Telescoping 4-6 ft. or Telescoping 5-8 ft. Extraction Arm Options
(Telescoping arms include counter weights)
Generous Airflow
Comes with Prism 2400 Fan (115V, 1 Phase, 60 Hz, 1 HP) that have self-cleaning concave blades and provide a 735 CFM with Prism Extraction Arm
Disposable MERV 14 Filter
3D pleated filter structure with 538 ft² (50 m²) capacity
Spark Arrestor
Functions as a pre-filter for larger-sized particulate
Arc sensors
Automatically turn the fan on when sensing the arc flash, and turn off 50 seconds after the arc extinguishes
The arc sensors are mounted in the lamp housing
Hood mounted switches
Turn the unit on and off independently of the arc sensors
Comes complete with
Prism® Wall Mount welding fume extractor
MERV 14 filter
Pre-filter/spark arrestor
Two Arc Sensor/Lamp Kits (installed)
Two 10 ft., 13 ft., Telescoping 4-6 ft. or Telescoping 5-8 ft. extraction arm
Two Prism® 2400 1-HP Fans (120V)
Input power cord
