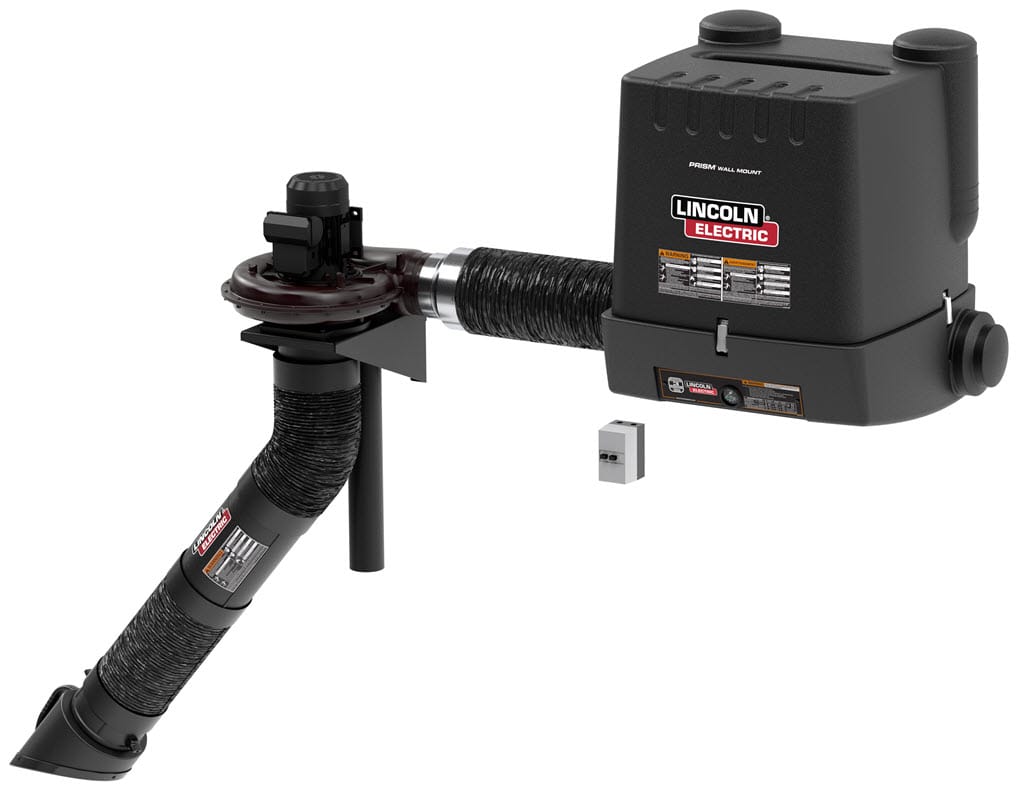

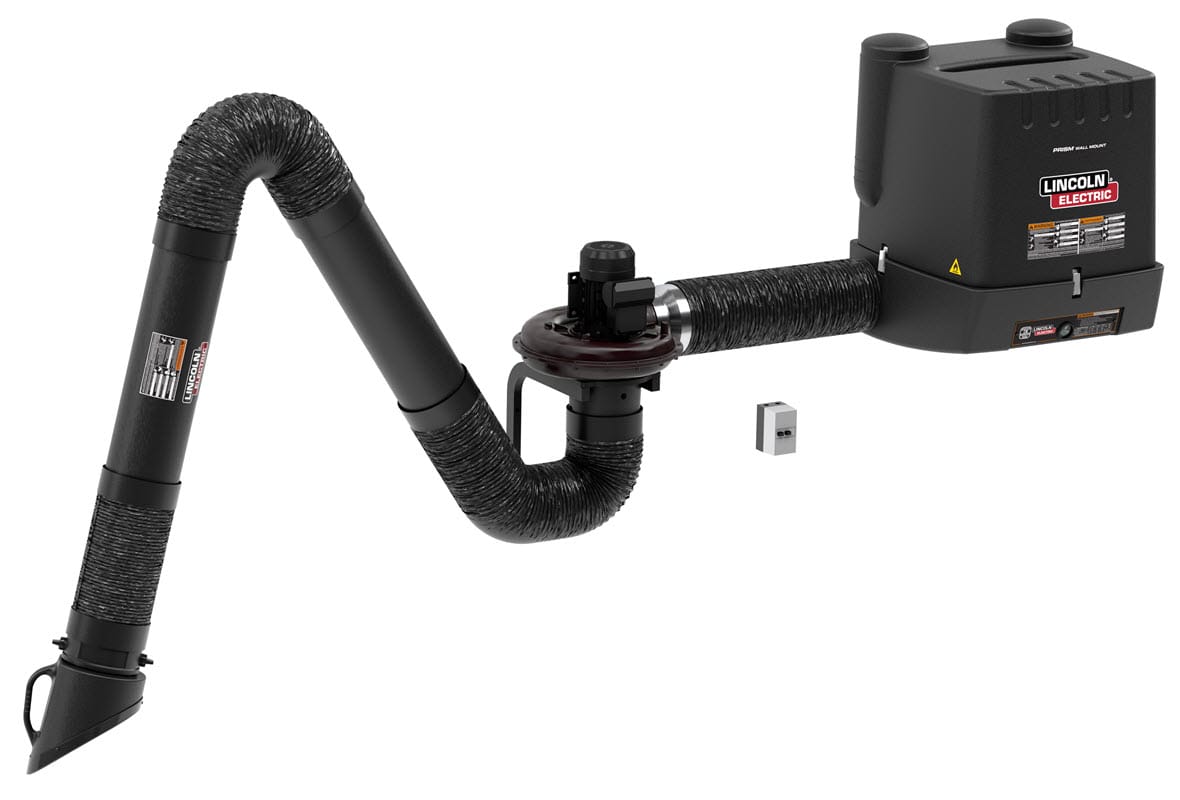

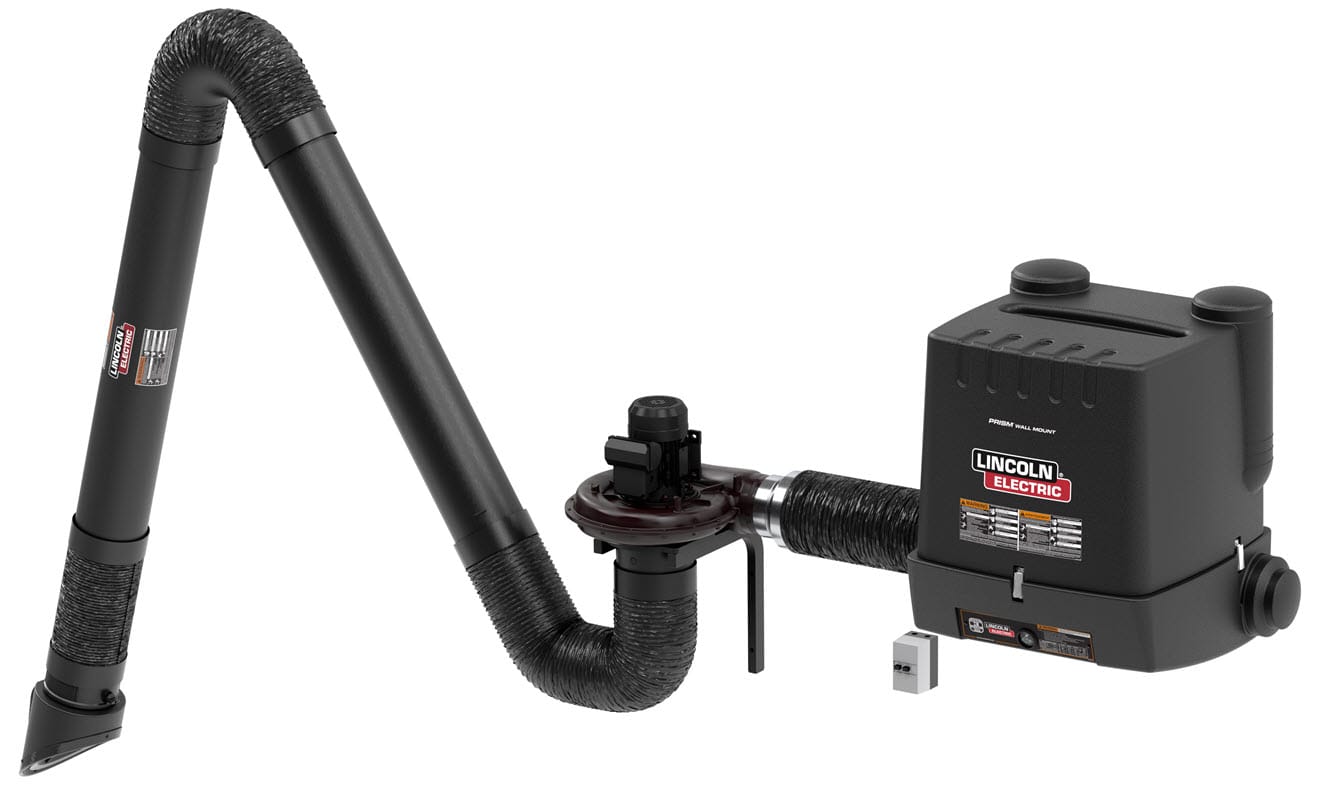

Lincoln® Prism® Wall Mount Welding Fume Extractor - Single Arm with MERV 14 Filter K4261
Genuine Lincoln® K4261 Prism® Wall Mount Welding Fume Extractor Single Arm MERV 14 One-Pak® comes complete with a fume extraction arm and MERV 14 filter. This low vacuum welding fume extraction system captures welding fumes at the source. With a base unit footprint of just 36 in. x 22 in. x 38 in., the Prism Wall Mount is designed to easily mount on your shop wall or on top of your Lincoln welding booth. The MERV 14 main filter captures up to 84% of airborne contaminants from 0.3 to 1 micron in size. The Prism Mobile fume extractor is excellent for manufacturing and fabrication applications where MIG, TIG, Stick or Flux-Cored welding fumes are present. It comes complete with a color-coded filter status indicator that clearly displays remaining filter life. This Prism Mobile runs on 120 volt, single-phase, 60 Hz input power.

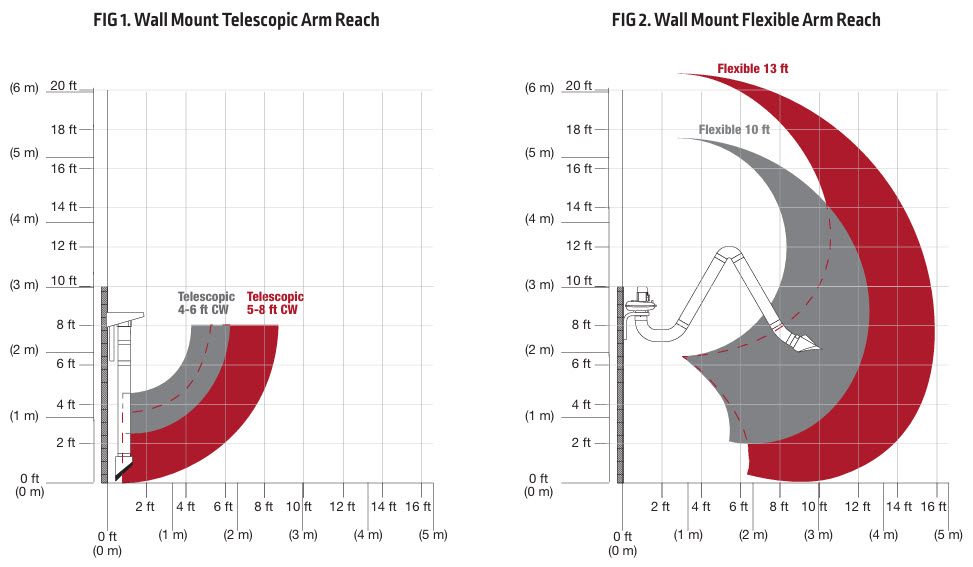

Extraction arms are available in 10 ft., 13 ft., Telescoping 4-6 ft. or Telescoping 5-8 ft. lengths.
Process
Welding Fume Extraction
Applications
Industrial Applications
Contractors
Maintenance and Repair Operations
Intermittent welding
Features
Single Arm Configuration
Flexible 10 ft., 13 ft., Telescoping 4-6 ft. or Telescoping 5-8 ft. Extraction Arm Options
(Telescoping arms include counter weights)
Generous Airflow
Comes with Prism 2400 Fan (115V, 1 Phase, 60 Hz, 1 HP) that have self-cleaning concave blades and provide a 735 CFM with Prism Extraction Arm
Disposable MERV 14 Filter
3D pleated filter structure with 538 ft² (50 m²) capacity
Spark Arrestor
Functions as a pre-filter for larger-sized particulate
Starter/ Overload Switch
Provides simple on/off operation
Comes complete with
Prism® Wall Mount welding fume extractor
MERV 14 filter
Pre-filter/spark arrestor
Starter/Overload switch
10 ft., 13 ft., Telescoping 4-6 ft. or Telescoping 5-8 ft. extraction arm
Input power cord
