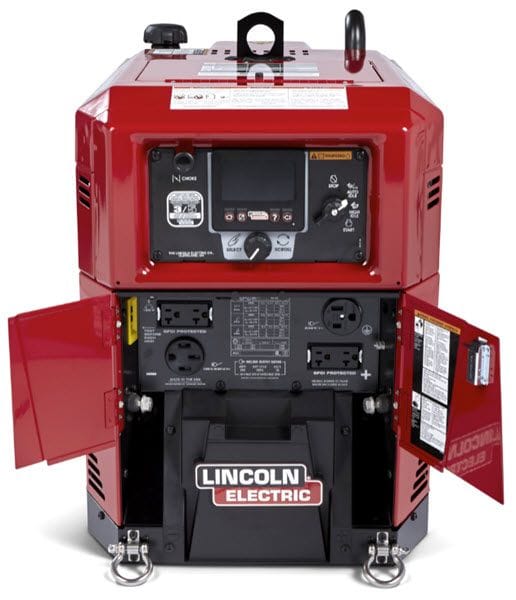

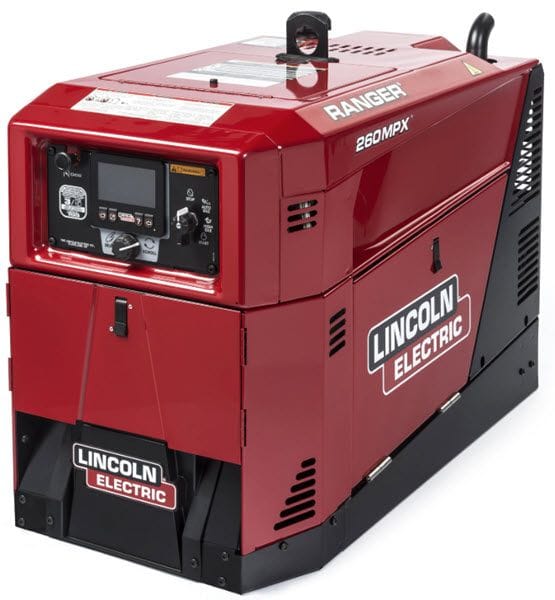

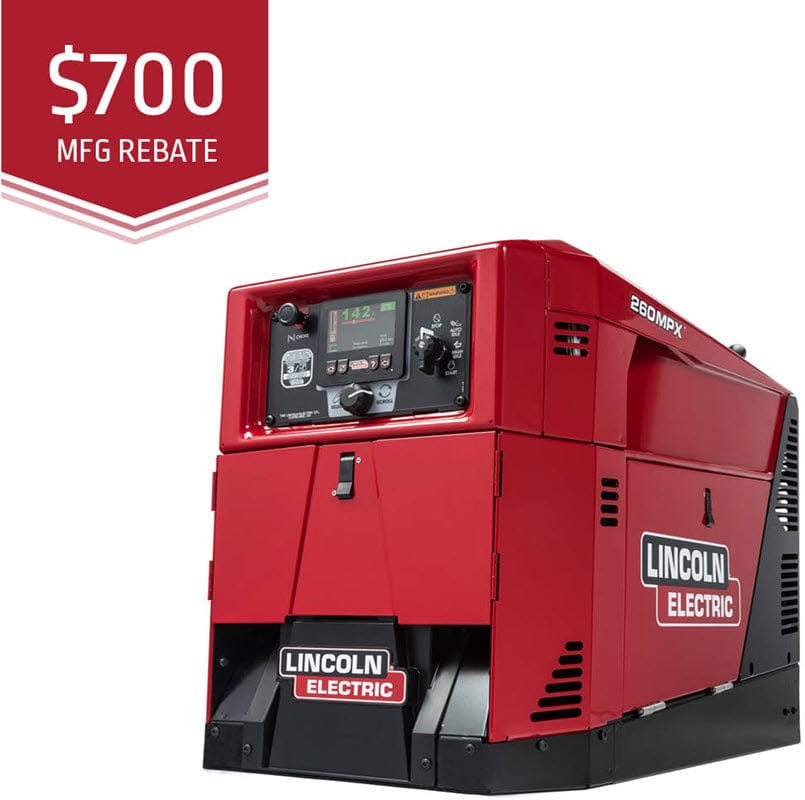

Lincoln® Ranger® 260MPX™ Engine Driven Welder K3458-1

The Lincoln® Ranger® 260MPX™ is a 260 amp DC engine driven welder and 10,500 watt AC generator. It is capable of Stick, DC touch-start TIG, plus MIG and Flux-Cored welding with OPTIONAL LN-25X® series voltage sensing wire feeder. Built-in CrossLinc® technology means the Ranger 260MPX communicates directly with your LN-25X wire feeder through your welding leads for full remote amperage and voltage control without the use of a separate remote-control cable.

The Ranger 260MPX produces up to 10,500 peak watts of single-phase AC auxiliary power. Its compact size is up to 20% smaller than similar welders in its class, leaving more room for tools and equipment in your truck bed. The Kohler® CH730 two-cylinder gasoline engine produces 25 horsepower at 3,600 RPM and yet is up to 60% quieter than other welders in its class.



Processes
  • Stick (SMAW)
  • MIG (GMAW)
  • Flux-cored (FCAW)
  • DC TIG (GTAW)

    Applications
    Construction
    Maintenance & Repair
    Service Truck

    Features:
  • Smaller Size -
    Up to 20% smaller footprint than other machines in its class
    Up to 25% lighter making it easier to maneuver around the job site
    Up to 31% smaller in volume than other machines in its class
  • Quiter Sound
    Up to 60% quieter than other machines in its class
    Engineered to enhance operator comfort and safety

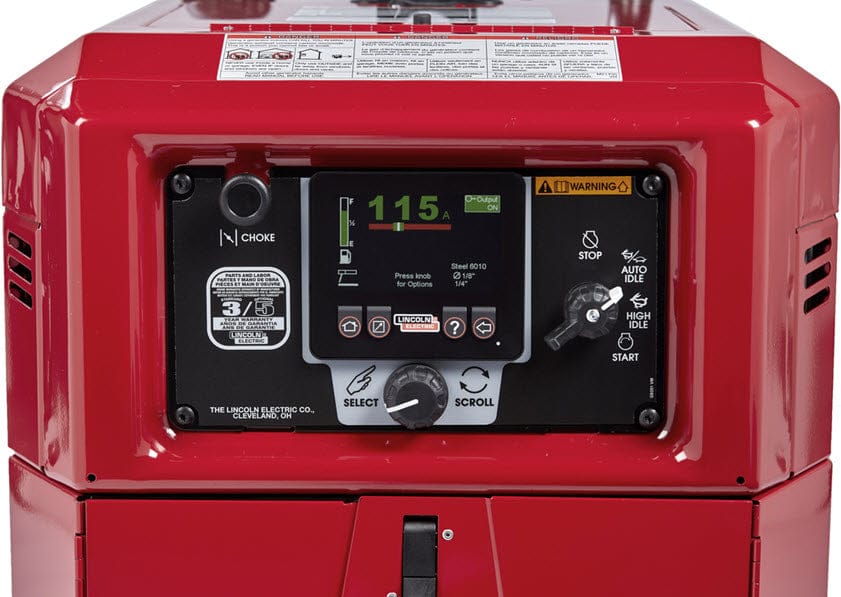

  • Ready.Set.Weld® intuitive push-and-turn digital controls make setup a breeze
  • Maintenance Alerts keep track of engine functions and provide real-time data and notifications when service is required. The maintenance screen clearly displays hours remaining, and settings can be customized to issue alerts at preferred intervals
  • Chopper Technology® feature provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance
  • CrossLinc® remote technology communicates voltage control to the welding power source through one common weld cable
  • HIGH QUALITY OPERATIONS
    Clean AC generator with 9.5 kW of continuous, consistent power to keep tools running without interruptions
    Plenty of power at 260A/26V for 100% duty cycle to weld 5/32 in. 7018 electrode
  • 10,500 Watts Peak Single-Phase AC Generator Power
    Peak for motor starting.
    9,500 watts continuous power for generator, plasma cutter or inverter welder.
    Lights, grinder, power tools.
    Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion

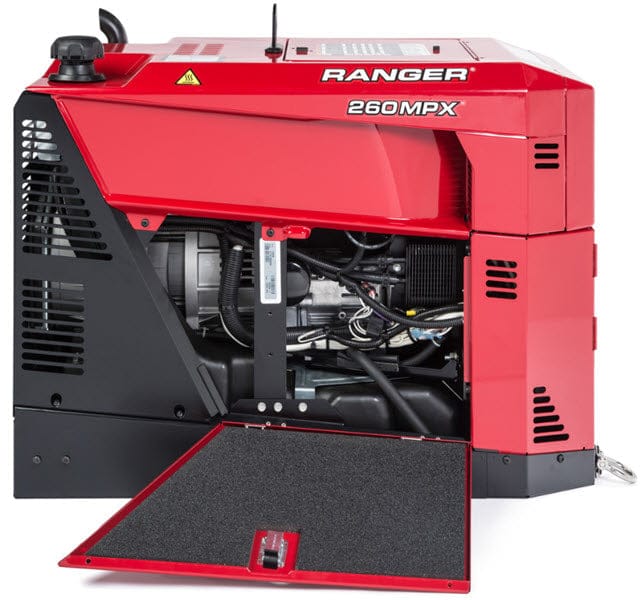

  • 23 HP Kohler® Gasoline Engine
    2 cylinder, 4 cycle overhead valve. air-cooled design.
  • Rugged Reliability
    Welding and AC generator outputs rated at 104F (40C).




    Comes complete with
  • Ranger® 260MPX™ welder with Kohler® OHV Command CH730 gasoline engine.



  • PLUS get a $700 VISA® gift card from Lincoln® with the purchase of this Ranger® 260MPX™ welder. Rebate form must be submitted online HERE no later than 30 days after purchase. While supplies last.

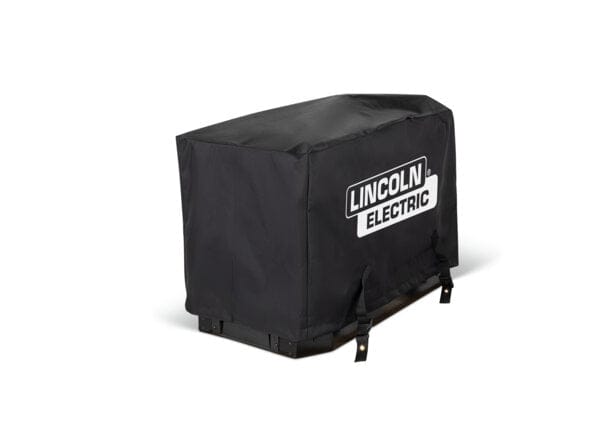

    Lincoln Ballistic Nylon Cover K3588-1

    Lincoln Ballistic Nylon Cover K3588-1

    1.0
    Rated 1.0 out of 5 stars
    1 Review
    Regular price
    $361.05
    Lowest Internet Price
    Mfg Industrial Price: $409.00
    $361.05
    You Save $47.95

    Genuine Lincoln® K3588-1 ballistic nylon cover is made from black nylon that's flame resistant, mildew resistant and water repellent.

    Lincoln LN-25X Wire Feeder & Magnum PRO Curve 300 One Pak K4266-1

    Lincoln LN-25X Wire Feeder & Magnum PRO Curve 300 One Pak K4266-1

    Regular price
    $4,222.00
    Lowest Internet Price
    Mfg Industrial Price: $5,351.00
    $4,222.00
    You Save $1,129.00

    Lincoln® LN-25X® Wire Feeder w/CrossLinc® and Magnum® PRO Curve 300 MIG gun has full remote voltage and amperage control without the use of a remote-control cable.

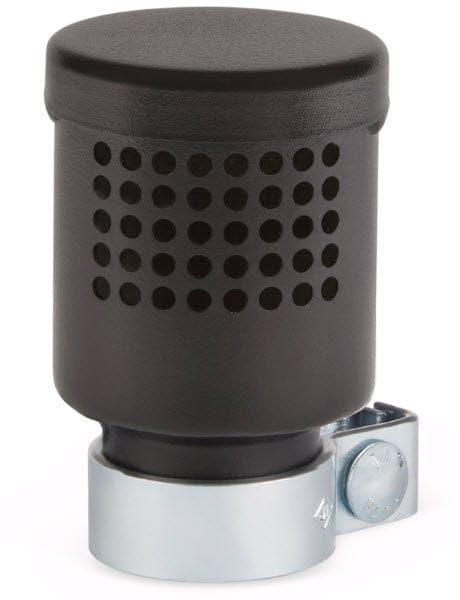

    Lincoln Rotatable Exhaust Kit K4895-1

    Lincoln Rotatable Exhaust Kit K4895-1

    Regular price
    $82.40
    Lowest Internet Price
    Mfg Industrial Price: $93.00
    $82.40
    You Save $10.60

    Genuine Lincoln® Rotatable Exhaust Kit rotates 360 degrees to allow you to direct the exhaust flow of your Lincoln Ranger® MPX series welder.

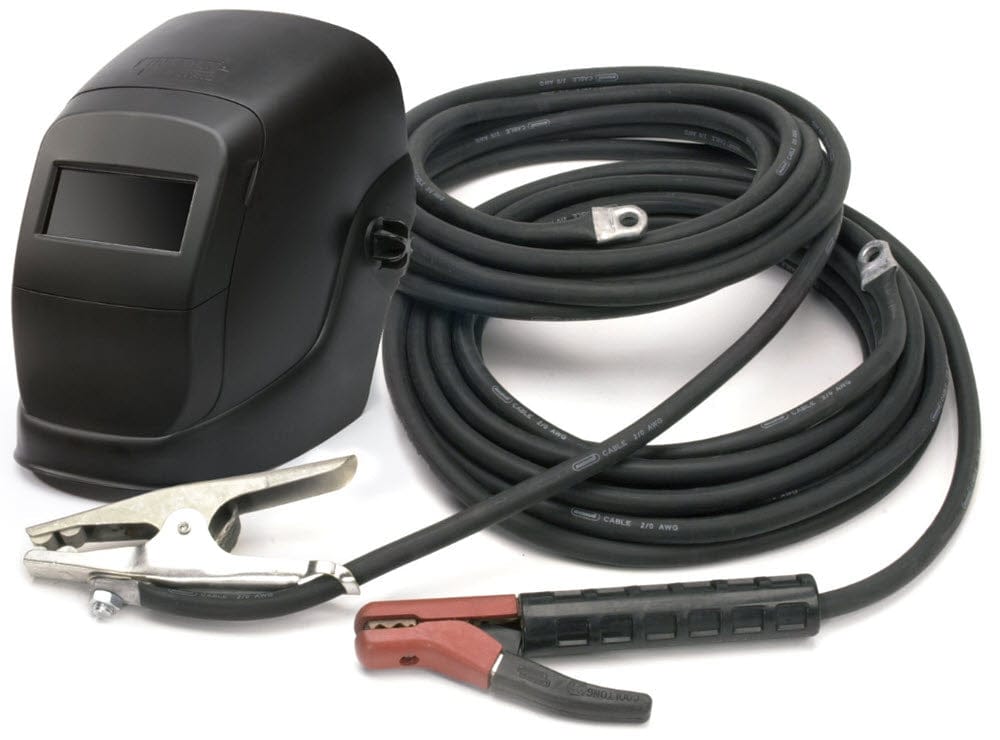

    Lincoln Accessory Kit - 400 Amp K704
