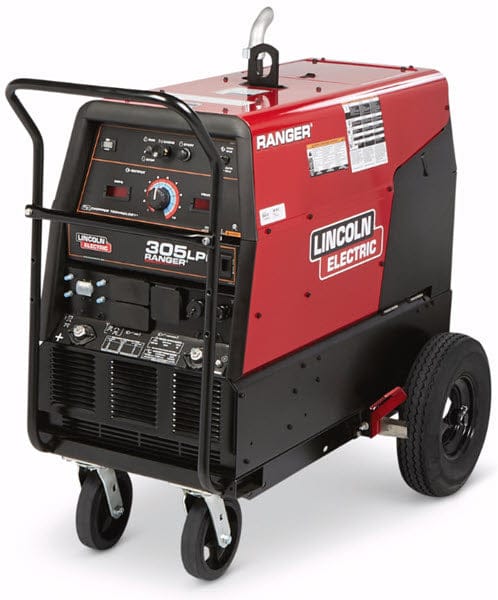

Lincoln® Ranger® 305 LPG (Kohler®) One-Pak® (Fully Assembled) K5168-1

The Lincoln® Ranger® 305 LPG One-Pak® K5168-1 is a 305 amp DC welder and 10,000 watt AC generator that operates on propane gas and comes complete with fully assembled running gear and propane cylinder rack. It is capable of Stick, DC touch-start TIG, plus MIG and Flux-Cored welding with OPTIONAL LN-25® series voltage sensing wire feeder. The Ranger 305 LPG produces up to 10,000 peak watts of single-phase AC auxiliary power. Its smooth welding output is well suited for pipe welding. The Kohler® CH730 LP two-cylinder propane engine produces 25 horsepower at 3,600 RPM and yet is up to 60% quieter than other welders in its class.

The Ranger 305 LPG Fully Assembled One-Pak comes complete with LPG fuel hose with tank fitting, K1770-2 undercarriage and K1745-2 LP tank holder. The 305 LPG is ideal for welding in areas where gasoline or diesel exhaust is prohibited.

Assembly required

  • Stick (SMAW)
  • MIG (GMAW)
  • Flux-cored (FCAW)

    Maintenance & Repair
    Service Truck
    Pipeline Welding

  • Kohler® CH730 LP Propane Engine
    25 HP LP Gas (Propane)
    Ideal for areas where gasoline and diesel exhaust are prohibited.
  • LP One-Pak®
    Includes K1770-2 undercarriage
    Includes K1745-2 LP cylinder rack
  • Multi-Process Welding
    Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas).
    Only compact gasoline welder in North America rated at 29V for 300 amps of stick or CV welding.
    CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.
  • Digital Weld Meters
    Digital weld meters for amps and volts make it easy to precisely pre-set your procedures and monitor actual welding output.
  • Superior Arc Performance
    Lincoln Electric Chopper Technology® feature provides easy starts, a smooth arc, low spatter and optimal bead appearance.
  • Peak Single-Phase AC Generator Power for Motor Starting
    10,000 watts peak
    9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also use for lights, a grinder or other power tools.
    AC generator voltage is constant at 120V or 240V at any weld dial setting.
  • Skewed Rotor Design
    Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources.
    Lincoln was the first in the welding industry with this feature.
  • Rugged Reliability
    Welding and AC generator outputs rated at 104 F (40 C).

    Comes complete with
  • Ranger® 305 LPG welder with Kohler® OHV Command CH730 LP propane engine.

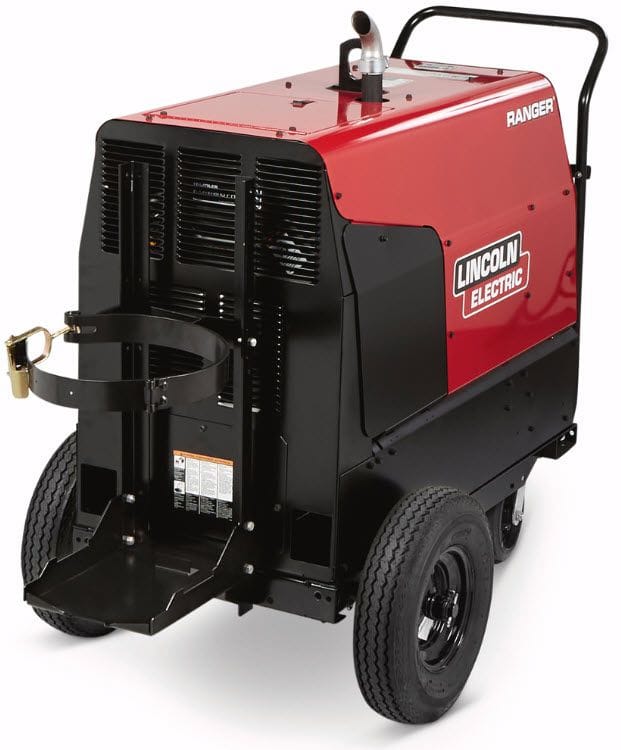

  • Fully Assembled K1770-2 undercarriage & K1745-2 LP cylinder rack with tank connection.
