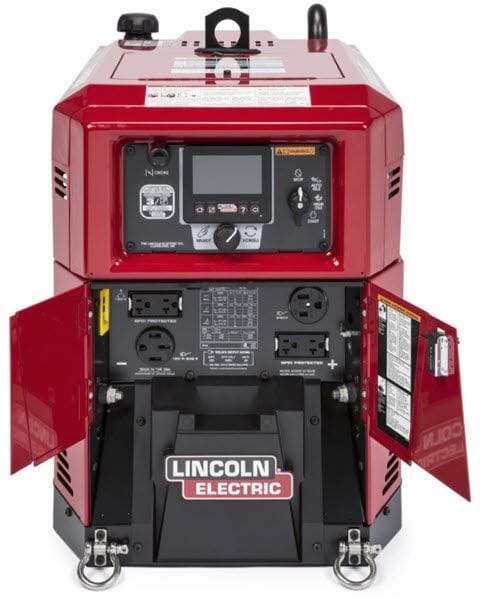

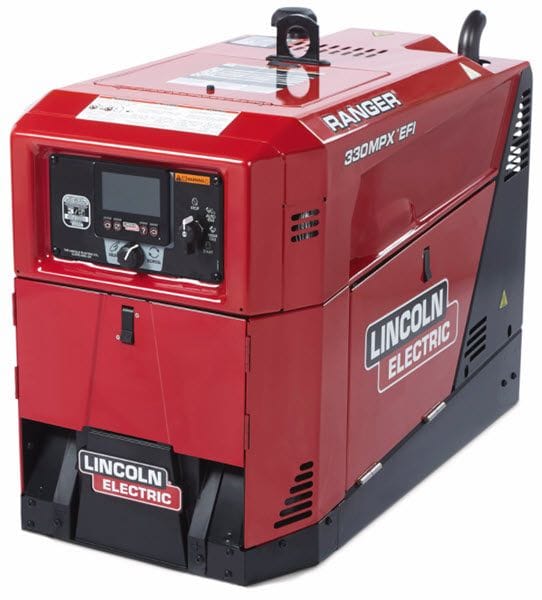

Lincoln® Ranger® 330MPX™ EFI Engine Driven Welder K4779-1
The Lincoln® Ranger® 330MPX™ EFI with electronic fuel injection is a 330 amp DC welder and 11,000 watt AC generator. It is capable of Stick, DC touch-start TIG and DC pulsed TIG welding, plus MIG and Flux-Cored welding with OPTIONAL LN-25X® series voltage sensing wire feeder. Built-in CrossLinc® technology means the Ranger 330MPX communicates directly with your LN-25X wire feeder through your welding leads for full remote amperage and voltage control without the use of a separate remote-control cable.
The Ranger 330MPX produces up to 11,000 peak watts of single-phase AC auxiliary power. Its compact size is up to 20% smaller than similar welders in its class, leaving more room for tools and equipment in your truck bed. The Kohler® ECH740 two-cylinder gasoline engine produces 25 horsepower at 3,600 RPM and yet is up to 60% quieter than other welders in its class. The electronic fuel injection system is excellent for high altitude application or for cold weather starts. It also delivers improved fuel efficiency, saving you money.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Air Carbon Arc Gouging with 3/16" carbons
Applications
Construction
Maintenance & Repair
Service Truck
Rental
Pipeline Welding
Features:
Smaller Size -
Up to 20% smaller footprint than other machines in its class
Up to 25% lighter making it easier to maneuver around the job site
Up to 31% smaller in volume than other machines in its class
Quiter Sound
Up to 60% quieter than other machines in its class
Engineered to enhance operator comfort and safety
Ready.Set.Weld® intuitive push-and-turn digital controls make setup a breeze
Maintenance Alerts keep track of engine functions and provide real-time data and notifications when service is required. The maintenance screen clearly displays hours remaining, and settings can be customized to issue alerts at preferred intervals
Chopper Technology® feature provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance
ArcFX® technology provides instant graphical feedback on how settings affect the weld outcome
CrossLinc® remote technology communicates voltage control to the welding power source through one common weld cable
HIGH QUALITY OPERATIONS
Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruptions
New engine driven weld modes: downhill pipe, touch-start pulse TIG, and pulse spool gun
Plenty of power at 330A/28V for 100% duty cycle to weld 1/4 in. 7018 electrode
Fine tune adjustments available on: hot start, arc force, and pinch controls
Arc gouging capabilities up to 3/16" carbon electrode
11,000 Watts Peak Single-Phase AC Generator Power
Peak for motor starting.
10,000 watts continuous power for generator, plasma cutter or inverter welder.
Lights, grinder, power tools.
25 HP Kohler® Gasoline Engine
Electronic Fuel Injected, 2 cylinder, 4 cycle overhead valve. air-cooled design.
Excellent for high altitude operations or cold weather starts.
Rugged Reliability
Welding and AC generator outputs rated at 104F (40C).
Comes complete with
Ranger® 330MPX EFI welder with Kohler® OHV Command ECH740 gasoline engine with electronic fuel injection.

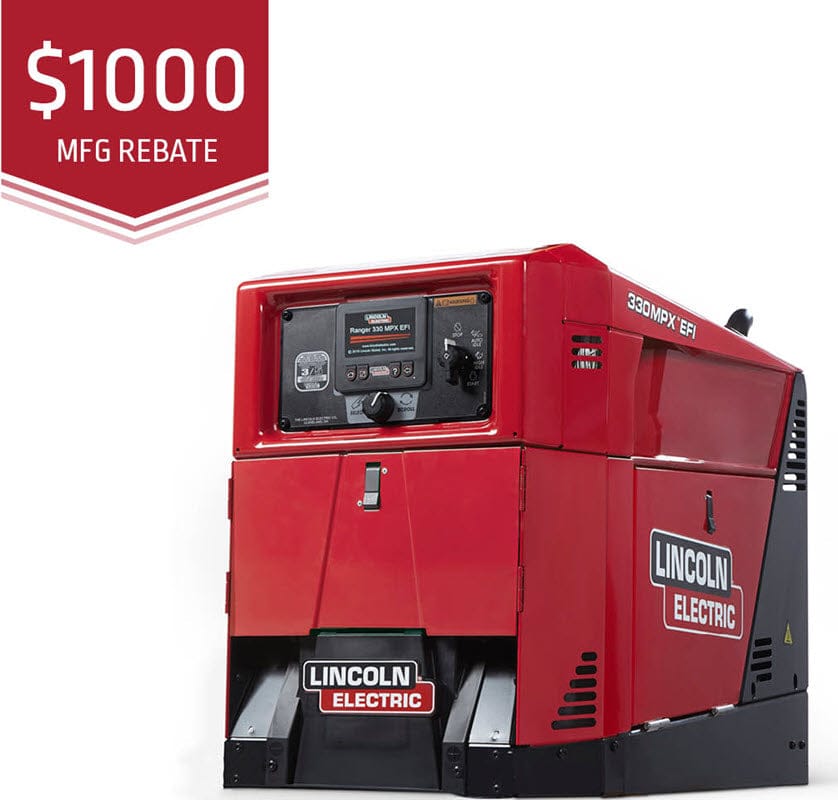

PLUS get a $1,000 VISA® gift card from Lincoln® with the purchase of this Ranger® 330MPX™ EFI welder. Rebate form must be submitted online HERE no later than 30 days after purchase. While supplies last.
