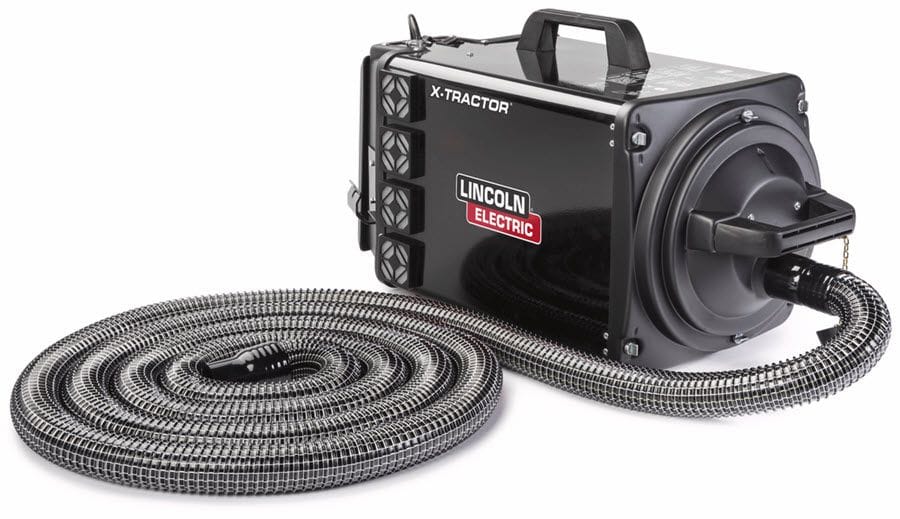

Lincoln® X-Tractor® 1 Welding Fume Extractor 230/1/50/60 K652-2

Genuine Lincoln® X-Tractor® 1 K652-2 Welding Fume Extractor comes complete with 16 ft. hose and operates on 230 volt input power. The high vacuum suction system provides 55-115 cubic feet per minute of flow with air speeds of 4,000 to 5,000 feet per minute. The unit weighs only 37 lbs., making it extremely portable. It is excellent for light duty or occasional use in various maintenance or construction welding applications.

The X-Tractor 1 Fume Gun comes with a built-in automatic start/stop sensor that operates the fume extractor only when needed. The sensor hook, when laid across either your welding lead or ground cable tells the extractor to switch on when welding current is detected. The unit will automatically switch off about 10 seconds after the welding arc is extinguished. This X-Tractor 1 runs on 230 volt, single-phase, 50 or 60 Hz input power.

Process
  • Welding Fume Extraction



    Applications
    Industrial Applications
    Contractors
    Maintenance and Repair Operations
    Intermittent welding

    Features
  • Simple to Configure
    Uses a single fume extraction welding gun or suction nozzle attachment.
  • Filter Cleaning System
    Unique rotary air jet system allows the polyester filter to be cleaned using compressed air without removing it from the X-Tractor 1 Fume Gun.
  • Automatic Start/Stop Sensor
    Provides extraction only when needed, extends motor life, and reduces energy consumption.
  • Wide Variety of Extraction Nozzles Available
    Easily adapt the X-Tractor 1 Fume Gun for many different welding applications.
  • Low Noise Operation
    74 dBA @ 3.3 ft. (1 m)
  • 1-Year Warranty



    Comes complete with
  • X-Tractor® 1 fume extractor
  • Adapter for 1-3/4 in. (45 mm) hose (S20591-8)
  • 16 ft. (5 m) long x 1-3/4 in. (45 mm) diameter flexible hose
  • 2 spare sets of carbon brushes for motors
  • Filter cartridge
  • 12 ft. (3.6 m) power cord

  • Lincoln X-Tractor 1 & 2 Fume Extractor Replacement Filter KP2069-1
