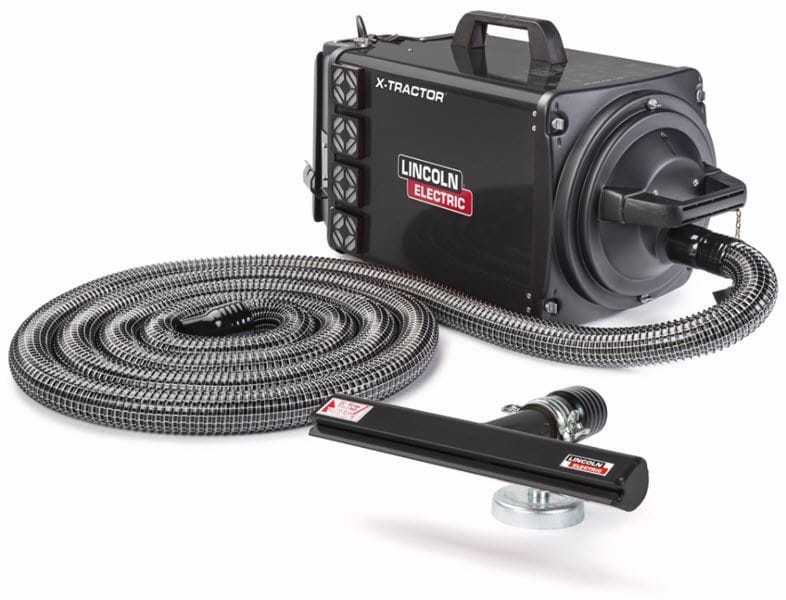

Lincoln X-Tractor 1GC & SHM-300 Nozzle One-Pak® K4260-4

Lincoln® X-Tractor® 1GC Welding Fume Extractor & SHM-300 Nozzle One-Pak® K4260-4

Genuine Lincoln® X-Tractor® 1GC Welding Fume Extractor One-Pak® comes complete with 16 ft. hose and SHM-300 nozzle. The high vacuum suction system provides 55-115 cubic feet per minute of flow with air speeds of 4,000 to 5,000 feet per minute. The unit weighs only 37 lbs., making it extremely portable. It is excellent for light duty or occasional use in various maintenance or construction welding applications.

The X-Tractor 1 Fume Gun comes with a built-in automatic start/stop sensor that operates the fume extractor only when needed. The sensor hook, when laid across either your welding lead or ground cable tells the extractor to switch on when welding current is detected. The unit will automatically switch off about 10 seconds after the welding arc is extinguished. This X-Tractor 1 runs on 120 volt, single-phase input power.

Process

• Welding Fume Extraction



  Applications
  Industrial Applications
  Contractors
  Maintenance and Repair Operations
  Intermittent welding

  Features
• Simple to Configure
  Uses a single fume extraction welding gun or suction nozzle attachment.
• Filter Cleaning System
  Unique rotary air jet system allows the polyester filter to be cleaned using compressed air without removing it from the X-Tractor 1 Fume Gun.
• Automatic Start/Stop Sensor
  Provides extraction only when needed, extends motor life, and reduces energy consumption.
• Wide Variety of Extraction Nozzles Available
  Easily adapt the X-Tractor 1 Fume Gun for many different welding applications.
• Low Noise Operation
  74 dBA @ 3.3 ft. (1 m)
• 1-Year Warranty



  Comes complete with
• X-Tractor® 1GC fume extractor
• Adapter for 1-3/4 in. (45 mm) hose (S20591-8)
• 16 ft. (5 m) long x 1-3/4 in. (45 mm) diameter flexible hose
• SHM-300 aluminum suction nozzle with magnetic base
• 2 spare sets of carbon brushes for motors

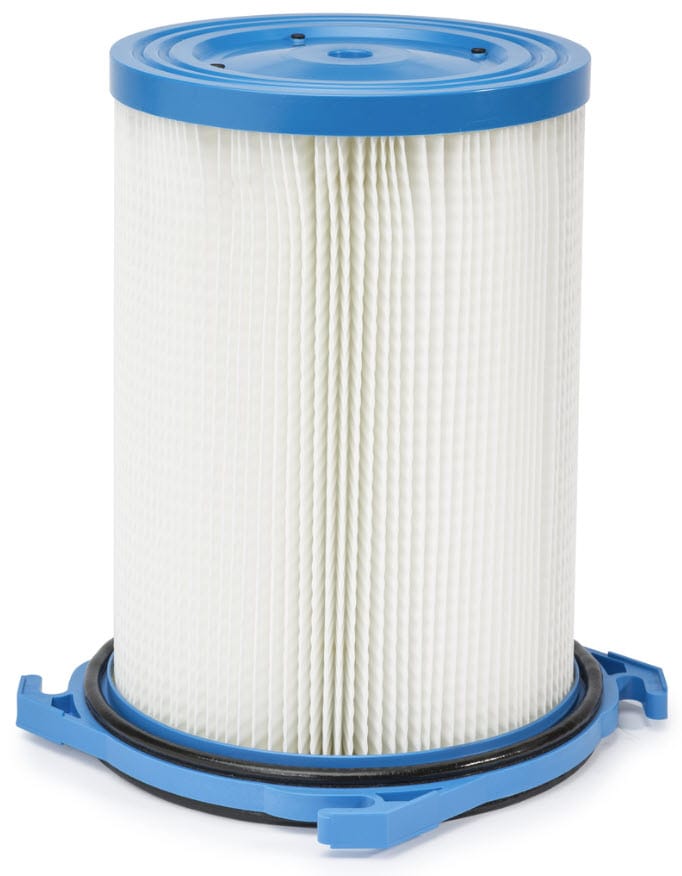

• Filter cartridge
• 12 ft. (3.6 m) power cord
