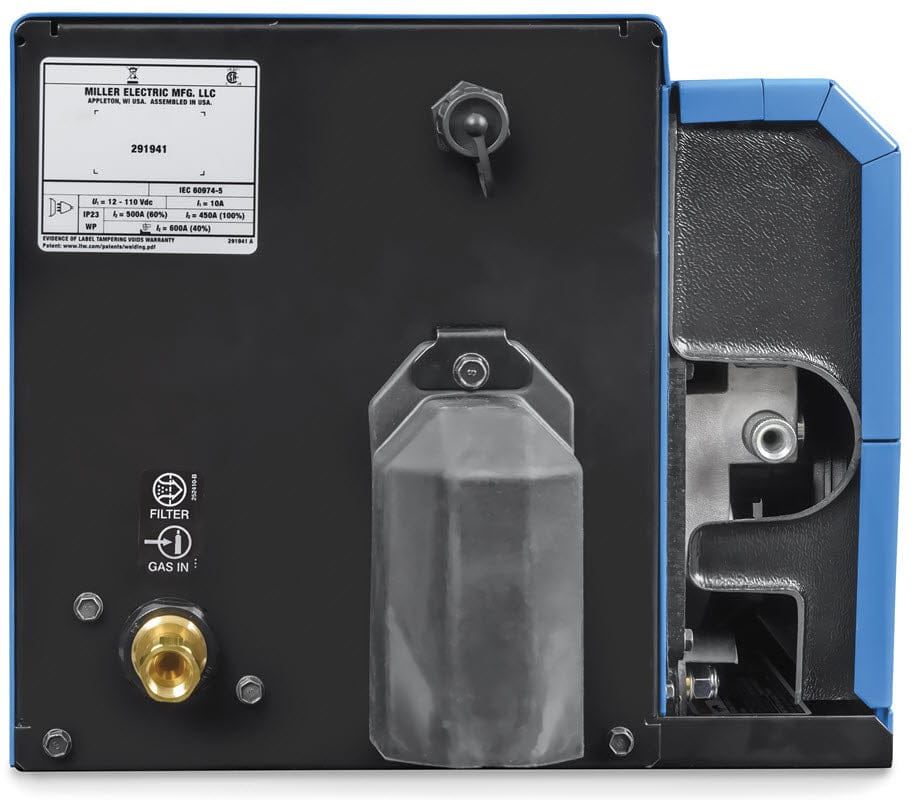

Miller ArcReach 16 Wire Feeder with Field Roller 951000066

Miller® ArcReach® 16 Wire Feeder with Field Roller & IronPro™ Gun 951000066

The Miller® ArcReach® 16 Wire Feeder with Field Roller is a heavy duty MIG/Flux-Cored wire feeder package that comes complete with a field roller, lifting eye, spool cover, Bernard® IronPro™ flux-cored gun and 3/32" drive rolls. The wire feeder has full remote voltage and amperage control without the use of a remote control cable. The secret to this technology is built-in circuitry in both the ArcReach 16 feeder and your Miller ArcReach welder that passes remote control signals through the welding leads, eliminating the need for costly remote control cables. ArcReach remote control distance is limited only by the length of your welding cable leads. ArcReach allows your MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote voltage AND amperage control capabilities at the site of the weld, without using expensive remote control cables. The ArcReach 16 MUST be paired with a Miller ArcReach welder.

The ArcReach 16 wire feeder has up to a 500 amp welding capacity. It also features an integrated gouging stud for air-carbon arc gouging up to 600 amps. The simple user interface allows for easy switching between MIG, Flux-Cored and gouging processes.



Processes

MIG (GMAW)

Flux Cored (FCAW)

Air-Carbon Arc Gouging (CAC-A)

Applications
Industrial Applications
Shipbuilding
Construction
Heavy Manufacturing

Features:

Full Remote voltage and amperage control of the welding power source without a cord
ArcReach™ technology uses the existing weld cable to communicate welding control information between the feeder and power source.
This technology eliminates the need for control cords, and their associated problems and costs.

Set volts, wire feed speed and process remotely.

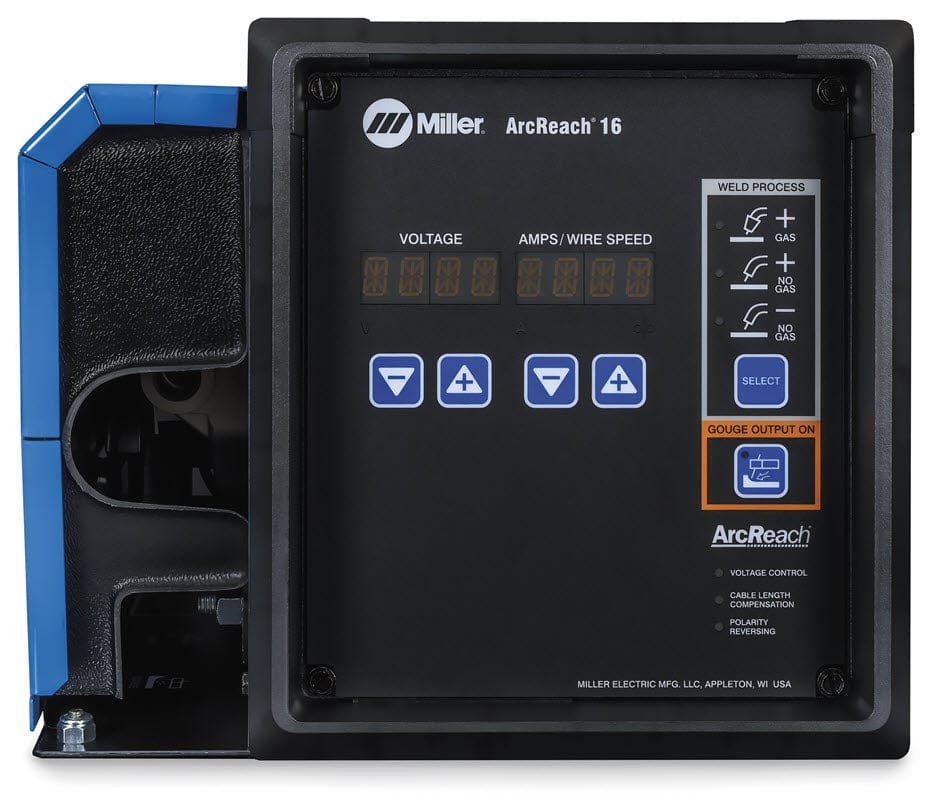

The simple interface allows operators to adjust parameters at the point of use with no control cords

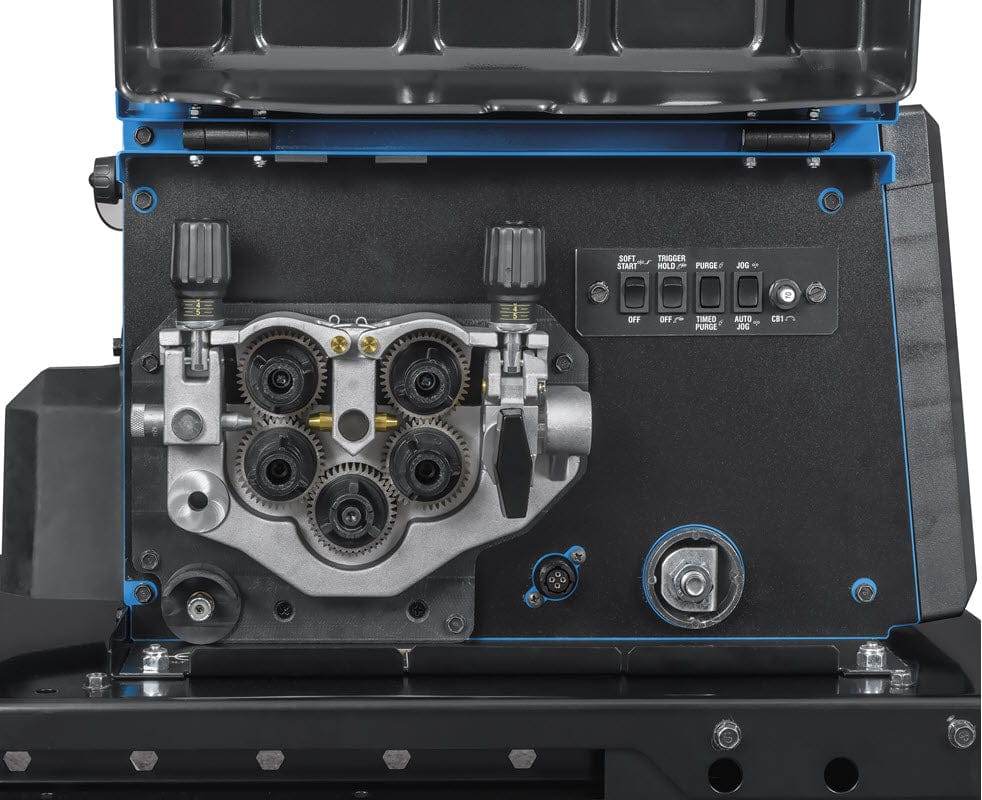

Heavy-duty drive motor with tachometer control
Provides wire feed speed that is accurate and consistent
Provides consistent arc quality
Wide voltage range for small and large wires with no contactor chatter or arc outages

Easy process changeover
Simply connect the ArcReach 16 wire feeder to your weld lead and you are ready to go
Switch between welding and gouging with a push of a button with no need to swap leads or disconnect the wire feeder with isolated outputs

Weld with up to 60-pound spools and large diameter (3/32 in.) wire
To minimize downtime and maximize productivity

Integrated gouging stud on wire feeder
Isolated gouging stud allows easy connection for gouging at point of use, eliminating the need to disconnect the wire feeder and to swap leads.

Easy mobility in the field

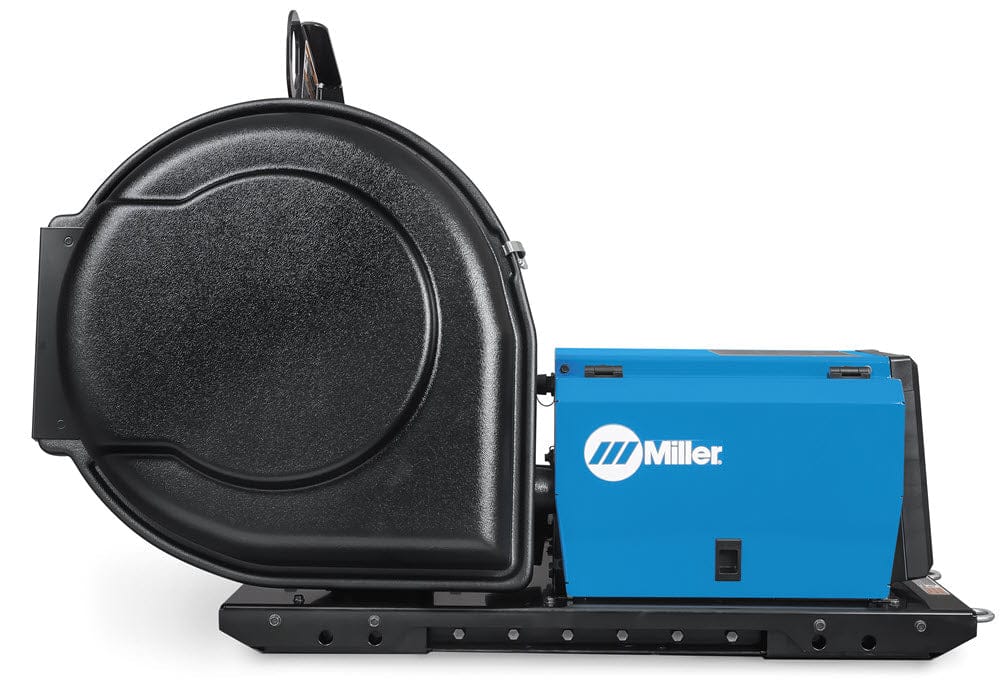

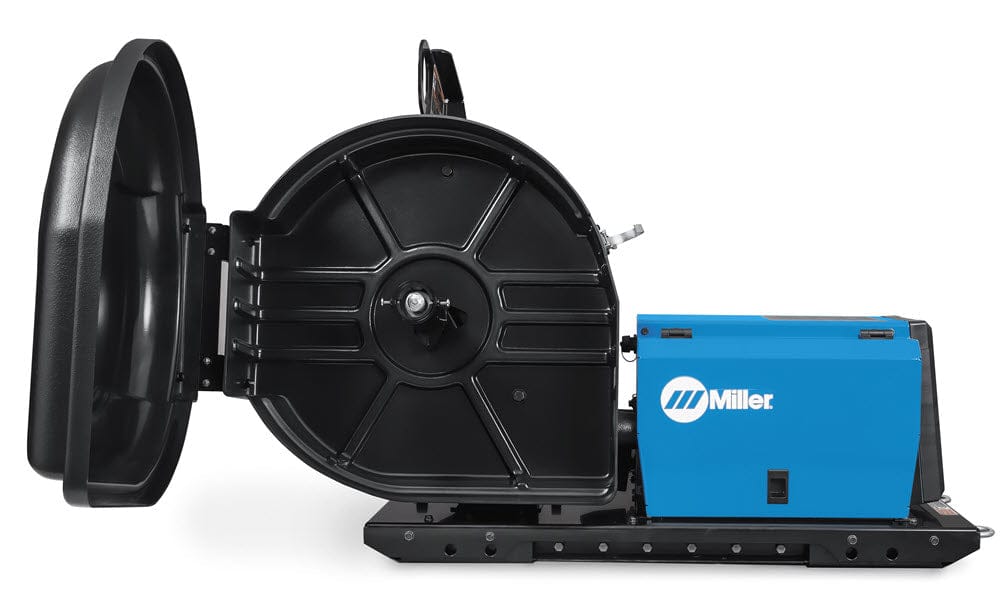

The INCLUDED Field Roller features heavy a heavy duty lifting eye and spool cover. The Field Roller allows your feeder to be safely pulled or lifted around the jobsite.

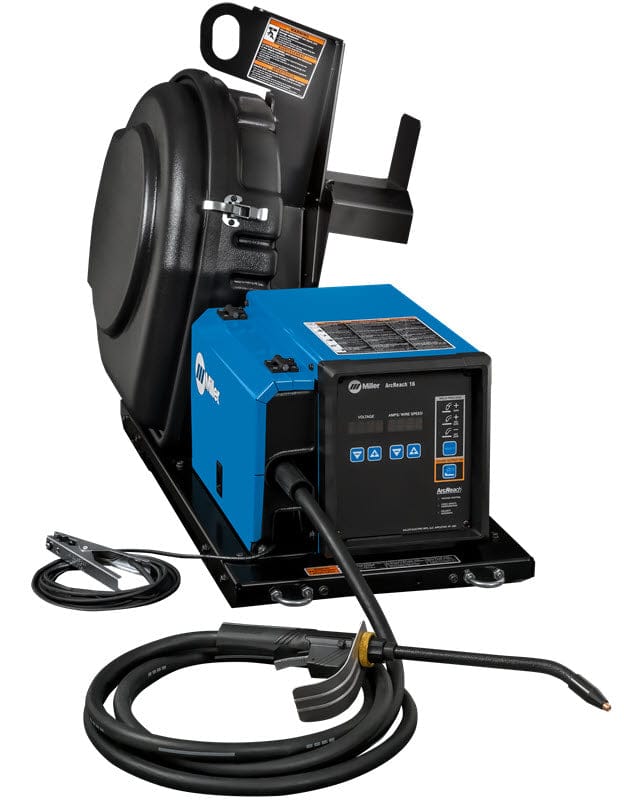

Comes Complete With

ArcReach® 16 wire feeder

Field Roller with lifting eye, spool cover and cable hanger

Bernard® 15 ft. IronPro™ flux-cored gun

4 roll 3/32" VK drive roll kit

Voltage sensing cable and clamp

Built-in wire guide
