Miller Argon Flowmeter Regulator 22-80-580

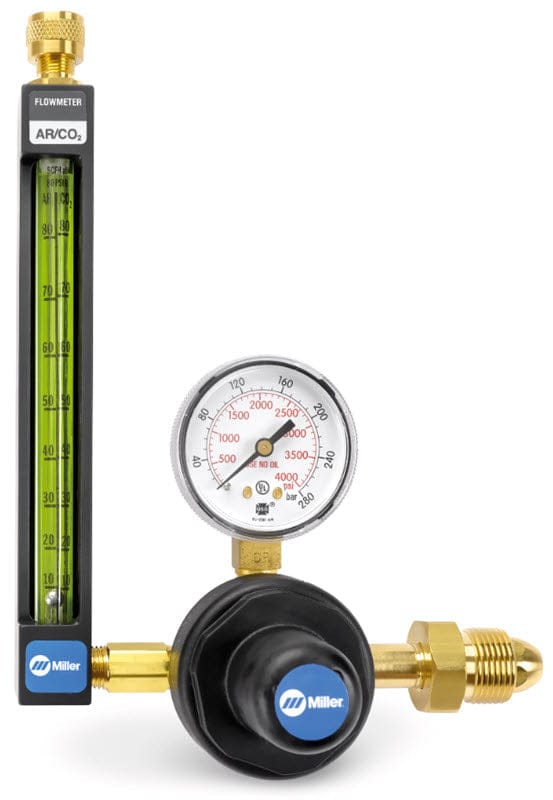

Miller® Argon Flowmeter Regulator 22-80-580

The Miller® Argon Flow Meter Regulator is ideal for most MIG and TIG welding applications where more accurate delivery of argon or argon/CO2 shielding gas is needed. The flow tube features Miller's exclusive self-centering ball guide, which delivers more precise readings of shielding gas flow than competitive brands; saving on shielding gas cost. The flow tube also has a high-visibility green-scale background and is protected by a robust aluminum housing.

The 22-80-580 flow meter regulator comes with a GGA-580 (inert gas) inlet and has a preset outlet delivery pressure of 80 PSIG. The flow range for this regulator is 10-80 SCFH. It is backed by Miller's True Blue® Three Year Warranty.



Features

Rugged aluminum housing protects flow tubes from accidental damage while offering an unobstructed view of flow reading.

Extra-long flow tube. Expanded scales are easy to read and accurate within five percent of full scale reading.

High-visibility-green scale background eases reading flowmeter from a distance and in low-light conditions.

Shatter-resistant multi-scale flow tube. Tubes are made of shatter-resistant polycarbonate resin and feature separate scales for argon, C02 and helium depending on the model.

Unique self-centering ball guide - exclusive ball-centering flow tube provides accurate flow readings even if the tube is tipped. This ensures good weld quality and gas savings. Non self-centering flow tube ball tends to float off center. Actual gas flow can be up to 2-1/2 times greater than is indicated.

Two-inch cylinder pressure gauge is easy to read and has a shatter-resistant lens.

Auto-reset pressure-relief valve protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.

Sure Seat? filtered high-pressure seat assembly protects seat from debris for reliable operation and long service life.

Inlet stem filter provides additional filter protection against seat contamination and regulator creep.

Specifications
