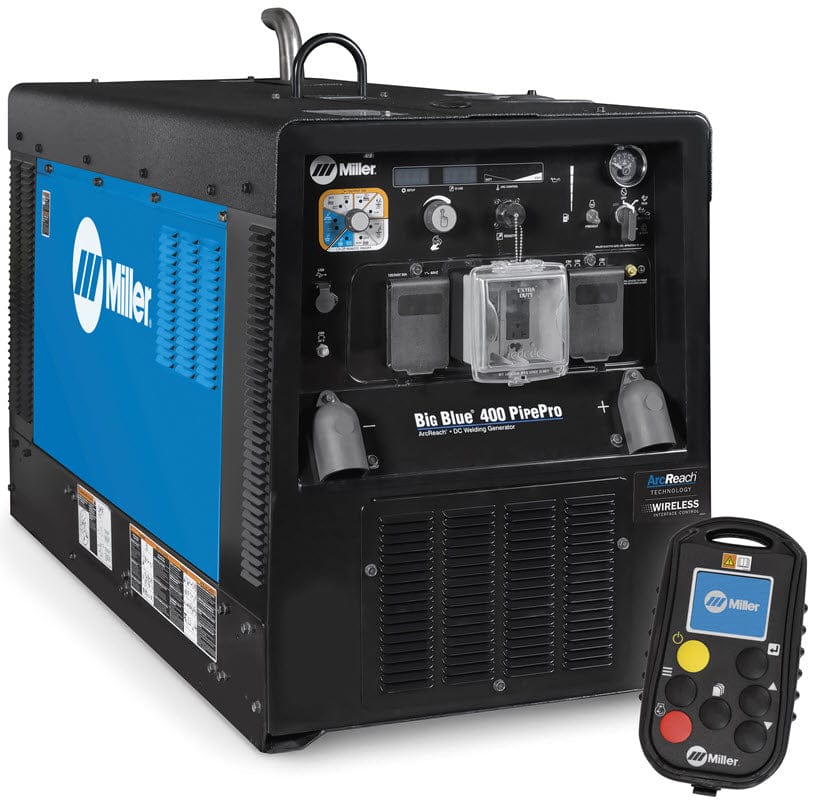

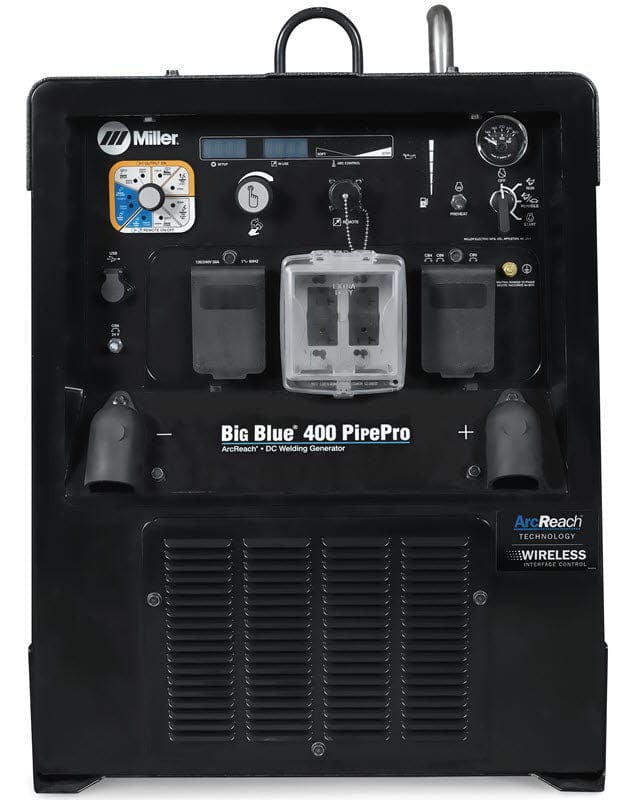

Miller® Big Blue® 400 Pipe Pro® Mitsubishi Diesel Welder With ArcReach® and Wireless Interface Control 907805001
The Miller® Big Blue® 400 Pipe Pro® with ArcReach® and Wireless Interface Control is a 400 amp, multi-process diesel engine welder with full remote front panel access; including remote amp/voltage control and engine start/stop. The wireless interface control is a handheld unit that controls all weld parameters, stores custom weld settings, displays real time engine status and service intervals, and acts as a remote engine start/stop. Wireless interface control saves fuel, reduces jobsite noise, and enhances worker safety and productivity by reducing trips back and forth to the welder.
The Big Blue 400 Pipe Pro is designed specifically for transmission pipeline welding. It has superior downhill stick arc characteristics and is capable of MIG and flux-cored welding with proper accessories. It produces up to 400 amps of welding output at 100% duty cycle and provides 12,000 peak watts of auxiliary power. It is capable of carbon arc gouging using up to 1/4" diameter carbons. When paired with the appropriate wire feeder, the Big Blue 400 Pipe Pro can perform MIG, Pulsed MIG, RMD® and flux-cored welding operations. The Mitsubishi SL42 four cylinder diesel engine is EPA Tier 4F compliant and is engineered to operate over 10,000 hours before the first basic overhaul.
The Big Blue 400 Pipe Pro also comes standard with Miller ArcReach®. The ArcReach feature allows the Big Blue to communicate with a remote Miller® ArcReach® wire feeder or ArcReach® Stick/TIG remote without the use of a remote control cable. The secret to this technology is built-in circuitry in both the Big Blue 400 Pipe Pro welder and Miller ArcReach wire feeder/remote control that passes remote control signals through the welding leads, eliminating the need for costly remote control cables. ArcReach remote control distance is limited only by the length of your welding cable leads. ArcReach allows your Stick, TIG, MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote control capabilities at the site of the weld without using expensive remote control cables. The Big Blue 400 Pipe Pro MUST be paired with a Miller ArcReach feeder or ArcReach Stick/TIG remote to get the full benefits of this feature.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
RMD®
Pulsed MIG (GMAW-P)
DC TIG (GTAW)
Air carbon arc (CAC-A) Rated: 1/4-inch (6.4 mm) carbons
Applications
Heavy Industrial Applications
Cross-country pipeline
Process pipe welding
Features:
Wireless Interface Control - With wireless interface control, you can change welding processes, adjust parameters, select and save preset programs, turn the machine on/off, get service reminders and more from wherever you are on the jobsite. Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
View engine status, fuel level, and battery charge level of remote.
View and select between all available processes.
Turn contactor on/off manually in remote welding mode. Turn engine on/off with remote.
Save custom presets in up to four programs and easily switch between pre-programmed settings.
Quickly adjust and save arc control settings including DIG, DIG range inductance and Auto-Stop.
Adjust amperage or voltage, by increments or percentage, while welding.
Remote control of the power source without a cord. ArcReach® allows you to change weld settings from your ArcReach feeder or remote, saving a trip to the power supply. ArcReach technology uses the existing weld cable to communicate welding control information between the feeder or remote and the power source. This technology eliminates the need for control cords, and their associated problems and costs.
Designed for the transmission pipeline welder. The Big Blue 400 PipePro offers superior downhill stick arc characteristics, as well as MIG/flux-cored capabilities, to meet high-strength steel requirements for the most demanding pipeline jobs.
Mitsubishi S4L2 four-cylinder liquid cooled diesel engine. Designed to operate over 10,000 hours before the first basic overhaul. Backed by worldwide support and service.
Quiet at only 72.1 dba (97 Lwa) at 23 ft at maximum output. Improves work site communication.
Digital meters with SunVision™ technology enable welding parameters to be viewed with greater clarity than analog meters at virtually any angle. Meters can be seen clearly even in direct sunlight. Meters display
Process settings for quick and easy setup
Preset and actual amperage
Simple-to-set controls require no elaborate procedure just select process and weld!
Industrial USB port. Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
Low OCV stick (VRD) reduces the open-circuit voltage to 15 volts when the welding power source is not in use, increasing operator safety without compromising arc starts.
Ultra-adaptive arc control - Unlike conventional DIG that provides a preset amount of short-clearing current, Miller-exclusive Dynamic DIG technology works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. Delivers a smoother more consistent arc that can be tailored to match application, material, fit-up and welder technique.
Standard 14-pin receptacle with Auto-Remote Sense™ for simple connection of remote controls and wire feeders.
10,000 watts of pure generator power. Plug in an extra Miller® inverter-based power source for a second welding arc!
LINE-X® top cover is workbench tough and provides superior impact, corrosion and abrasion protection.
Standard features include adjustable Hot Start™, output contactor control, automatic idle, thermal overload protection and 120-volt block heater.
Specs
Comes complete with
Big Blue® 400 Pipe Pro® welder with Mitsubishi S4L2 diesel engine
120V block heater
Wireless Interface Control (WIC) with recharging cord
PLUS get a FREE 500 ft. reel of 2/0 neoprene jacketed welding cable with the purchase of this Miller® Big Blue® 400 Pipe Pro welder. While supplies last. (No substitutions allowed.)
Kalas ToughFlex™ 2/0 welding cable, in 500 foot reel, is premium, neoprene jacketed, 600 volt copper cable designed to stay flexible, even in cold weather. Cable is marked in one foot increments for the entire length of the reel.
Resists oil, chemicals, water, ozone and solvents
EPDM insulation for optimum cold weather flexibility and excellent spatter resistance
Sequential foot-marked
RoHS compliant
UL® Listed
