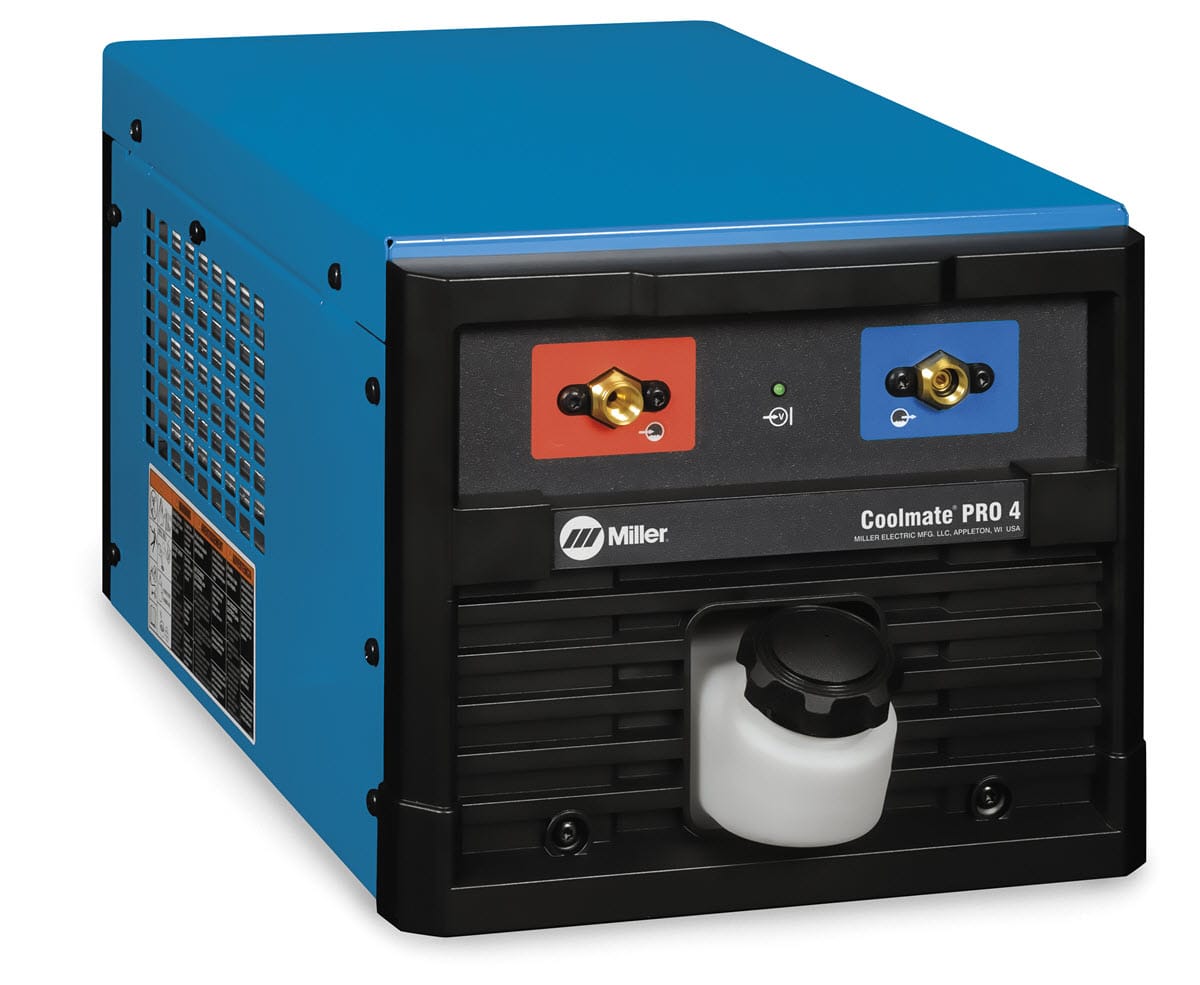

Miller Coolmate PRO 4 Coolant System - 120/240 Volt 301905

Miller® Coolmate™ 4 PRO 120/240V Coolant System 301905

Genuine Miller® Coolmate™ 4 PRO water cooler is designed to integrate with Dynasty® 400, Dynasty™ 800 and Maxstar® 400 TIG welders. It can also be used as a stand-alone cooler with other welding equipment. The Coolmate 4 PRO has a 4.0 gallon coolant capacity and is suitable for use with water-cooled torches rated up to 600 amps. It features up to 60% greater cooling capacity than older Coolmate 3.5 models. Miller's Auto-Line™ allows the Coolmate 4 PRO to operate on 120 volt or 240 volt input power withouth manual linking.

The Coolmate 4 PRO is the direct replacement for Miller Coolmate 3, Coolmate 3.5 and Coolmate 4 coolers.

Features

• Auto-Line™
  Automatically connects to 120-240 VAC, single-phase power without removing the covers to re-link the cooler. Ideal solution for dirty or unreliable power.
• Designed to integrate with
  Dynasty® 400/800 and Maxstar® 400 welders
• Horizontal design
  Allows stacking or convenient mounting onto Runner™ carts
• Weighs only
  46.5 pounds (21 kg) dry
• Polyethylene-molded coolant tank
  Fan shroud and filler spout are rustproof
• Efficient
  Fin-and-tube heat exchanger
• Coolant fill spout
  Is conveniently located for easy access
• Energy-efficient
  Motor and pump
• Equipped with internal check valves
  To prevent coolant flow when torch is disconnected
• Brass-body positive-displacement rotary vane pump
  Provides consistent coolant flow and pressure rating with long pump-life expectancy

Comes complete with

• Coolmate™ 4 PRO coolant system
• 10 ft. 115 volt input power cord with plug
• 3 ft. CPS (Cooler Power Supply) input power cord with plug
