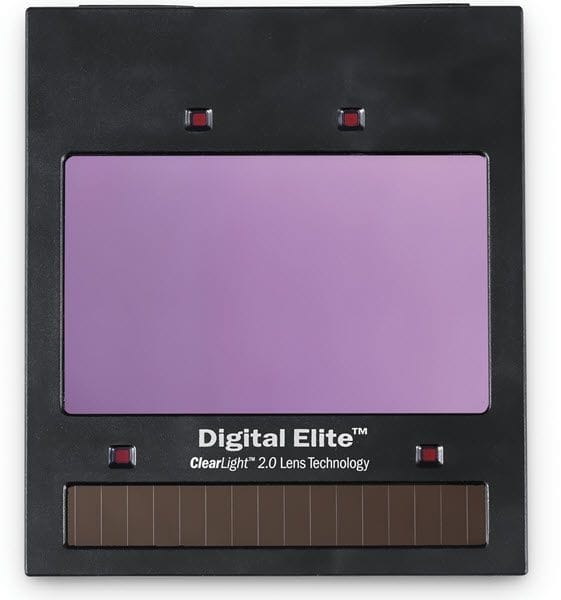

Miller Elite ClearLight 2.0 Auto-Darkening Welding Lens 289753

Miller® Digital Elite™ ClearLight™ 2.0 Auto-Darkening Welding Lens 289753

Genuine Miller® Digital Elite™ ClearLight™ 2.0 replacement auto darkening welding lens for your Miller Elite™ welding helmet. ClearLight™ 2.0 lens technology offers high-definition optics with more realistic color hues in both light and dark states. The Digital Elite™ lens has four arc sensors and operates in weld, cut, grind and Miller's X-Mode™, which eliminates sunlight interference and low-amp lens flashing from obstructed arc sensors. It is rated for low amperage TIG welding down to 5 amps. Switching speed is a lightning fast 1/25,000 of a second.

Use to replace your existing Digital Elite™ ClearLight 2.0 lens or to upgrade from a Miller Elite™ 1st generation ClearLIght lens. It is also an excellent auto darkening upgrade for your Miller passive lens welding helmet. Comes with four year warranty.

Direct replacement for Miller #280056 Elite™ ClearLight™ lens.



Digital Elite™ Features

ClearLight™ 2.0 lens technology
Provides advanced, high-definition optics for the most realistic view that's clearer and brighter - before, during and after every weld.

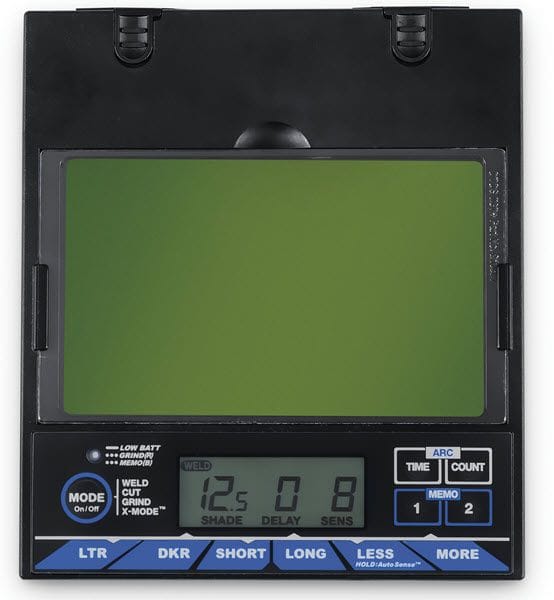

Digital Controls With Four Arc Sensors and Four Operating Modes -

• Weld Mode™ Shades #8 - 13
• Cut Mode™ Shades #5 - 8
• Grind Mode - Light State #3
• X-Mode™ Shades #8 - 13

X-Mode™
Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds

Memory Function
For ease of switching between two preset memory settings.

Half-shade settings
For precise lens adjustment.

InfoTrak™ 2.0
Exclusive arc tracking technology that monitors arc time and arc count for quoting and worker safety metrics.

AutoSense™
Eliminates issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense™ button to automatically set the helmet sensitivity for their environment.

Auto-on/off
Power control triggers lens at the strike of an arc.

Digital Elite™ Specs
