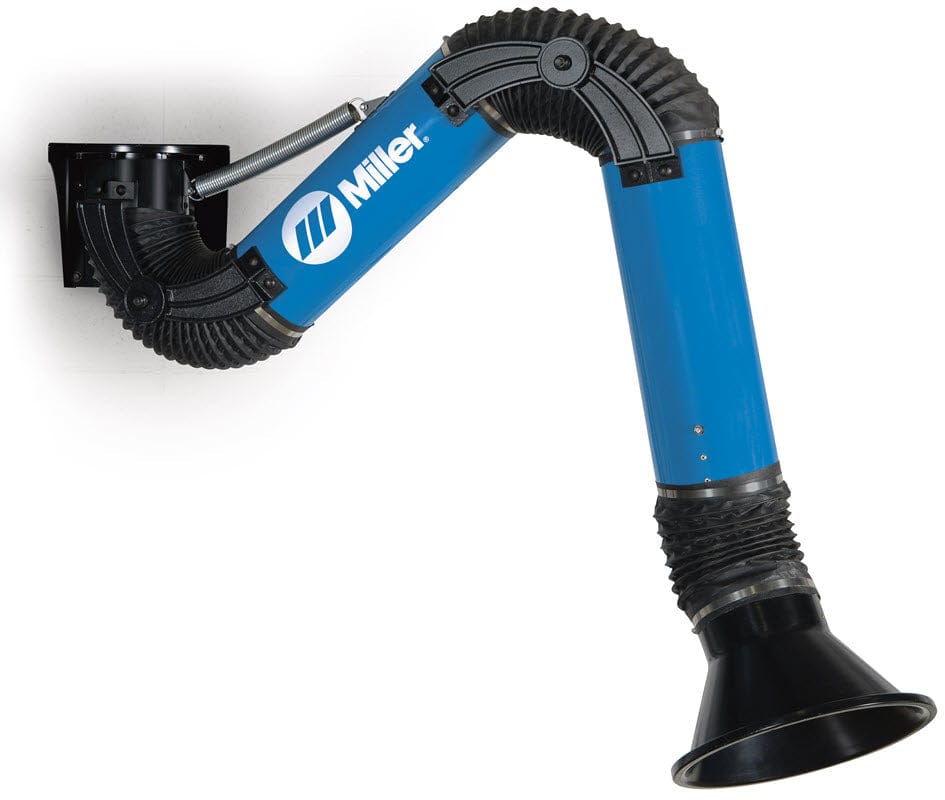

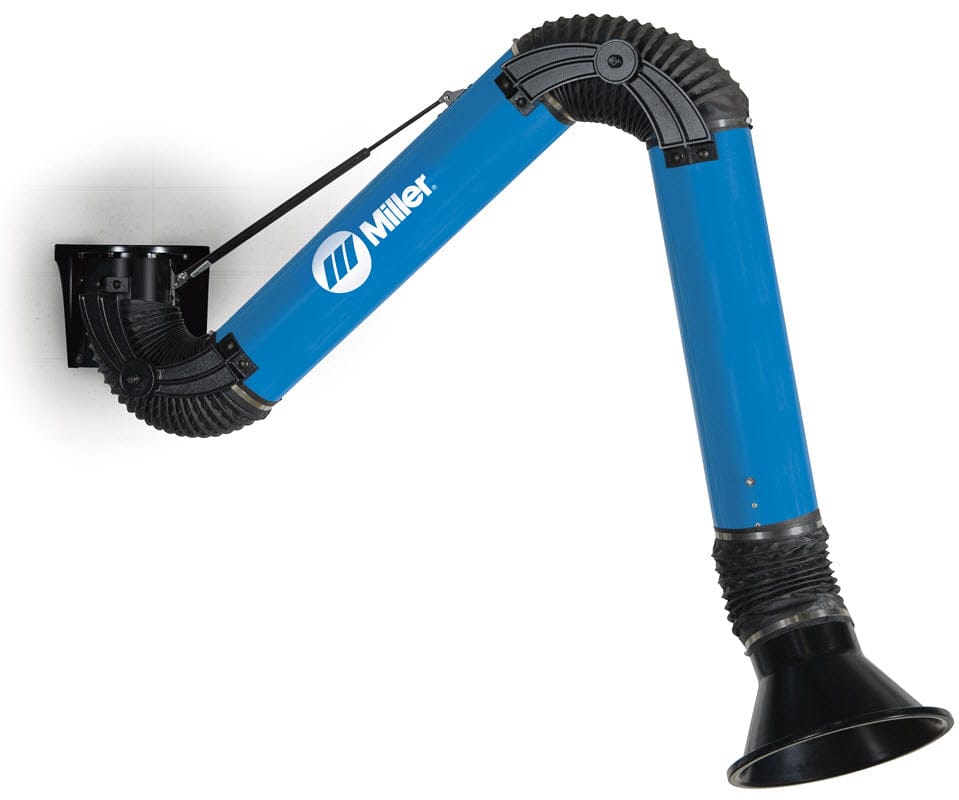

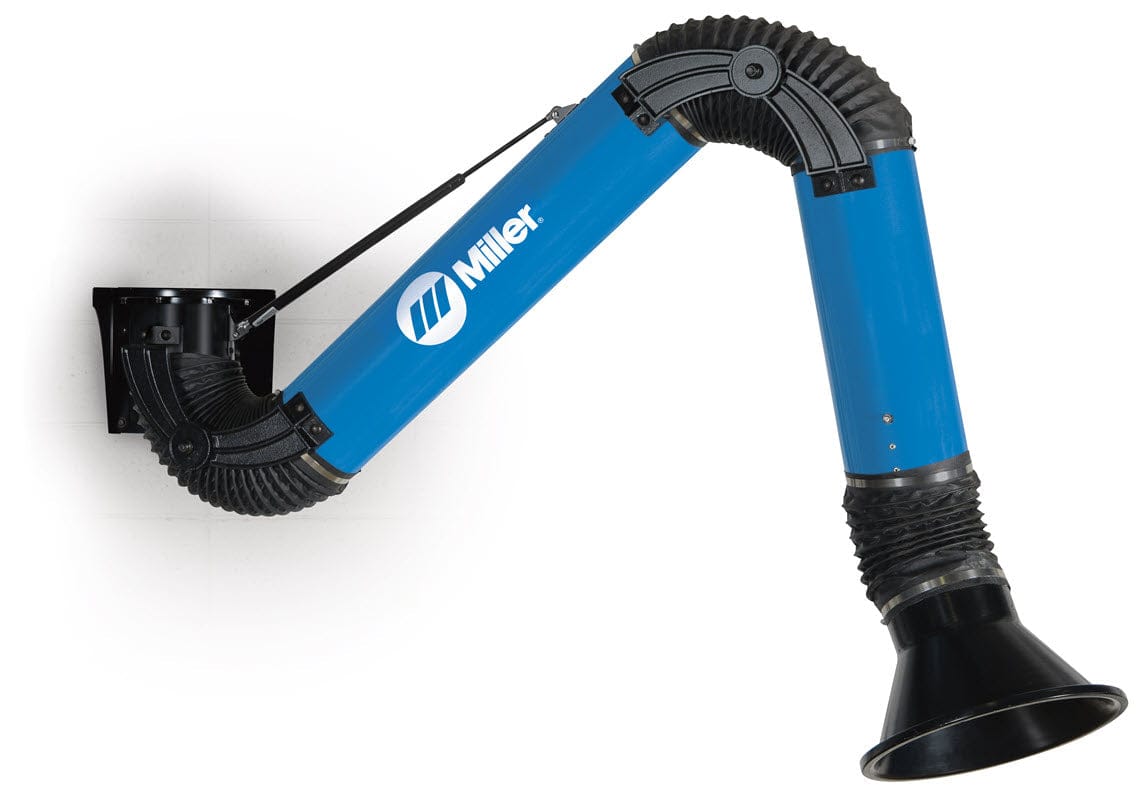

Miller® FILTAIR® Standard Fume Extraction Arm - 8 Inch Diameter
Genuine Miller® FILTAIR® 8-Inch Diameter Standard Fume Extraction Arm is available in 7 ft., 10 ft. or 12 ft. lengths, and is a critical part of your shop's overall weld fume removal solution. It comes preassembled and is designed to be mounted to a wall, pedestal, column or welding fume extractor. External controls and adjustments allow for greater air flow through the arm itself, with no internal components to restrict circulation. FILTAIR® Standard Extraction Arms are compatible with Miller FILTAIR SWX fume extractors, centralized shop systems or competitive equipment.
Features
Easy to Operate Extraction Arm
Preassembled fume extraction arm offers reliable and accurate positioning across the full range of motion, as well as easy adjustment and maintenance - to ensure long-lasting operation.
Multiple use options
Connect a FILTAIR standard extraction arm to any FILTAIR SWX fume extractor, centralized
system or competitive equipment.
Designed to cover larger spaces
Standard extraction arms are available in 7-, 10-, and
12-foot versions. External brackets and adjustments allow air
to pass through with less resistance giving
you stronger cfm (airflow).
Durable bell-shaped hood
Is one of the largest in the industry. FILTAIR's extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means fewer hood adjustments for longer welds.
When to use 8-inch arms
An 8-inch arm is capable of delivering
approximately 45 percent more airflow than a 6-inch diameter arm,
and the hood can be placed further from
the welding area (up to 16 inches).
Additionally, the conical hood is larger
in diameter and capable of collecting
from a broader area.
Typically the 8-inch
arm is used in heavy manufacturing for
larger weldments.
