Miller® FILTAIR® Welding Fume Extractor MWX-S 951511

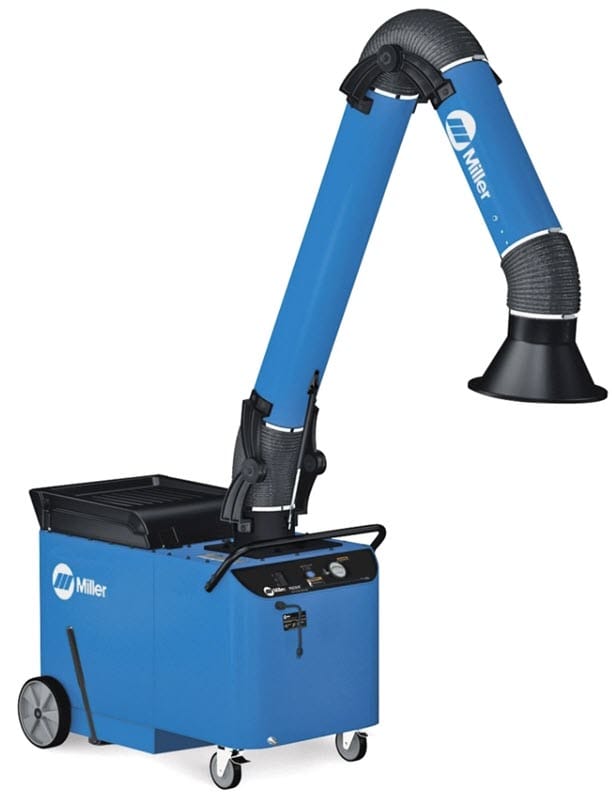

The Miller® FILTAIR® MWX-S Welding Fume Extractor with 10 foot arm is a source capture system with self-cleaning FilTek™ filter for extended filter life, increased efficiency and cleaner air. Innovative filter cleaning mechanism uses a burst of reverse air flow to clean fume particulates from filter surface. A fast, one minute cleaning cycle is all it takes to remove weld fume particles from the filter. The MWX-S is a portable system with locking front caster wheels and large rear wheels that moves seamlessly around your shop. Self-cleaning MERV 15 rated filter traps 95% of all welding fume particulates. The MWX-S's powerful motor and large bell-shaped hood combine to move 875 CFM (cubic feet per minute) of air. The system runs on standard 120V input power.
Process
Welding Fume Extraction
Applications
Industrial Applications
Manufacturing and Fabrication
Maintenance and Repair Operations
Schools/Educational Facilities
Features
Self-cleaning mechanism is easy to use. Just push button on control panel to activate the pulse cleaning cycle that cleans the filter from the inside out. Weld fume particulate is removed from the filter and safely deposited in the particulate disposal drawer.
Particulate disposal bin provides easy and convenient access to empty out collected particulate. Handle releases drawer allowing it to slide out.
Cleaner Air - FILTAIR® fume extractors effectively clean welding fumes from the air. Combining nanofiber filter technology, longer lasting airflow, and an optimized design results in a more powerful fume extraction system.
MERV 15 Filter Rating - Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles such as those found in weld fumes.
Nanofiber Technology - Nanofibers use an exclusive media blend that features a surface layer of nanofibers about 1000 times thinner in diameter than a human hair.
Strong Suction Power - Powerful 875 CFM system delivers long-lasting airflow throughout the life of the filter.
Preassembled 10 foot arm for fast, easy setup.
Durable bell-shaped hood features a convenient 360 degree rotation for unlimited positioning. One of the largest in the industry, FILTAIR's extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means less hood adjustments for longer welds.
Filter pressure gauge with easy-to-read color code indicates when pressure drop increases and cartridge filter needs to be cleaned.
Saves Operator Downtime - From easy set up, simple front panel, quick, convenient, and tool-free filter replacement, FILTAIR® is easy to use.
Durable Construction - Industrial-grade metal cabinet and extraction arm withstand the demands of everyday welding.
Specs
