Miller FILTAIR® Welding Fume Extractor SWX-D 951514

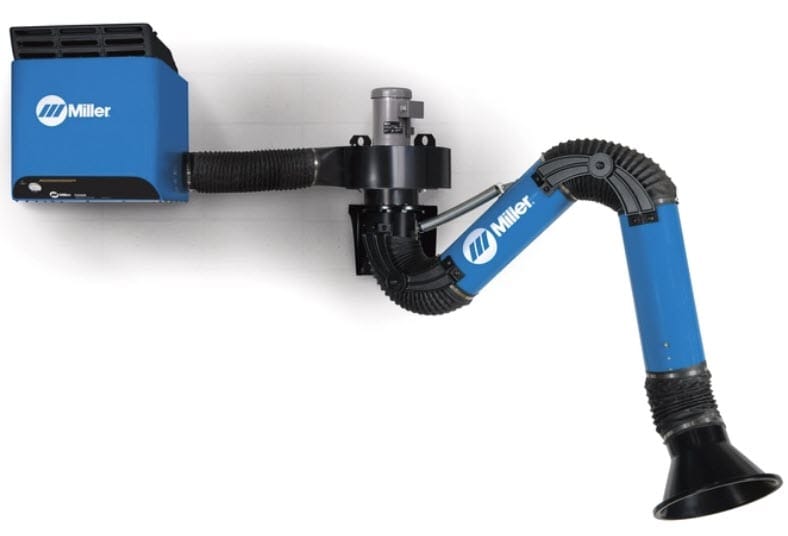

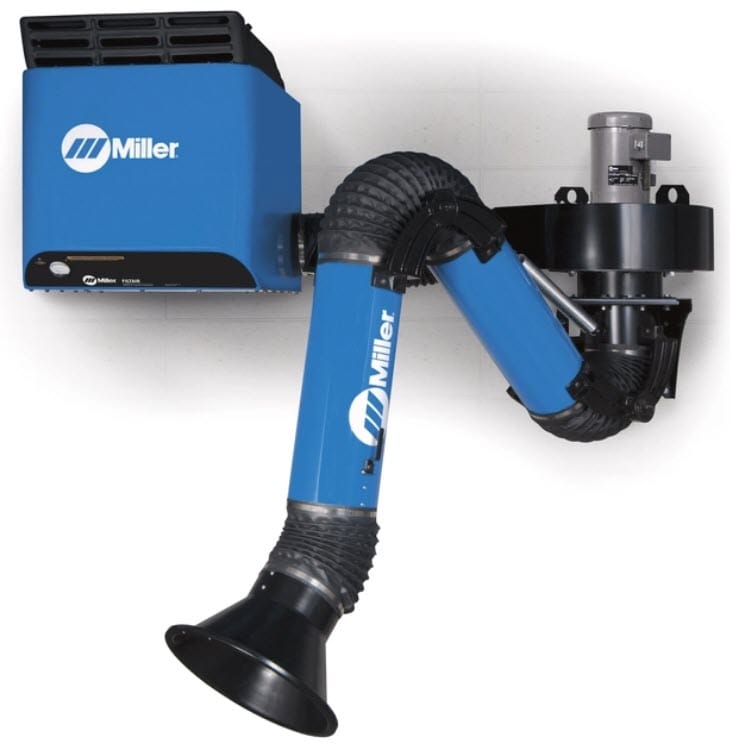

The Miller® FILTAIR® SWX-D Welding Fume Extractor with 10 foot arm is a wall or column mounted source capture system with disposable FilTek™ filter for extended filter life, increased efficiency and cleaner air. It is a stationary system that is intended for light duty or intermittent welding applications. Disposable MERV 15 rated filter traps 95% of all welding fume particulates. The SWX-D's powerful motor and large bell-shaped hood combine to move 875 CFM (cubic feet per minute) of air. The system runs on standard 115V input power and is ideal for schools and training facilities, light manufacturing and fabrication shops.
Process
Welding Fume Extraction
Applications
Industrial Applications
Manufacturing and Fabrication
Maintenance and Repair Operations
Schools/Educational Facilities
Features
Cleaner Air - FILTAIR® fume extractors effectively clean welding fumes from the air. Combining nanofiber filter technology, longer lasting airflow, and an optimized design results in a more powerful fume extraction system.
MERV 15 Filter Rating - Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles such as those found in weld fumes.
Nanofiber Technology - Nanofibers use an exclusive media blend that features a surface layer of nanofibers about 1000 times thinner in diameter than a human hair.
Strong Suction Power - Powerful 875 CFM system delivers
long-lasting airflow throughout the life
of the filter.
Preassembled 10 foot arm for fast, easy setup.
Durable bell-shaped hood is one of the largest in the industry, FILTAIR's extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means less hood adjustments for longer welds.
Filter pressure gauge with easy-to-read color code indicates when pressure drop increases and cartridge filter needs to be replaced.
Saves Operator Downtime - From easy set up, simple front panel,
quick, convenient, and tool-free filter
replacement, FILTAIR® is easy to use.
Durable Construction - Industrial-grade metal cabinet and
extraction arm withstand the demands
of everyday welding.
Approximate wall space needed:
Single:
6 ft (1.83 m) wide x 5 ft 10 in (1.78 m) high
Specs
Comes complete with
SWX-D Cabinet
FEB-1 Blower
FilTek™ XL disposable filter
Single 10 ft. Extraction Arm
Mounting Bracket for blower/arm
