Miller Fume Extractor FILTAIR SWX-S 951620

Code: 951620

Skip to product information
1 of 1

Cyberweld Price $11,839.00
Cyberweld Price $11,839.00
Mfg Industrial Price: $14,047.91
(You Save $2,208.91)
Finance Options:

This item qualifies for free standard shipping.

Arm Length:4.5 ft

-
+
FAST & FREE SHIPPING On All Orders Over $99

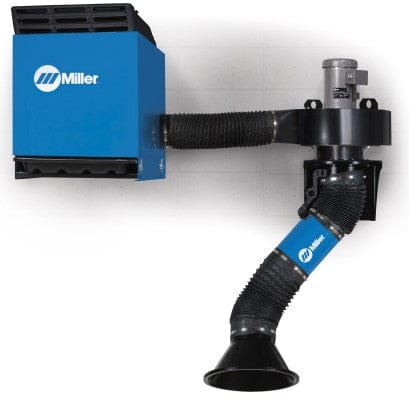

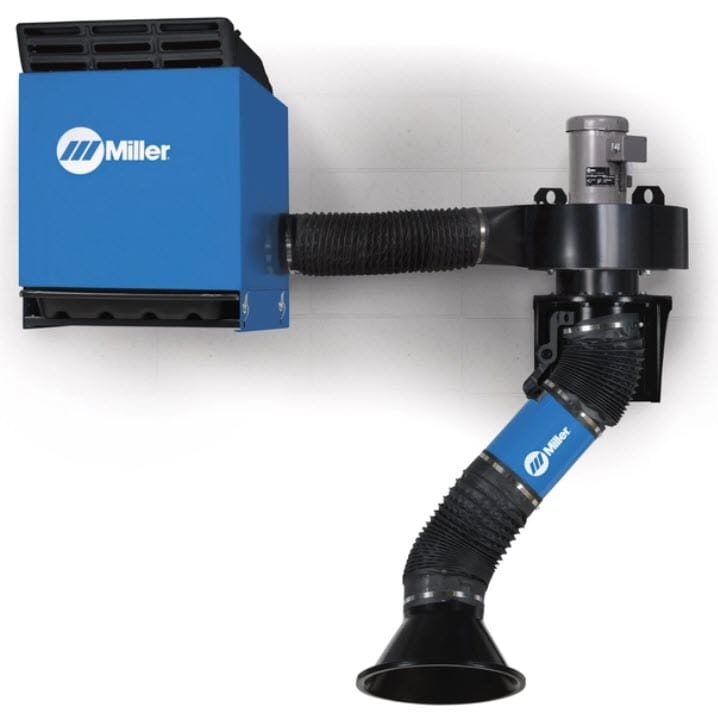

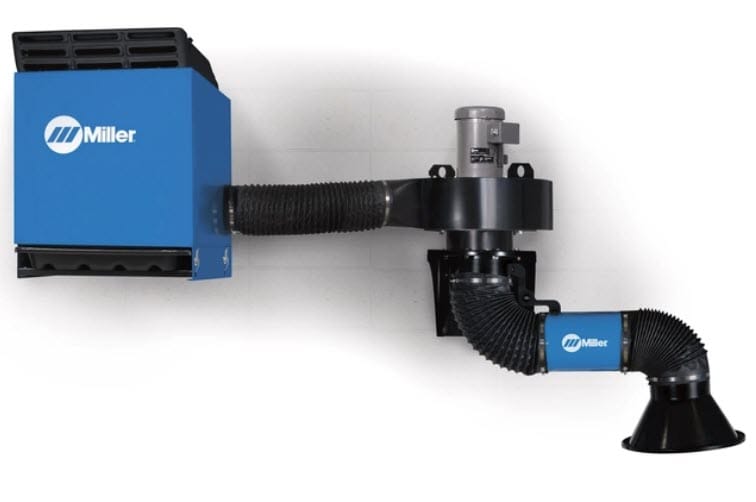

Miller® FILTAIR® Welding Fume Extractor SWX-S Telescoping Arm 951620

The Miller® FILTAIR® SWX-S Welding Fume Extractor with 4.5 foot telescoping arm is a wall or column mounted source capture system with self-cleaning FilTek™ filter for extended filter life, increased efficiency and cleaner air. Telescoping arm is expandable from 3 to 4.5 feet and is ideal for small spaces. Innovative filter cleaning mechanism uses a burst of reverse air flow to clean fume particulates from filter surface. A fast, one minute cleaning cycle is all it takes to remove weld fume particles from the filter.

The SWX-S is a stationary system that is intended for industrial welding applications and can operate with multiple extraction arms.. Self-cleaning MERV 15 rated filter traps 95% of all welding fume particulates. The SWX-S's powerful motor and large bell-shaped hood combine to move 875 CFM (cubic feet per minute) of air. The system runs on standard 115V input power and is ideal for schools and training facilities, manufacturing and fabrication shops.



Process
  • Welding Fume Extraction

    Applications
    Industrial Applications
    Manufacturing and Fabrication
    Maintenance and Repair Operations
    Schools/Educational Facilities



    Features
  • Self-cleaning mechanism is easy to use. Just push button on control panel to activate the pulse cleaning cycle that cleans the filter from the inside out. Weld fume particulate is removed from the filter and safely deposited in the particulate disposal drawer.
  • Particulate disposal bin provides easy and convenient access to empty out collected particulate.
  • Cleaner Air - FILTAIR® fume extractors effectively clean welding fumes from the air. Combining nanofiber filter technology, longer lasting airflow, and an optimized design results in a more powerful fume extraction system.
  • MERV 15 Filter Rating - Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles such as those found in weld fumes.
  • Nanofiber Technology - Nanofibers use an exclusive media blend that features a surface layer of nanofibers about 1000 times thinner in diameter than a human hair.



  • Strong Suction Power - Powerful 875 CFM system delivers long-lasting airflow throughout the life of the filter.
  • Preassembled arm for fast, easy setup.
  • Extendable 3 to 4.5 foot telescopic arm ideal for small spaces.



  • Durable bell-shaped hood is one of the largest in the industry, FILTAIR's extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means less hood adjustments for longer welds.
  • Filter pressure gauge with easy-to-read color code indicates when pressure drop increases and cartridge filter needs to be cleaned.
  • Saves Operator Downtime - From easy set up, simple front panel, quick, convenient, and tool-free filter replacement, FILTAIR® is easy to use.
  • Durable Construction - Industrial-grade metal cabinet and extraction arm withstand the demands of everyday welding.
  • Approximate wall space needed:
    Single: 6 ft (1.83 m) wide x 5 ft 10 in (1.78 m) high

    Specs








    Comes complete with
  • SWX-S
  • FEB-1 Blower
  • Single extendable 3.5 to 4 ft. Extraction Arm
  • Filtek™ XL Self-Cleaning Filter
  • Mounting Bracket for blower/arm

  • Miller FILTAIR SWX Light Kit 300763

    Miller FILTAIR SWX Light Kit 300763

    Regular price
    $892.00
    Lowest Internet Price
    Mfg Industrial Price: $1,004.99
    $892.00
    You Save $112.99

    Miller® FILTAIR® SWX Hood Light Kit is a field installed light with built-in arc sensor.

    Miller Filtair FilTek XL Self-Cleaning Filter 300540

    Miller Filtair FilTek XL Self-Cleaning Filter 300540

    Regular price
    $779.00
    Lowest Internet Price
    Mfg Industrial Price: $924.26
    $779.00
    You Save $145.26

    Genuine Miller® FILTAIR® FilTek™ XL self-cleaning replacement filter for your Miller MWX-S or SWX-S series fume extractor.
