Miller H500 Welding Harness - Back D-Ring H5WS2

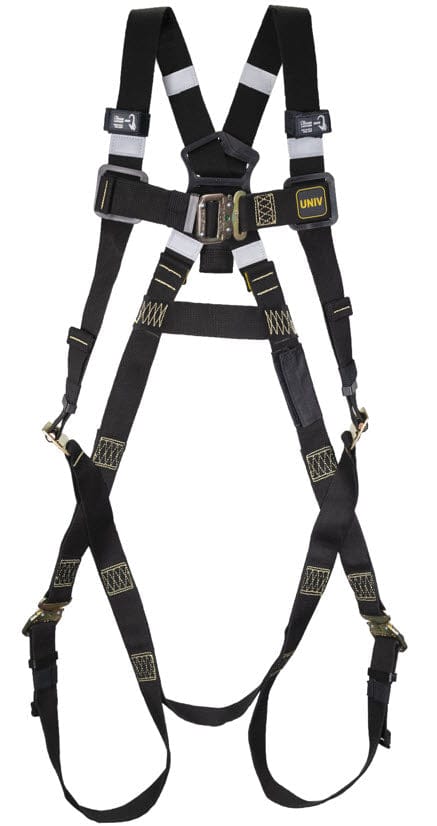

Miller® H500 Welding Harness - Back "D" Ring H5WS2

Genuine Miller® Fall Protection H5WS2 series welding harness features FR (flame retardant) webbing with back "D" ring. The FR aramid webbing flexes to offer superior comfort around the shoulders and legs. Alloy steel "D" ring provides a secure anchor point for OPTIONAL lanyards or a self-retracting lifeline (SRL). Quick-connect buckles at the legs and chest allow for easy on/off.

The H500's inherently flame retardant para-aramid and meta-aramid fibers maintain their FR properties for the life of the harness, unlike FR "treated" harnesses. Whether your application calls for welding, heating or cutting at height, the Miller H500 welding harness stands up to heat, sparks and flames. It is OSHA and CSA rated for user weights up to 420 pounds. It is ANSI rated for users up to 310 pounds.

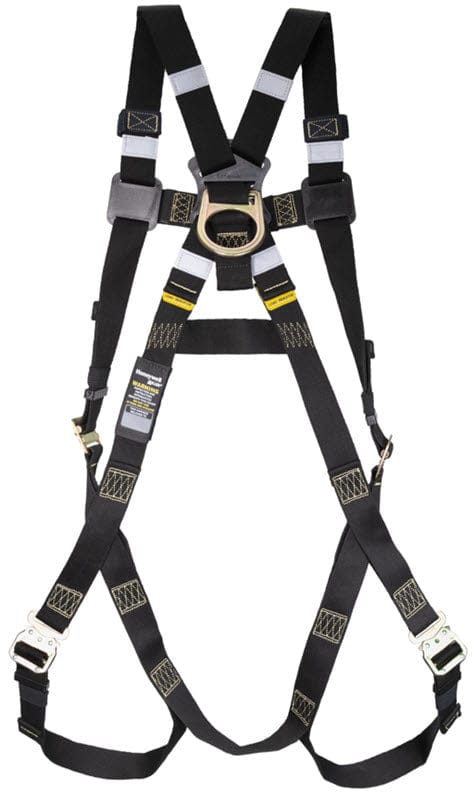

NOTE: H5WS2 series harnesses have Back "D" ring only (Series H5WS1 pictured above).

Features

Specially formulated Heat Resistant and flame-retardant (FR) webbing
Flexes to accommodate movement and body contours for optimum comfort around legs and shoulders.

User-friendly resettable lanyard keeper
Allows users to attach lanyard when not in use.

Optimized label protection
With self-contained and practical Velcro®-label FR material pouch.

Easy
Visual sizing

Outside
Personalization tag

Dedicated SRL web link
For easy attachment of personal SRLs

Clearly identifiable smart impact indicators
For hassle-free inspection.

Improved visible stitch pattern
For easy inspection.

Quick Connect (QC) buckles
On legs and chest.

Maximum worker weight capacity
Rated OSHA and CSA 420 lb. and ANSI 310 lb.

Meets
OSHA1926.502

Certified
ANSI Z359.11-2021 and CSA Z259.10- 2018 CLASS A&AP

Available sizes
S/M, L/XL (Universal), 2XL/3XL
