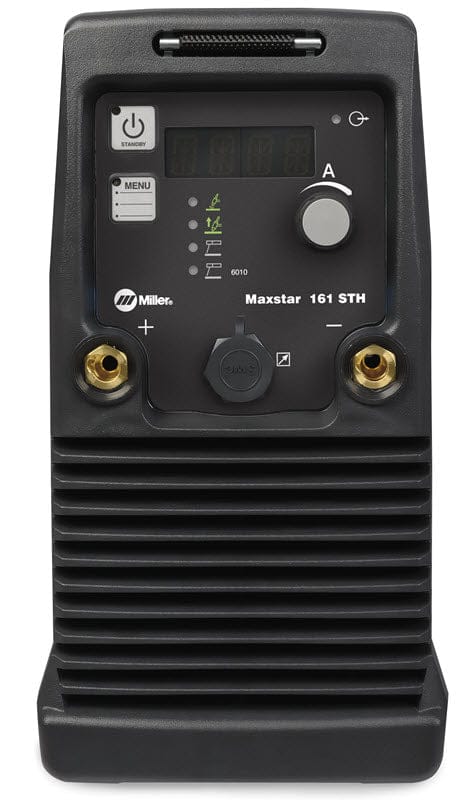

Miller Maxstar 161 STH TIG/Stick Package w/Remote Control 907711001

Miller Maxstar® 161 STH TIG/Stick Package With Remote Control 907711001

Miller Maxstar® 161 STH is a DC TIG/Stick Package that features pulsed TIG welding and comes complete with fingertip remote amperage control, TIG torch with accessories and X-CASE™ transportation/storage case. It is capable of up to 160 amps of welding output. The 161 STH weighs only 13 pounds and operates on either 120 volt or 240 input power. The Maxstar 161 STH offers both Lift-Arc™ and High Frequency arc starts. Use Lift-Arc™ when TIG welding around electronic equipment (like computers and phone systems) that might be sensitive to high frequency interference. Use High Frequency arc starts to avoid surface contamination of the tungsten welding electrode.

The Maxstar 161 STH is capable of DC Puled TIG welding. Pulse range is adjustable from 0-150 Hz to allow precise control of heat and arc stability, especially on thin material. The 161 STH also offers superior stick arc performance, even when using E6010. It has Miller's Auto-Line™ technology that automatically adjusts for input voltages ranging from 120 volts to 240 volts without manual linking.

The Maxstar 161 STH TIG/Stick Package comes complete with 150 amp TIG torch with accessories, RCCS-6M fingertip remote amperage control, flow gauge regulator with gas hose, electrode holder, work clamp and all necessary cables. It also carries Miller's True Blue® 3 year warranty.



Process

DC TIG (GTAW)

DC Pulsed TIG (GTAW-P)

Stick (SMAW)

Applications
Process pipe
Dairy industry
Food/beverage industry
Restaurant/kitchen repair
Experimental aircraft
Shipboard installation/repair
Maintenance repair

Features

Auto-Line™ - Allows for any input voltage hookup (120 - 240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

Digital meter for more precise control when presetting or monitoring welding amperage.

DC Pulse TIG welding - Pulsing can increase puddle agitation, arc stability and travel speeds while reducing heat input and distortion.

Selectable trigger configuration allows the operator to choose standard or 2T trigger method to meet the application.

Lift-Arc™ provides TIG arc initiation without the use of high frequency.

High frequency for non-contact arc initiation that reduces tungsten and material contamination.

Pro-Set™ eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.

Full function remote control capability for precise amperage control for critical welds on thin materials (6-pin fingertip or foot control available - sold separately.)

Built-in gas solenoid eliminates the need for a bulky torch with a gas valve.

Portable in the shop or at the job site - at 13.2 lb the shoulder strap allows the end user to easily move from location to location.

Fan-On-Demand™ - power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.

Thermal overload protection - helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.

Single amperage range - allows operator to accurately set amperage on both 120 or 240 volt primary power.

Hot Start™ adaptive control - provides positive arc starts without sticking.

Low OCV stick is a simple design that reduces the open circuit voltage to 12 - 16 volts when the welding power source is not in use. This circuit design is now built into the Maxstar 161 S eliminating the need for add-on voltage reducers.

Power factor corrected (PFC) - for optimum performance especially on 120 volts - reduces nuisance breaker tripping.

Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.

Superior stick arc performance even on the difficult-to-run electrodes like E6010.



NOTE: This is a DC welder ONLY. It CANNOT weld aluminum.

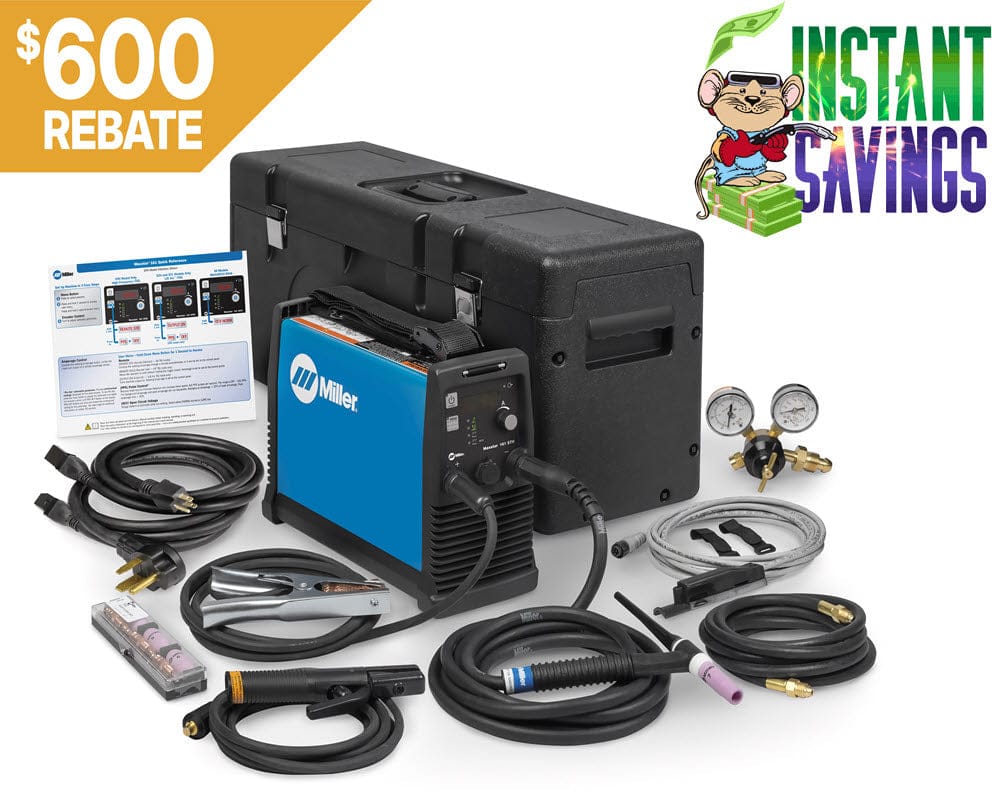

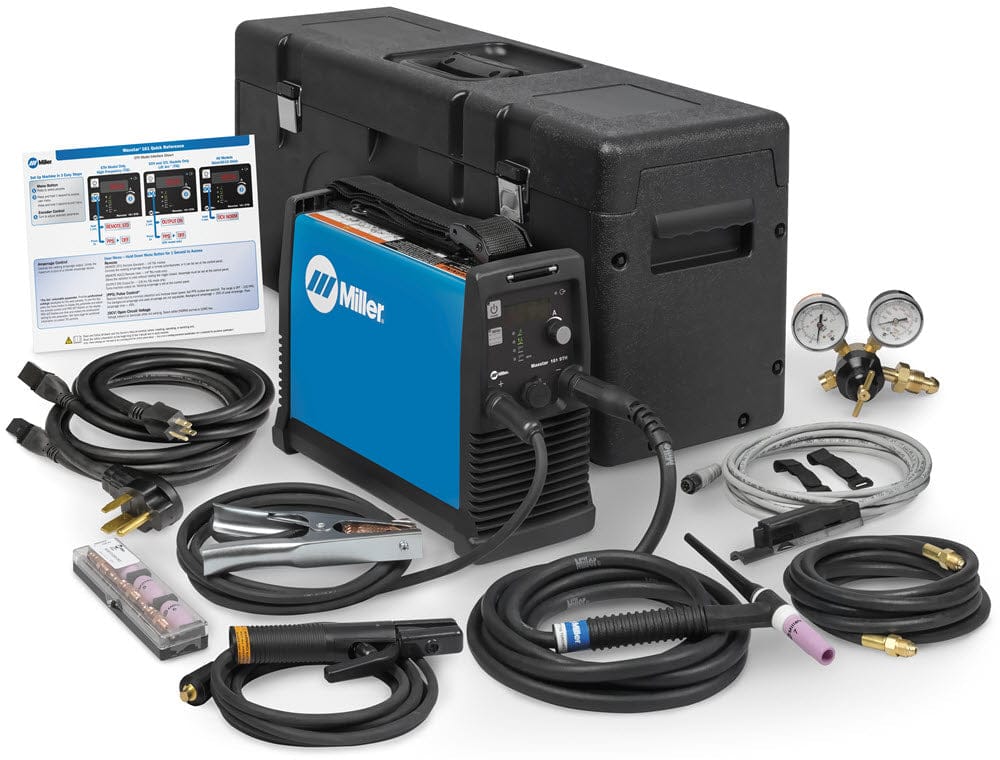

Comes complete with

Maxstar 161 STH welder

6.5 ft. (2 m) 120-volt and 240-volt power cords

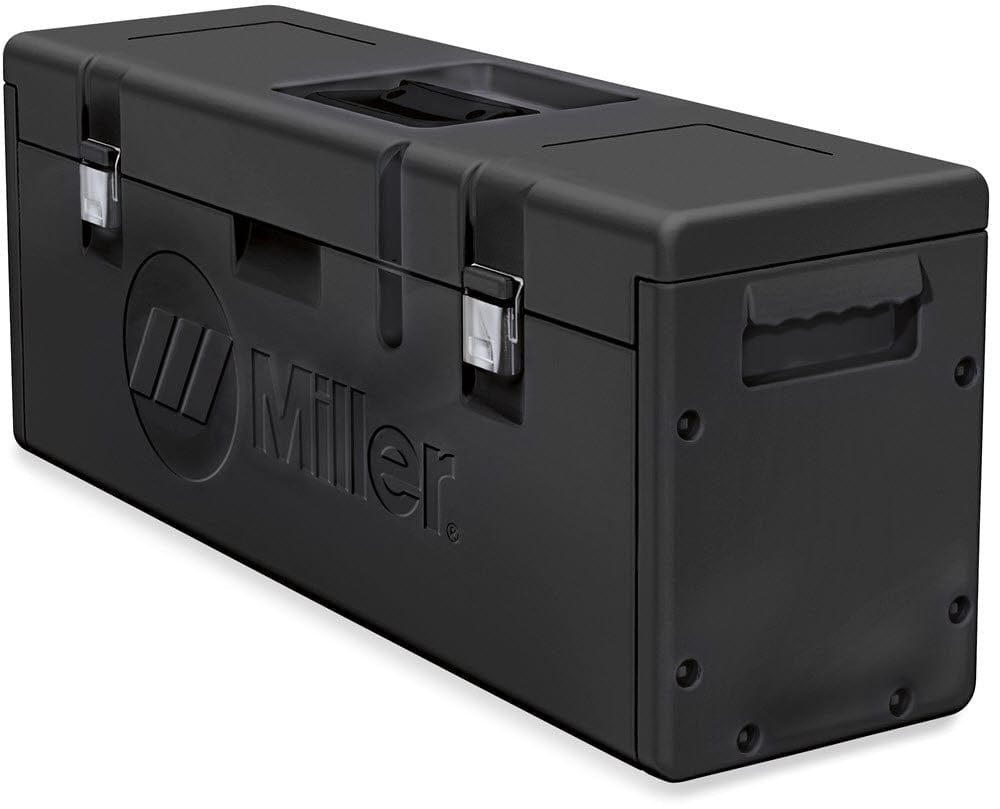

X-CASE™ provides protection in transport and storage

RCCS-6M remote fingertip control (195184)

Weldcraft™ A-150 (WP-17) 12.5 ft. (3.8 m) TIG torch with connector

Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector

Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector

Flow gauge regulator with gas hose

AK2C accessory kit with short back cap, nozzles, collets, collet bodies, and 2% ceriated tungsten electrodes (.040, 1/16, and 3/32 in.)

Handle/shoulder strap

FREE Miller® AK3GL Gas Lens consumable kit

PLUS get a $600 cash rebate from Miller® with the purchase of this Miller® Maxstar® 161 TIG welder. Rebate form must be submitted online HERE within 30 days of original purchase. Offer expires 12/31/24.

Earn additional rebates when you purchase additional Miller® branded accessories or Hobart® filler metals.
