Miller Multimatic™ 220 AC/DC 907757

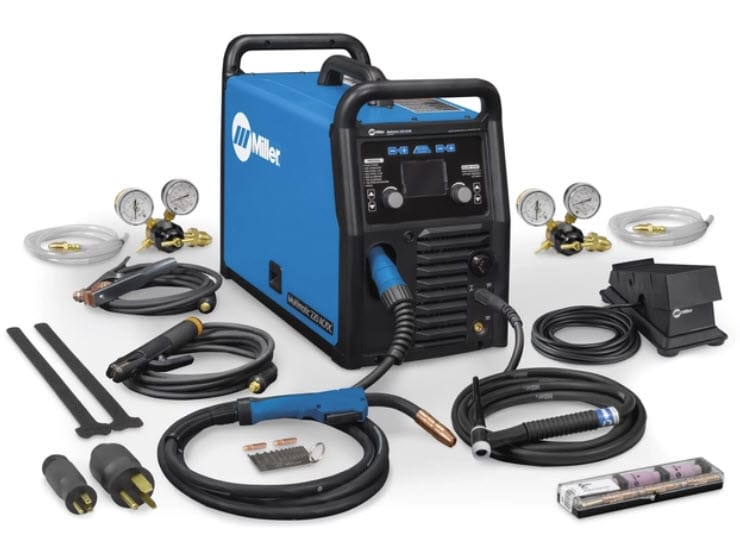

The Miller Multimatic™ 220 AC/DC is a true multi-process welder that is capable of AC (aluminum) TIG welding. The Multimatic 220 AC/DC produces up to 230 amps of MIG welding output and up to 210 amps of TIG welding output. The complete portable MIG, Stick and AC/DC TIG welding package comes with Miller® MDX™-100 MIG welding gun, Weldcraft™ 150 amp TIG torch with accessories, remote foot control, two argon flow regulators with hoses, stick electrode holder and ground clamp.
The Multimatic™ 220 AC/DC comes standard with a color LCD screen and features Miller's Auto-Set™ Elite. Auto-Set™ Elite sets MIG, Stick and TIG welding parameters automatically, all you need to do is enter metal thickness and welding wire or tungsten electrode diameter. It also allows you to fine tune weld settings manually to suit your individual preferences. The 220 AC/DC runs on either 120 volt or 240 volt input power, using Miller's exclusive multi-voltage plug (MVP™) and weighs only 56 pounds.
Processes
MIG (GMAW)
Flux Cored (FCAW)
AC/DC TIG (GTAW)
Stick (SMAW)
Features
Multiprocess capabilities allow for MIG,
flux-cored, AC/DC TIG and stick welding. The Multimatic 220 AC/DC comes equipped with all accessories to
weld any process, unlike other machines where you need to purchase
additional accessories.
QuickTech™ technology - automatically determines the polarity. Work is always connected to the bottom right receptacle. MIG gun and TIG torch can stay connected at the same time. It automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes, eliminating the
need to manually change processes. QuickTech™ automatically recalls the settings from the last process used.
Auto-Set™ Elite can be used on multiple materials
and multiple processes with the ability to fine tune
your settings. Easy to set up and use.
Pro-Set™ (TIG and stick manual modes) - eliminates the guesswork when setting weld
parameters. Simply adjust control until
Pro-Set appears on the display and the
number turns blue.
AC Balance (AC TIG) - controls the cleaning action (Pro-Set 75%)
AC Frequency (AC TIG) - controls the width of the arc cone (Pro-Set 120 Hz)
Pulse (DC TIG) - helps focus the arc for increased stability, penetration
and travel speed (Pro-Set 100 Hz)
DIG (Stick) - lets you tailor arc characteristics for a wide range of
applications (Pro-Set 30% 7018 electrodes)
Intuitive color LCD user interface makes it
quick and easy to adjust parameters.
Multi-voltage plug (MVP™) allows you to connect
to 120 or 240 V power receptacles without the
use of any tools - choose the plug that fits the
receptacle and connect it to the power cord
Angled wire drive with Quick Select™ drive roll
for smooth feeding and quick wire changes.
Smooth-Start™ for consistently smooth,
spatter-free MIG starts.
Two shielding gas connections - so both
gases can be left connected to the machine,
no switching needed. One connection for MIG
gas and one for TIG gas.
Fan-On-Demand™ power source cooling system
operates only when needed, reducing noise,
energy use and the amount of contaminants
pulled through the machine.
Thermal overload protection automatically
shuts the power source down if airflow through
the unit is blocked or the duty cycle is exceeded.
INCLUDED TIG
Kit - gives you everything
you need for remote
TIG welding with the
Multimatic 220 AC/DC. Includes RFCS-14HD remote foot control, Weldcraft® 150-amp WP17 TIG torch with 25mm Dinse connector, AK-2 torch accessory kit, two flow regulators and gas hoses.
OPTIONAL Spoolmate™
100 OR Spoolmate™ 150 direct-connect spool
gun. The Spoolmate 100 is ideal for running 4043 aluminum and solid MIG wire sizes .023 to .035 diameter. The Spoolmate 150 runs both 5356 and 4043 aluminum and solid MIG wire sizes .030 to .035 diameters
Specs
Comes complete with
Multimatic™ 220 AC/DC multi-process welder
6.5 ft. (2 m) power cord with MVP plugs
for 120 V and 240 V
10 ft. (3 m) MDX™-100 MIG gun and cable
assembly
13 ft. (4 m) cable electrode holder and
25 mm Dinse-style connector
10 ft. (3 m) work cable with clamp and
25 mm Dinse-style connector
2 - Flow gauge regulators and gas hoses for
argon and AR/CO2 mix
Hobart® spool of .030 in. (0.8 mm)
solid wire
Two contact tips for .030 in. (0.8 mm) wire
Quick Select™ drive roll for .024 in.
(0.6 mm) or .030/.035 in. (0.8/0.9 mm)
solid wire, and .030/.035 in.
(0.8/0.9 mm) flux-cored wire
Weldcraft™ A-150 TIG torch with flow-through
Dinse-style connector
RFCS-14HD foot control
AK2C TIG torch accessory kit
Material thickness gauge #229895
Hook-and-loop cord wraps
FREE Miller® Digital Performance™ auto-darkening welding hood.
FREE Hobart® Fabshield® 21B 2 lb. spool .035 E71T-11 flux-cored welding wire.
Get a FREE Miller® Digital Performance™ Black auto-darkening welding helmet PLUS a FREE 2 lb. spool of Hobart® Fabshield® 21B .035 E71T-11 flux-cored welding wire with purchase of this Multimatic™ 220 AC/DC multi-process welder. Expires 6/30/23. (No substitutions allowed.)
Digital Performance™ Features
ClearLight™ lens technology optimizes contrast
and clarity in welding and light states - reducing eye strain and operator fatigue
Digital Controls With Three Operating Modes -
- Weld Mode™ Shades #8 - 13
- Cut Mode™ Shades #5 - 8
- Grind Mode - Light State #3
Improved headgear features additional adjust-ability settings for better fit & comfort
Quick-release front cover lens assembly
Comes complete with
5 outside cover lenses
2 inside cover lenses
Helmet bag
Three year warranty
Fabshield® 21B Features
E71T11 Self-Shielded Wire - no shielding gas needed
.035 wire diameter
Excellent for general purpose carbon steel welding applications.
Works well on galvanized steel.
All-position, single or multiple pass

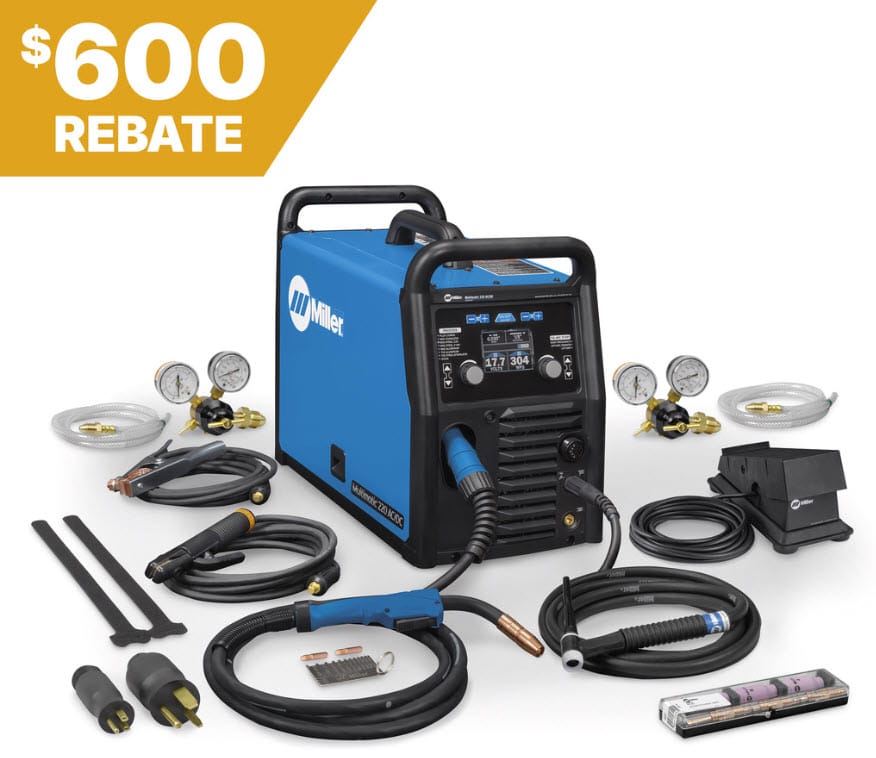

PLUS get a $300 cash rebate from Miller® with the purchase of this Miller® Multimatic™ 220 welder. Rebate form must be submitted online HERE within 30 days of original purchase. Offer expires 6/30/23.
Earn additional rebates when you purchase additional Miller® branded accessories or Hobart® filler metals.
