Miller PAPR II with T94i-R XL 292755

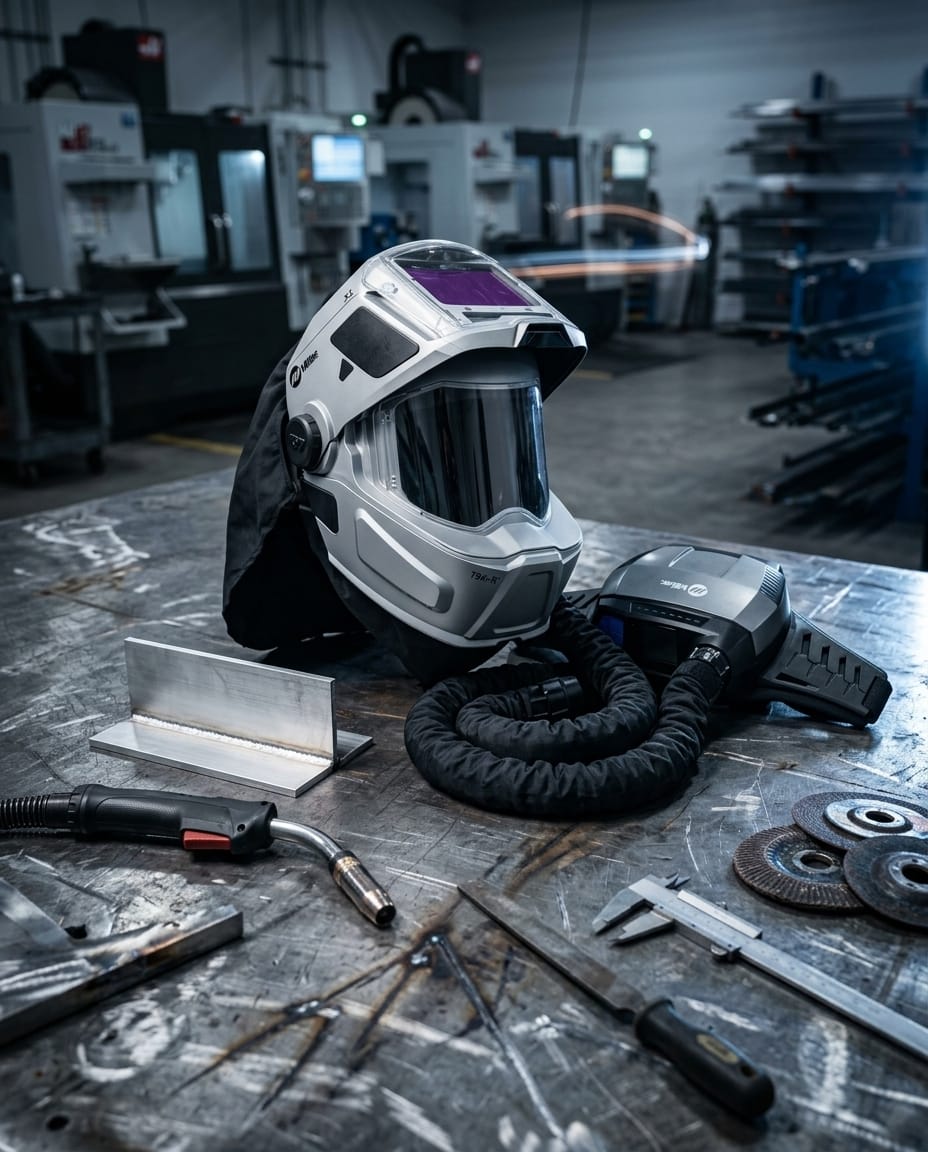

Miller® PAPR II with T94i-R™ XL Auto Darkening Welding Helmet 292755

Genuine Miller® PAPR II (Powered Air Purifying Respirator) with T94i-R™ XL welding helmet comes complete with improved second generation 2 blower motor and features a huge 13 square inch viewing area. The T94i-R XL welding hood has an integrated High-Definition View (HDV) grinding shield, Miller's ClearLight™ 2.0 lens technology and Dualtec™ air manifold. The ClearLight™ 2.0 auto-darkening lens offers ultra-clear optics with more realistic color hues in both light and dark states. Patent-pending Dualtec™ air manifold has six-point air distribution system that increases perceived cooling and operator comfort. High-Definition View grinding shield and welding lens cover provide a sharp, detailed view of the work piece at any angle, with minimal distortion.

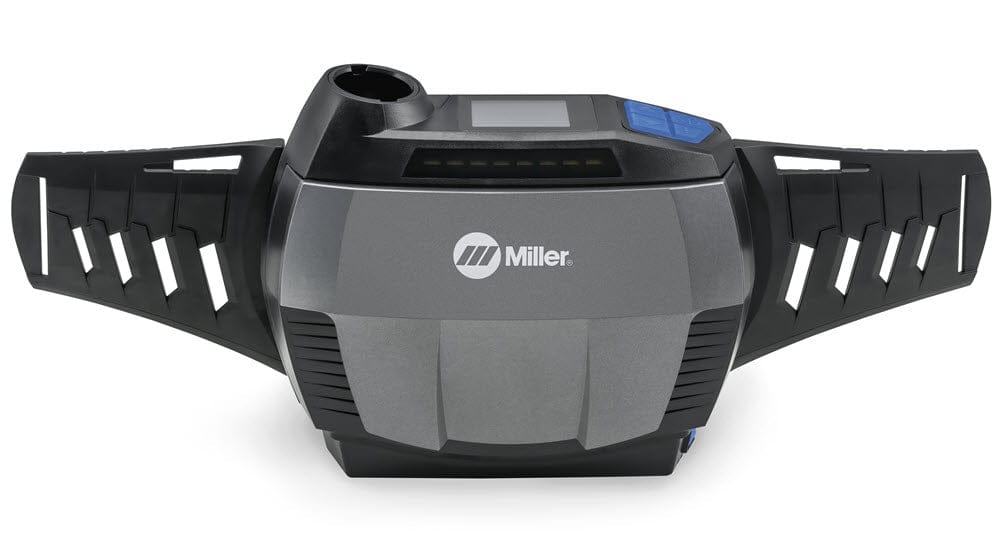

The Gen. II PAPR blower motor weighs only 3 lbs. and has three air speeds to better customize the user experience. Innovative shoulder straps help to evenly distribute the weight of the unit for more comfort and less fatigue. Audible and vibrating alarms alert user to low battery and reduced air flow. The HEPA filter captures airborne particles as small as 0.3 microns and filters out weld fumes, mists and dust. The system comes complete with blower assembly, HEPA filter, six pre-filters, spark guard, breathing tube, breathing tube cover, padded belt, comfortable shoulder straps, two lithium-ion batteries, battery charger, flowmeter, tool bag and T94-R helmet assembly.



Process

• Powered Air Purifying Respirator with Auto-Darkening Welding Helmet

  Applications
  Construction
  Manufacturing
  Fabrication
  Stainless Steel
  Flux Cored



  Features
• Patent-pending Dualtec™ manifold design
  6-point airflow distribution system maximizes perceived cooling through targeted air placement.
• Lightweight Gen. 2 blower design
  Provides all day comfort and reduces fatigue. Gen. 2 blower weight is just 3 lbs.
• Comfortable shoulder straps
  Distribute weight to provide a more comfortable and secure fit.
• Three air speeds
  Allow user to adjust the volume of air to maximize comfort in varied work conditions.
• HEPA Filter
  Captures airborne particles as small as 0.3 microns and filters out weld fumes, mists and dust.
• Color LCD Display
  Clearly displays fan speed, filter level, battery level and time of day.

• Audible and vibrating alarms
  Notify user of low battery and low airflow
• Low-profile design
  Reduces interference and allows for unrestricted movement.
• Lightweight lithium ion battery
  Provides up to 10 hours of battery life with no memory retention from frequent charging.
  Two batteries are included with package.
• Quick disconnect and swivel breathing tube
  Provides easy adjust ability to accommodate space restraints
• Flame-resistant cover
  Protects breathing tube from sparks and abrasion for extended life
• Flame-retardant, washable head seal
  With ultra-soft outer cuff enhances wear without causing skin irritation. Unique design can provide additional protection by covering the ears, or ease communication if placed in front of the ears.
• ClearLight™ 2.0 lens technology
  Provides advanced, high-definition optics for the most realistic view that's clearer and brighter - before, during and after every weld.




• High-Definition View (HDV) Technology
  Provides a sharp detailed view at any angle with minimal distortion. This is found in both the grinding shield and front welding lens cover.
• Aluminum heat shield
  Protects the digital lens in high amperage applications
• Matte silver shell reflects heat
  Keeps helmet and user cool
• Shade 5.0 side windows
  Enhance peripheral vision, amplifying sense of surroundings.
• Convenient quick release
  Provides easy access for front cover lens changes
• Digital Controls With Four Operating Modes -
  • Weld Mode™ Shades #8 - 13
  • Cut Mode™ Shades #5 - 8
  • Grind Mode - Light State #3
  • X-Mode™ Shades #8 - 13
• X-Mode™
  Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
• Half-shade lens adjustments
  Provides fine shade adjustment for optimized comfort and vision.
  Allow for precise lens adjustments based on the environment
• Infotrac™ 2.0
  Allows for monitoring of arc time and arc count
• Digital controls
  Easily allow welder to make precise lens adjustments to shade, delay and sensitivity.
• Memory function
  For easy switching between two preset customized memory settings.
• Integrated mag lens holder
• Lithium batteries with solar assist;
  Up to 3,000 hours of life
• Meets ANSI Z87.1-2020
  Most up-to-date safety standard

PAPR 2 Specs



Comes complete with

• Compact PAPR 2 blower unit
• T94i-R™ XL welding helmet with integrated grinding shield and head-seal
• HEPA filter
• Pre-filter
• Spark guard
• Padded belt
• Comfortable shoulder straps
• 2 - Lightweight, long-life lithium ion batteries
• Battery charger
• Air flow indicator
• Tool bag
