Miller Spoolmate 100 MIG Spoolgun 300371

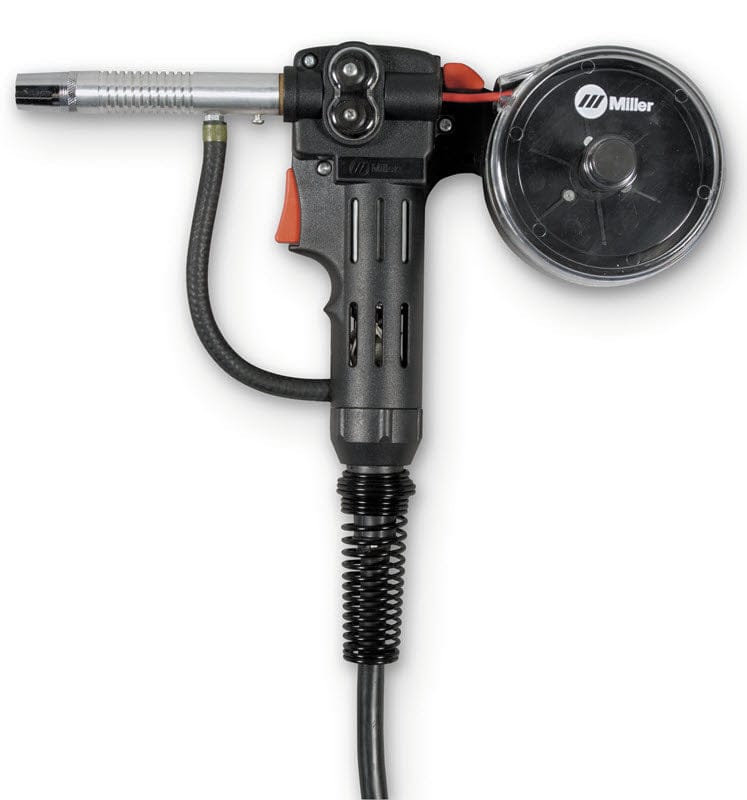

Miller® Spoolmate™ 100 MIG Spoolgun 300371

The Miller Spoolmate™ 100 MIG is a reliable and economical direct connect spool gun for Millermatic® 140, 180 and 211 MIG welders and Multimatic™ 200 and 235 multi-process welders. The Spoolmate 100 is excellent for feeding one pound spools of small diameter aluminum MIG welding wire.

Spoolmate™ 100 Series spool guns provide 12 ft (3.7 m) of cable reach and accessibility for smooth feeding of aluminum wire.



Processes

MIG (GMAW) for Aluminum Wire Size .030 to .035 in (0.8 to 0.9 mm)

MIG (GMAW) for Mild and Stainless Steel Wire Size .023 to .035 in (0.6 to 0.9 mm)

Home Hobbyist Applications

Aluminum Fabrication

Home Maintenance and Repair

Auto and Marine Repair

Features

Reliable and economical direct connect for Millermatic® 140 and 180 MIG welders after serial #LH210051N, Millermatic® 211 w/Auto-Set, Millermatic® Passport® Plus and Renegade™ 180 Spoolmate™ 100 Series spool guns provide 12 ft (3.7 m) of cable reach and accessibility for smooth feeding of aluminum wire.

Recessed contact tip for easier welding and prevention of burn back issues.

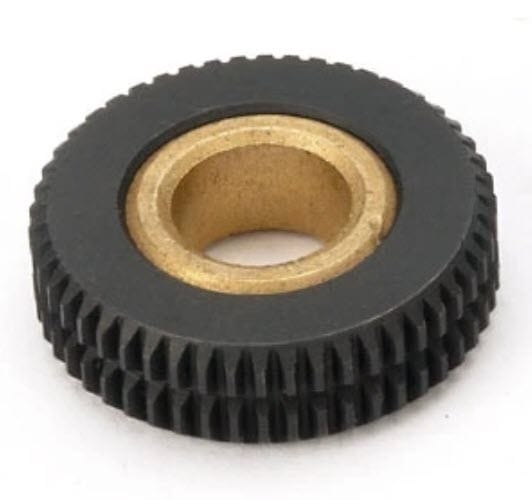

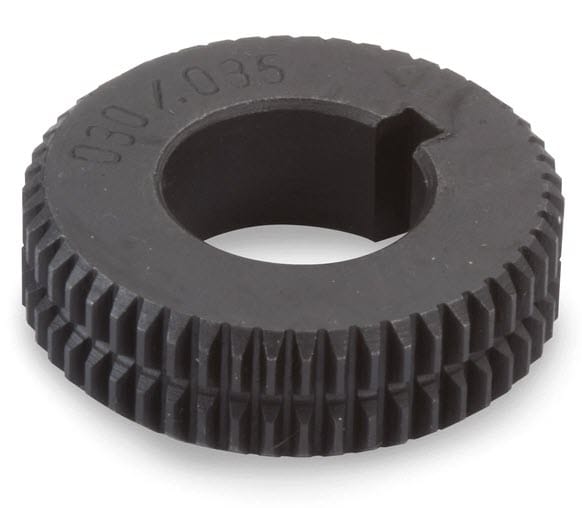

Dual V-knurled drive rolls for consistent feeding.

Adjustable drive roll tension for feeding different types of wire.

Adjustable pressure lever for easy loading and unloading of wire.

Heavy-duty drive motor and cast aluminum gearbox.

12 ft (3.7 m) cable with heavy-duty strain relief and direct connection.

Clear spool cover allows the user to see the amount of wire left before it runs out.

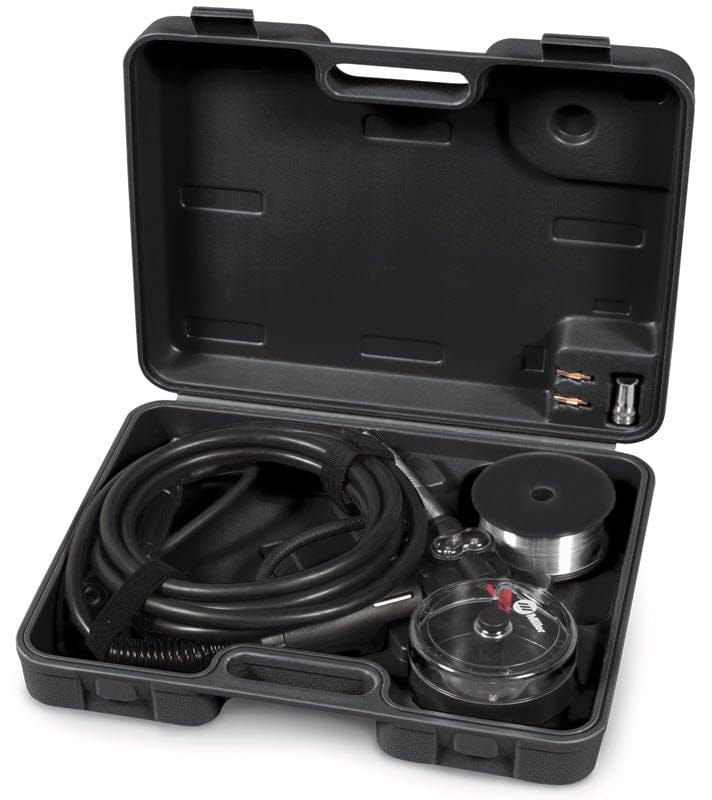

Convenient carrying case holds gun and cable, extra contact tips, nozzle, and wire (wire not included).



NOTE: The Spoolmate 100 is intended for Home/Hobbyist use ONLY - not production welding. Cyberweld does not recommend the Spoolmate™ 100 for aluminum MIG wires larger than .030 diameter when using a Millermatic® 140 MIG welder.

Comes Complete With

12 ft. (3.7m) cable

Custom carrying case

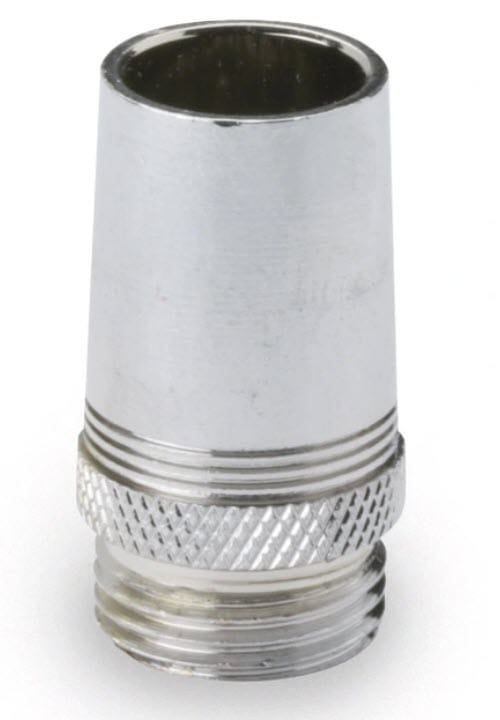

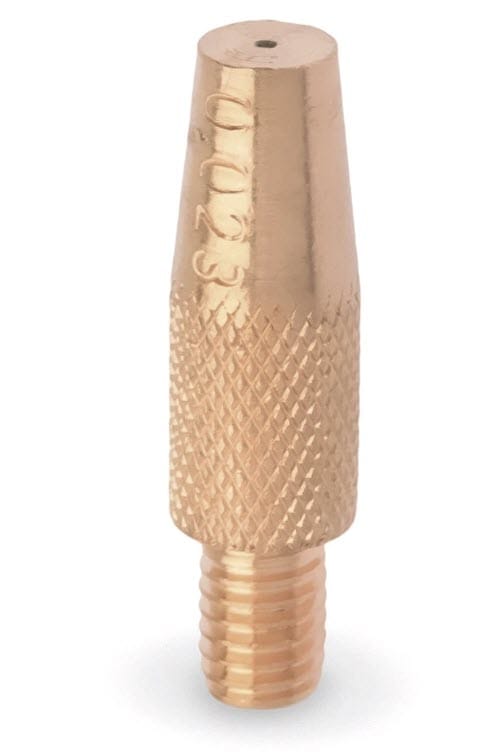

Extra contact tips and nozzle

Two FREE 1 lb. spools of Hobart® 4043 .035 diameter aluminum MIG welding wire.

Get two FREE 1 lb. spools of Hobart® MaxalMig® 4043 .035 diameter aluminum MIG welding wire with the purchase of this Spoolmate™ 100 spool gun. While supplies last. (No substitutions allowed.)

Hobart® ER4043 .035 Aluminum MIG Welding Wire - 1# Spool 404303504

1 lb. Spool - Genuine Hobart® ER4043 .030 diameter Aluminum MIG Welding Wire is a general purpose wire that is well-suited for welding 6XXX series aluminum. It is classified as AWS A5.10 ER4043 and is an all-position solid MIG wire with a low melting temperature and excellent corrosion resistance.

Applications
Welding 6xxx alloys
Automotive/motorcycle frames
Sports products - scooters/bicycles
General repair and maintenance

Features

Moderate strength (28 ksi typical)

Low melting temperature/high fluidity

Low welding smut and discoloration

Low ductility, formability, and lower toughness

Moderate electrical conductivity and thermal conductivity

Excellent corrosion resistance

Low shrinkage rate/reduced distortion

Low hot cracking sensitivity in most applications

Shielding Gas:
Argon 100%
Argon/Helium mixes for 1 inch + thick plate
