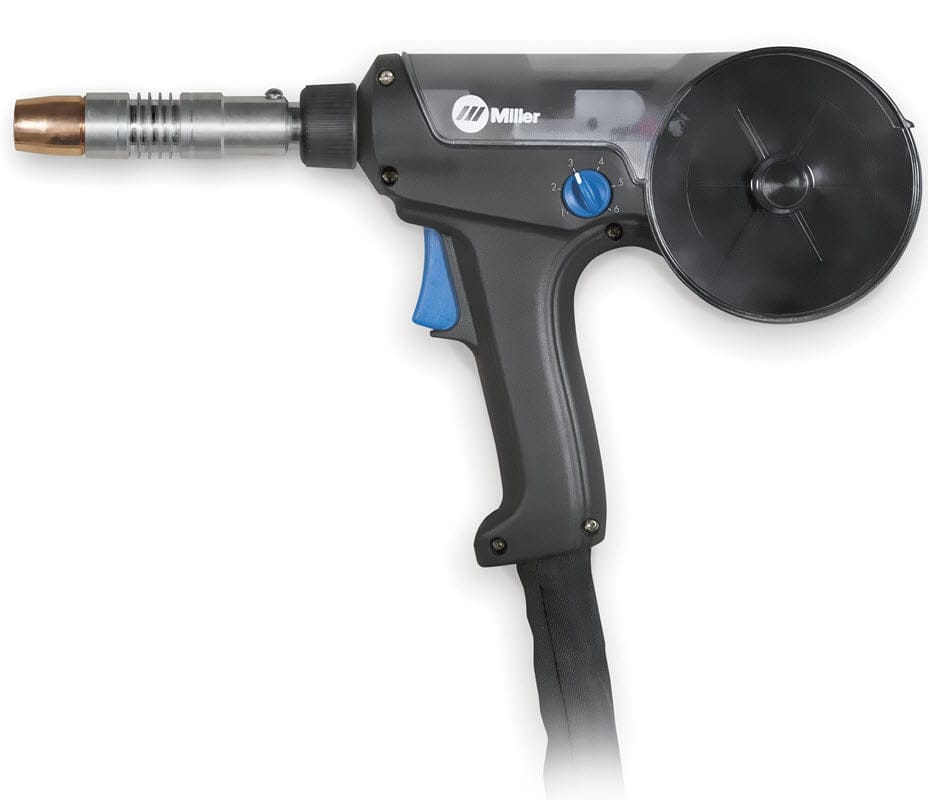

Miller® Spoolmate™ 200 MIG Spoolgun 300497
The Miller® Spoolmate™ 200 MIG Spoolgun is a highly reliable and economical spool gun with excellent feeding of aluminum MIG wrie. It is rated at 160 amps @ 60% duty cycle and weighs only 11 pounds (including the 20 ft gun cable). The Spoolmate 200 comes standard with heavy-duty gun barrel and is ideal for use with the Millermatic® 212 Auto-Set™.
Process
MIG welding (GMAW) with Aluminum and other soft alloy wires
Applications
Light Duty Applications
Aluminum Fabrication
Home Maintenance and Repair
Auto and Marine Repair
Features
Light Industrial spool gun rated at 160 amps at 60% duty cycle. Ideal for welding with .023 - .035 wires.
20 ft direct-connect cable with heavy-duty strain relief provides extended reach and accessibility to your work. Hooks up to the Millermatic® 212 Auto-Set, 251.
Wire speed adjustment located on the gun handle allows the user to conveniently change wire speed directly from the spool gun. Saves time by eliminating the need to walk back to the welding machine to change the wire feed settings.
Easy access to drive assembly reduces service time by allowing easy access to drive rolls or performing routine maintenance without disassembly of gun.
Built-in gas valve eliminates the need to purge long gas lines.
Gas lines routed internally means that the gas line won't get in the way of the work.
Hinged wire spool cover makes it easy to access wire compartment.
Pressure lever for easy loading and unloading of wire.
Adjustable drive roll tension for feeding different types of wire.

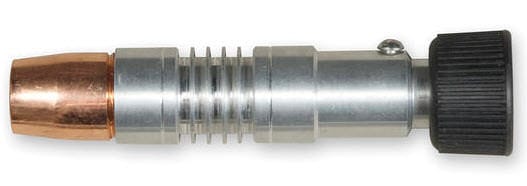

Comes standard with heavy duty barrel.

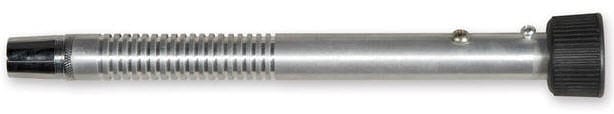

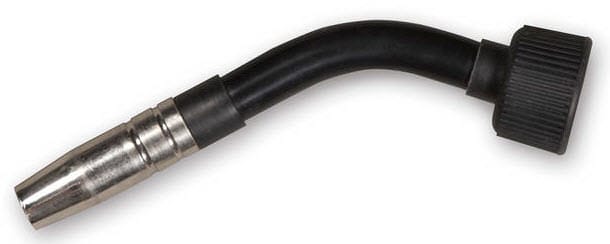

Easy to remove barrel options with several optional barrels that allow for welding in tight spaces and corners.
Direct-Connect compatible with the following Millermatic models:
Millermatic® 212 Auto-Set™
Millermatic® 251
Millermatic® 252
Comes complete with
20' cable and hose
Drive rolls
2 - .030 in contact tips
2 - .035 in contact tips
1 - nozzle.
Ten FREE 1 lb. spools of Hobart® 4043 .035 diameter aluminum MIG welding wire.
Get ten FREE 1 lb. spools of Hobart® MaxalMig® 4043 .030 diameter aluminum MIG welding wire with the purchase of this Spoolmate™ 200 spool gun. While supplies last. (No substitutions allowed.)Hobart® ER4043 .035 Aluminum MIG Welding Wire - 1# Spool 404303504
1 lb. Spool - Genuine Hobart® ER4043 .035 diameter Aluminum MIG Welding Wire is a general purpose wire that is well-suited for welding 6XXX series aluminum. It is classified as AWS A5.10 ER4043 and is an all-position solid MIG wire with a low melting temperature and excellent corrosion resistance.
Applications Welding 6xxx alloys
Automotive/motorcycle frames
Sports products - scooters/bicycles
General repair and maintenance
Features
Moderate strength (28 ksi typical)
Low melting temperature/high fluidity
Low welding smut and discoloration
Low ductility, formability, and lower toughness
Moderate electrical conductivity and thermal conductivity
Excellent corrosion resistance
Low shrinkage rate/reduced distortion
Low hot cracking sensitivity in most applications
Shielding Gas:
Argon 100%
Argon/Helium mixes for 1 inch + thick plate
