Miller Spoolmatic Pro 15A Spoolgun 301147

Code: 301147

Skip to product information
1 of 1

Cyberweld Price $2,545.00
Cyberweld Price $2,545.00
Mfg Industrial Price: $2,939.00
(You Save $394.00)
Finance Options:
This item qualifies for free standard shipping.

Select Your Free Zone Promo Bonus

-
+
FAST & FREE SHIPPING On All Orders Over $99

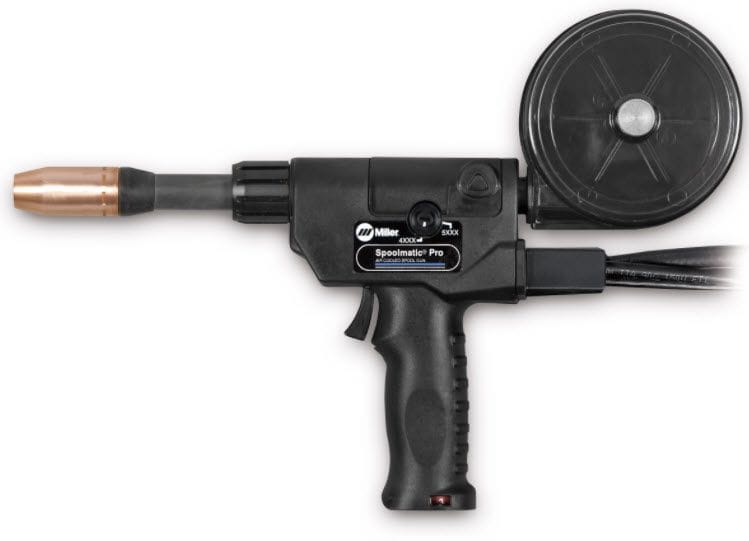

Miller® Spoolmatic® Pro 15A Spoolgun 301147

The Miller® Spoolmatic® Pro 15A Spoolgun is an enhanced version of the industry-standard Miller Spoolmatic 15A. The Spoolmatic Pro is a 200 amp, 100% duty cycle MIG spoolgun that is ideal for feeding one pound spools of aluminum or two pound spools of steel, stainless steel or silicon bronze MIG welding wire.

The Spoolmatic Pro 15A features improved motor drive design and has individual wire tension settings for both 4000 and 5000 series aluminum MIG wires. It also comes with a rotatable tool-less head tube that can be easily changed out for any of a new offering of Miller head tube designs to fit special welding applications



Process
  • MIG welding (GMAW) with Aluminum and other soft alloy wires
  • Pulsed MIG (GMAW-P) with pulsing power source

    Applications
    Heavy industrial applications
    Emergency Vehicles
    Recreational Vehicles
    Trucks and Trailers
    Boat/Yacht Building
    Sign Manufacturers
    Shipbuilding
    Tool Boxes
    Rail cars
    Fabrication

    Features
  • 15-foot (4.6 m) cable length
  • Built-in gas valve, rotatable canister, and isolated common knurled drive roll.
  • Easy access to drive assembly and removable tool-less head tube reduces service time by allowing a simple means of changing drive rolls and head tube or performing routine maintenance without disassembling gun.
  • Improved motor and drive design for better feedability and arc consistency while helping reduce downtime and maintenance costs associated with complex drive systems.
  • Aluminum-series-specific tension settings ensure smooth wire feeding performance with 4000 or 5000 series aluminum wires.
  • Direct-connect (no adapters needed), easy-to-rotate, self-seating head tube options in several different lengths and bend configurations



    Comes complete with
  • Eighteen FREE 1 lb. spools (1 case) of Hobart® 4043 .035 diameter aluminum MIG welding wire.




  • Get eighteen FREE 1 lb. spools (1 case) of Hobart® MaxalMig® 4043 .035 diameter aluminum MIG welding wire with the purchase of this Spoolmatic® Pro 15A spool gun. While supplies last. (No substitutions allowed.)

    Hobart® ER4043 .035 Aluminum MIG Welding Wire - 1# Spool H381808-R18

    1 lb. Spool - Genuine Hobart® ER4043 .035 diameter Aluminum MIG Welding Wire is a general purpose wire that is well-suited for welding 6XXX series aluminum. It is classified as AWS A5.10 ER4043 and is an all-position solid MIG wire with a low melting temperature and excellent corrosion resistance.

    Applications
    Welding 6xxx alloys
    Automotive/motorcycle frames
    Sports products - scooters/bicycles
    General repair and maintenance

    Features
  • Moderate strength (28 ksi typical)
  • Low melting temperature/high fluidity
  • Low welding smut and discoloration
  • Low ductility, formability, and lower toughness
  • Moderate electrical conductivity and thermal conductivity
  • Excellent corrosion resistance
  • Low shrinkage rate/reduced distortion
  • Low hot cracking sensitivity in most applications

    Shielding Gas:
    Argon 100%
    Argon/Helium mixes for 1 inch + thick plate

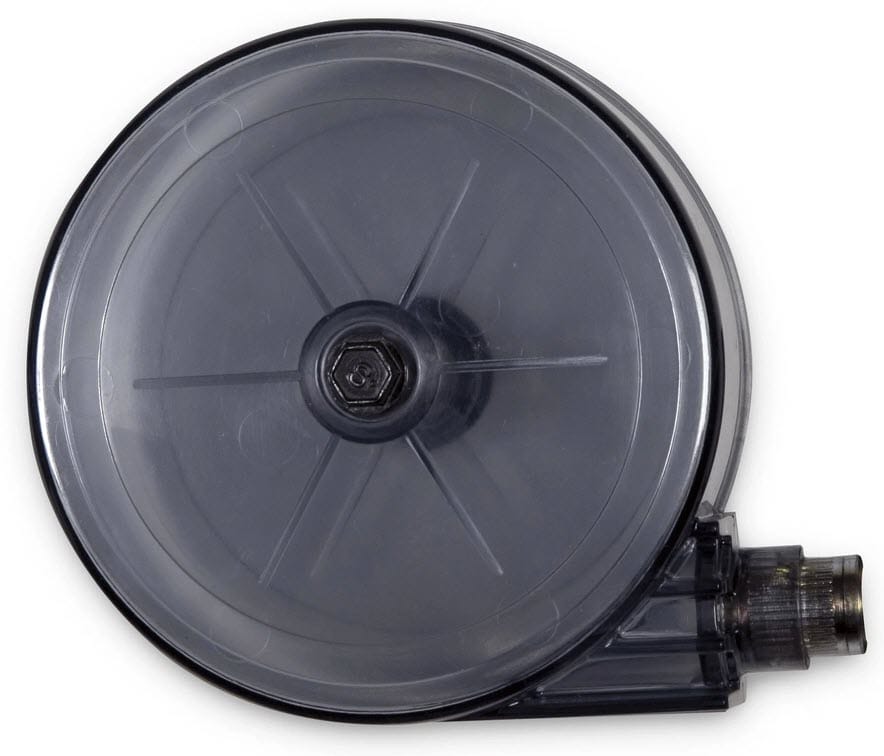

  • Miller Spoolmatic Spool Canister 132230

    Miller Spoolmatic Spool Canister 132230

    Regular price
    $191.70
    Lowest Internet Price
    Mfg Industrial Price: $216.00
    $191.70
    You Save $24.30

    Miller Spoolmatic Spool Canister 132230

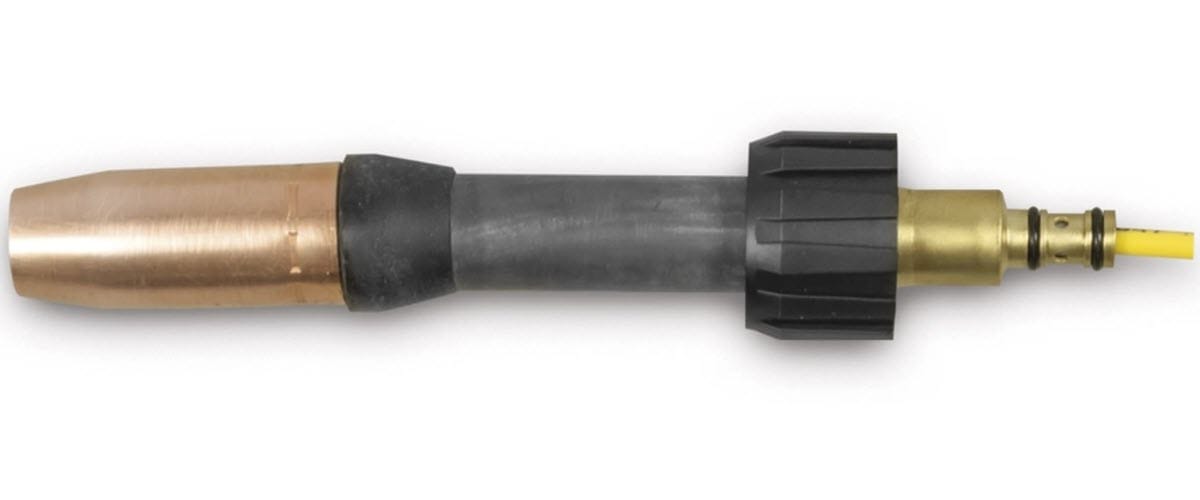

    Miller Tube Head 180 Degrees - 4 inch 255716

    Miller Tube Head 180 Degrees - 4 inch 255716

    Regular price
    $273.75
    Lowest Internet Price
    Mfg Industrial Price: $305.00
    $273.75
    You Save $31.25

    Genuine Miller air-cooled, 180 degree, 4 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

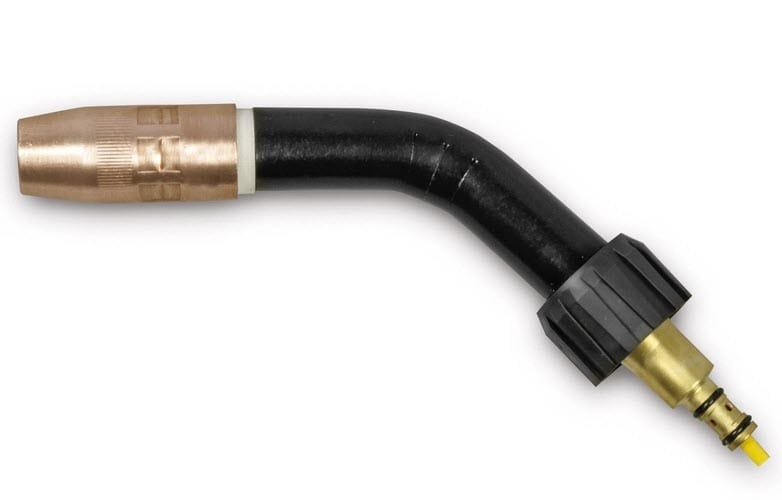

    Miller Tube Head 60 Degrees - 6 Inch 246301

    Miller Tube Head 60 Degrees - 6 Inch 246301

    Regular price
    $421.90
    Lowest Internet Price
    Mfg Industrial Price: $470.10
    $421.90
    You Save $48.20

    Genuine Miller air-cooled, 60 degree, 6 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

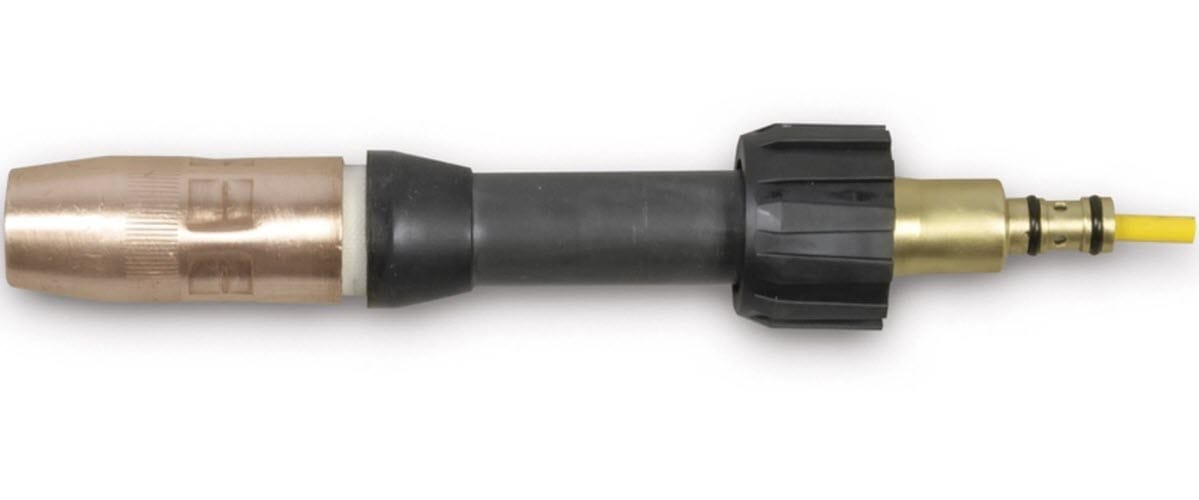

    Miller Tube Head 180 Degrees - 4 Inch with Centerfire 258474

    Miller Tube Head 180 Degrees - 4 Inch with Centerfire 258474

    Regular price
    $333.10
    Lowest Internet Price
    Mfg Industrial Price: $371.16
    $333.10
    You Save $38.06

    Genuine Miller air-cooled, 180 degree, 4 inch tube head with Centerfire for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

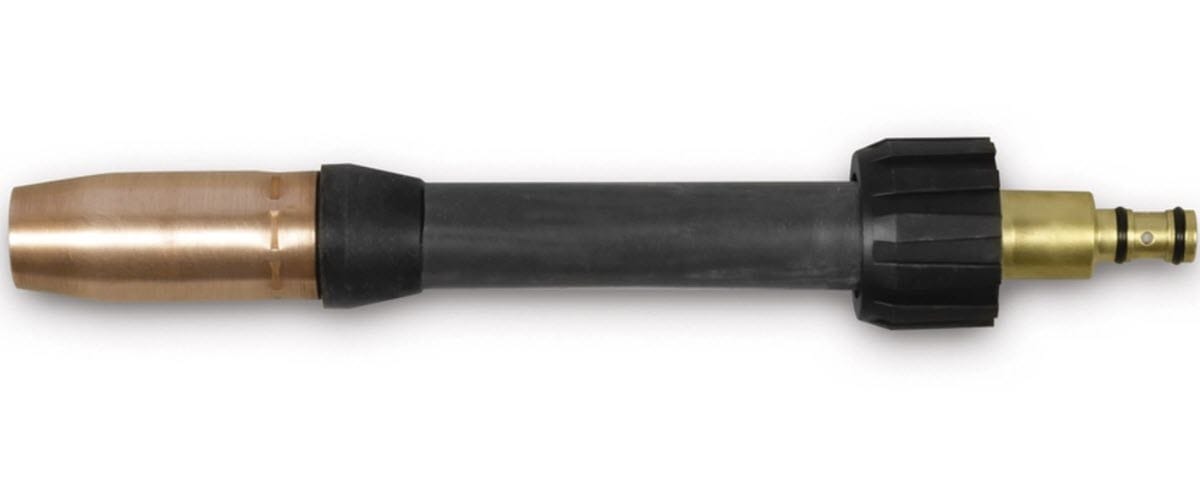

    Miller Tube Head 180 Degrees - 6 Inch 258476

    Miller Tube Head 180 Degrees - 6 Inch 258476

    Regular price
    $319.90
    Lowest Internet Price
    Mfg Industrial Price: $356.45
    $319.90
    You Save $36.55

    Genuine Miller air-cooled, 180 degree, 6 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

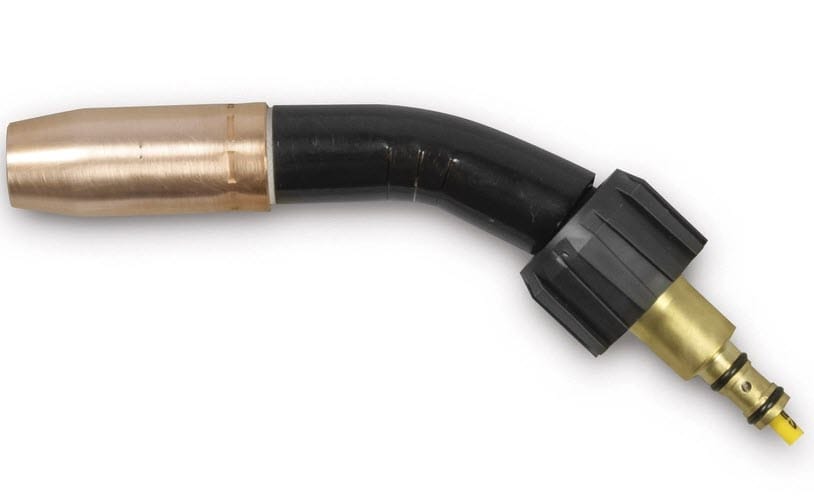

    Miller Tube Head 45 Degrees - 4 Inch 255037

    Miller Tube Head 45 Degrees - 4 Inch 255037

    Regular price
    $357.80
    Lowest Internet Price
    Mfg Industrial Price: $398.66
    $357.80
    You Save $40.86

    Genuine Miller air-cooled, 45 degree, 4 inch tube head for your Miller Spoolmatic Pro spoolguns and XR-Pro push-pull guns.

    Miller Flex Neck - 10 Inch 267517

    Miller Flex Neck - 10 Inch 267517

    Regular price
    $236.90
    Lowest Internet Price
    Mfg Industrial Price: $369.56
    $236.90
    You Save $132.66

    Genuine Miller air-cooled, flexible neck, 10 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

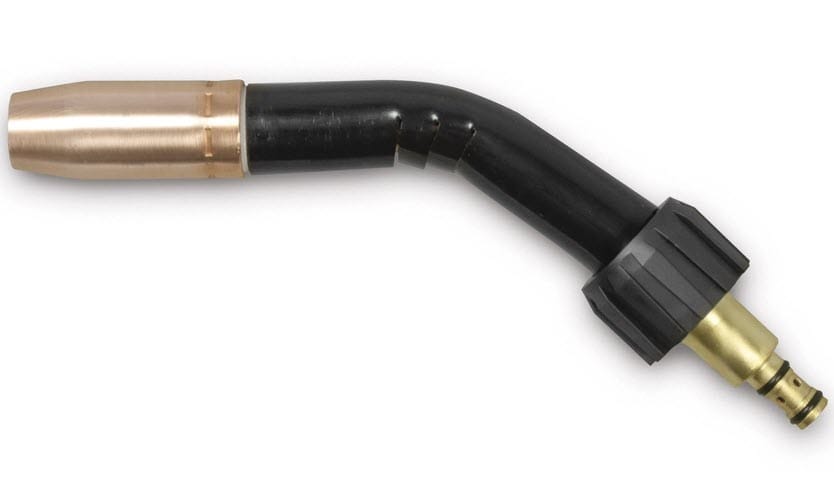

    Miller Tube Head 45 Degrees - 6 Inch 255040

    Miller Tube Head 45 Degrees - 6 Inch 255040

    Regular price
    $386.25
    Lowest Internet Price
    Mfg Industrial Price: $430.35
    $386.25
    You Save $44.10

    Genuine Miller air-cooled, 45 degree, 6 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

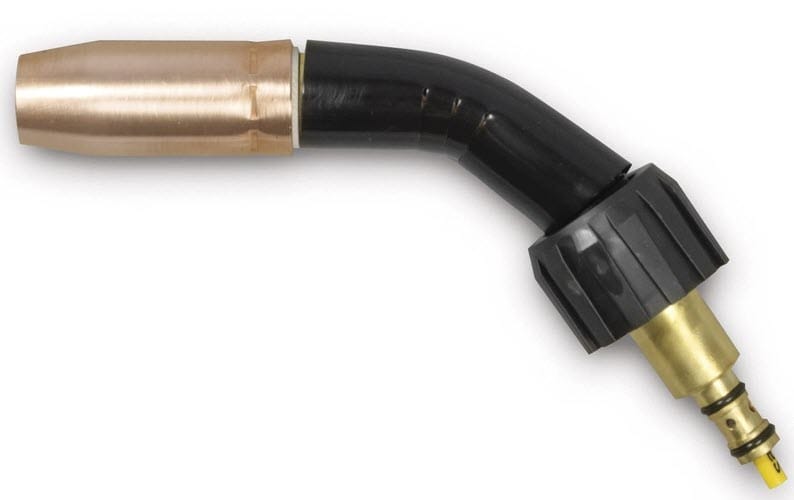

    Miller Tube Head 60 Degrees - 4 Inch 231519

    Miller Tube Head 60 Degrees - 4 Inch 231519

    Regular price
    $356.20
    Lowest Internet Price
    Mfg Industrial Price: $396.90
    $356.20
    You Save $40.70

    Genuine Miller air-cooled, 60 degree, 4 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

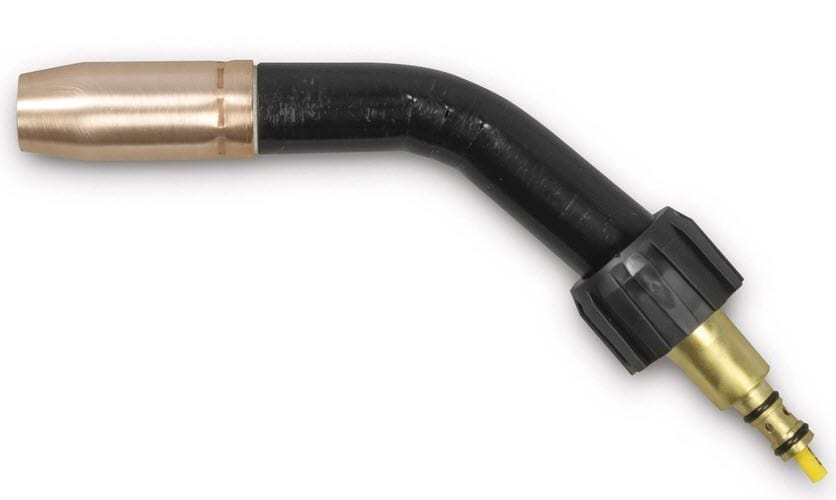

    Miller Tube Head 60 Degrees - 6 Inch 231518

    Miller Tube Head 60 Degrees - 6 Inch 231518

    Regular price
    $373.45
    Lowest Internet Price
    Mfg Industrial Price: $416.12
    $373.45
    You Save $42.67

    Genuine Miller air-cooled, 60 degree, 6 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

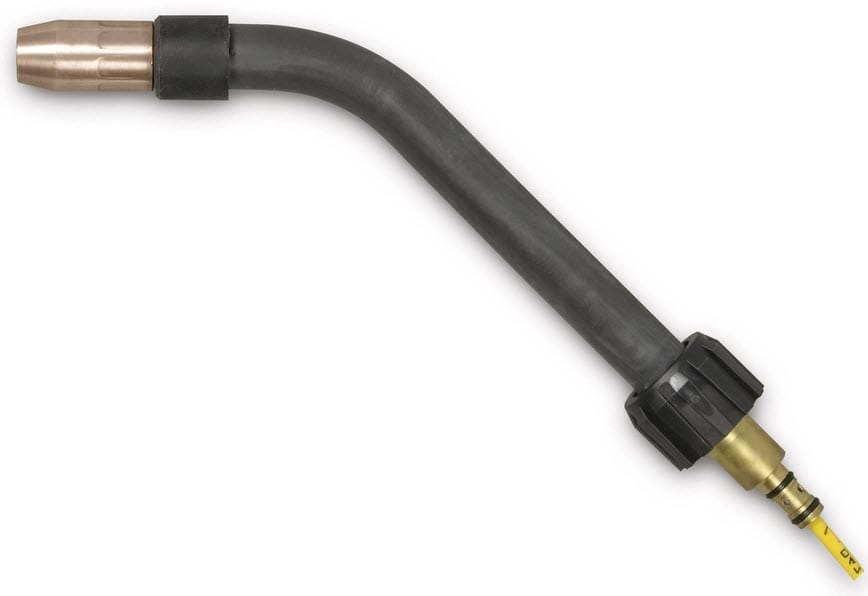

    Miller Tube Head 45 Degrees - 10 Inch 258295

    Miller Tube Head 45 Degrees - 10 Inch 258295

    Regular price
    $499.55
    Lowest Internet Price
    Mfg Industrial Price: $556.61
    $499.55
    You Save $57.06

    Genuine Miller air-cooled, 45 degree, 10 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

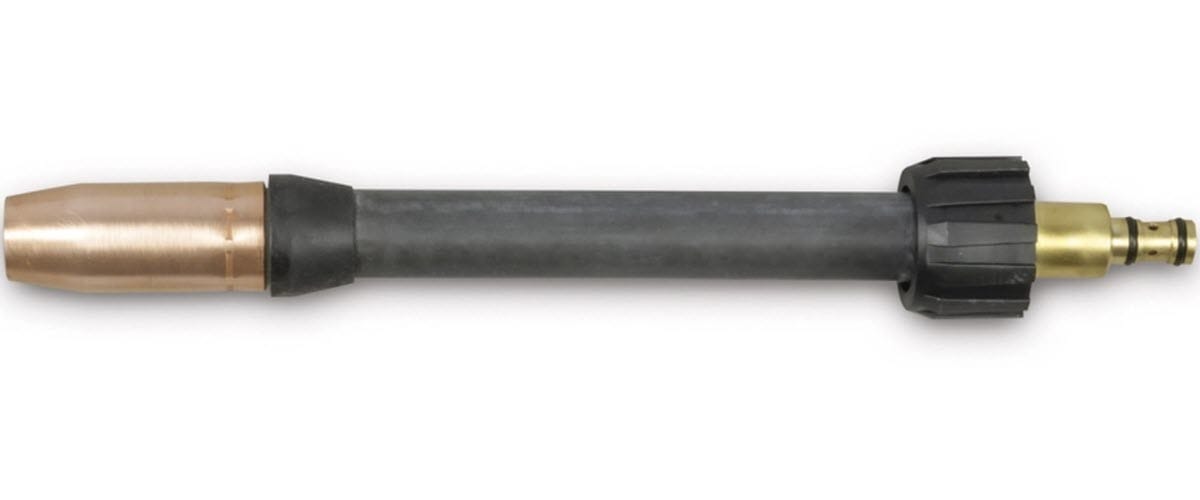

    Miller Tube Head 180 Degrees - 8 Inch 255042

    Miller Tube Head 180 Degrees - 8 Inch 255042

    Regular price
    $594.85
    Lowest Internet Price
    Mfg Industrial Price: $662.81
    $594.85
    You Save $67.96

    Genuine Miller air-cooled, 180 degree, 8 inch tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

    Miller Tube Head 45 Degrees - 6 Inch Heavy-Duty 262206

    Miller Tube Head 45 Degrees - 6 Inch Heavy-Duty 262206

    Regular price
    $724.65
    Lowest Internet Price
    Mfg Industrial Price: $807.44
    $724.65
    You Save $82.79

    Genuine Miller air-cooled, 45 degree, 6 inch heavy-duty tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

    Miller Tube Head 180 Degrees - 6 Inch Heavy-Duty 262208

    Miller Tube Head 180 Degrees - 6 Inch Heavy-Duty 262208

    Regular price
    $746.40
    Lowest Internet Price
    Mfg Industrial Price: $831.66
    $746.40
    You Save $85.26

    Genuine Miller air-cooled, 180 degree, 6 inch heavy-duty tube head for your Miller Spoolmatic® Pro spoolguns and XR™-Pistol-Pro or XR™-Aluma-Pro push-pull guns.

    Miller FasTip .035 Contact Tip 206186

    Miller FasTip .035 Contact Tip 206186

    5.0
    Rated 5.0 out of 5 stars
    1 Review
    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206186 FasTip™ .035 contact tips for feeding .035 diameter hard MIG wires and .030 diameter aluminum MIG wire.

    Miller FasTip .040 Contact Tip 206187

    Miller FasTip .040 Contact Tip 206187

    4.0
    Rated 4.0 out of 5 stars
    1 Review
    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206187 FasTip™ .040 contact tips for feeding .040 diameter hard MIG wires and .035 diameter aluminum MIG wire.

    Miller FasTip .045 Contact Tip 206188

    Miller FasTip .045 Contact Tip 206188

    5.0
    Rated 5.0 out of 5 stars
    1 Review
    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206188 FasTip™ .045 contact tips for feeding .045 diameter MIG welding wire.

    Miller FasTip .052 Contact Tip 206189

    Miller FasTip .052 Contact Tip 206189

    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206189 FasTip™ .052 contact tips for feeding .052 diameter hard MIG wires and 3/64 diameter aluminum MIG wire.

    Miller FasTip .068 Contact Tip 206191

    Miller FasTip .068 Contact Tip 206191

    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206191 FasTip™ .068 contact tips for feeding .068 diameter MIG welding wire.
