Miller Syncrowave 212 Water-Cooled TIG Welder Package 951000201

Miller® Syncrowave® 212 Water-Cooled TIG Welder Package 951000201

The Miller® Syncrowave® 212 (951000201) is a complete 210 amp AC/DC water-cooled TIG welder package that features advanced DC pulsed TIG welding and AC frequency control. The water-cooled package includes the Coolmate™ 1S water cooler, which is mounted underneath your welder. The Coolmate 1S plugs directly into the CPS (Cooler Power Supply) receptacle on the back of the Syncrowave 212, allowing you to use the Cooler-On-Demand™ feature. With Cooler-On-Demand, your Coolmate 1S turns on and off automatically when a TIG weldling arc is initiated or extinguished - saving energy, reducing noise and reducing wear-and-tear. The Syncrowave 212 water-cooled package also comes with Miller's Auto-Set™ and Pro-Set™ systems. Auto-Set takes the guesswork out of setting up welding parameters. Simply select material thickness, joint type and tungsten size, Auto-Set does the rest. For professional welders who prefer to set welding parameters manually, Pro-Set automatically indicates when the ideal weld settings have been entered for your specific welding application.

The Syncrowave 212's inverter technology produces Constant Current (CC) welding output for AC/DC TIG and stick welding, as well as Constant Voltage (CV) output for MIG welding (with an OPTIONAL Spoolmate™ 150 spool gun). Auto-Line™ power management allows the Syncrowave 212 to operate on either 120 Volt or 240 Volt single-phase input power. The Syncrowave 212 is capable of 210 amps of AC/DC TIG welding output, using 240 Volt input, and up to 160 amps of Stick welding output. Maximum MIG welding output is 175 amps. It comes complete with a W-250 water-cooled TIG torch with accessories, remote foot control, gas regulator with hose, 15 ft. lead with electrode holder, 15 ft. ground with work clamp, 6.5 ft. 120V and 240V input power cables and Miller's True Blue® 3-year warranty.



Processes

TIG (GTAW)

Stick (SMAW)

Pulsed TIG (GTAW-P)

Applications
Light Metal Fabrication
Maintenance/Repair Operations
Light Manufacturing
Automotive Repair
Vocational Training
Hobbyist

Features

Coolmate™ 1S Water Cooler Included
120/240-volt, 1-phase, 50/60 Hz. 1.0-gallon cooler designed to cool torches up to 250 amps. Includes 120-volt power cord and a jumper cord for use with Syncrowave® 212.

Auto-Set™
Automatically sets your welder to the proper parameters. Simply select the process, material type, material thickness, joint type and tungsten size. Miller recommended machine parameters, gas flow rate, cup size and filler rod diameter will also be provided. You are now ready to TIG weld.

Pro-Set™ (TIG/stick manual modes)
Eliminates guesswork when setting weld parameters. Simply push the Pro-Set soft key or adjust the parameter until the adjustment indicator line turns green.

AC balance (TIG) Control
Provides adjustable oxide removal which is essential for creating the highest quality aluminum welds.

AC frequency (TIG)
Controls the width of the arc cone and can improve directional control of the arc.
60Hz to 150Hz

Pulse (DC TIG)
Pulsing can increase puddle agitation, arc stability and travel speeds, while reducing heat input and distortion.
0-10 PPS with .1 PPS adjustment.
11-150 PPS with 1 PPS adjustment.

DIG (stick) Control
Allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes, like E6010.

Auto-Line™ Technology
Allows for any input voltage hookup (120–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

Easy-to-understand interface with 4.3-inch LCD display
Ensures proper machine setup and parameter selection. Informative on-screen explanations and dynamic images enhance the parameter selection process.

Hot Start™ adaptive control
Provides positive arc starts without sticking.

Dedicated 4-pin receptacle
For OPTIONAL Spoolmate™ 150 spool gun.

Multi-language capability
English/Spanish/French.

Dedicated cooler power receptacle
Provides power for your Coolmate™ 1S water cooler.

Cooler-On-Demand™ feature
Operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.





Comes complete with

Miller Syncrowave 212 TIG welder with 6.5-ft. (2 m) primary cord for 120 V and 6.5-ft (2m) primary cord for 240 V

Coolmate™ 1S water cooler

4 gallons low conductivity coolant (043810)

12.5-ft. (3.8 m), 250-amp W-250 water-cooled TIG torch (#WP-20-12-R)

Flow-through Dinse® connector for water-cooled torches (#195380)

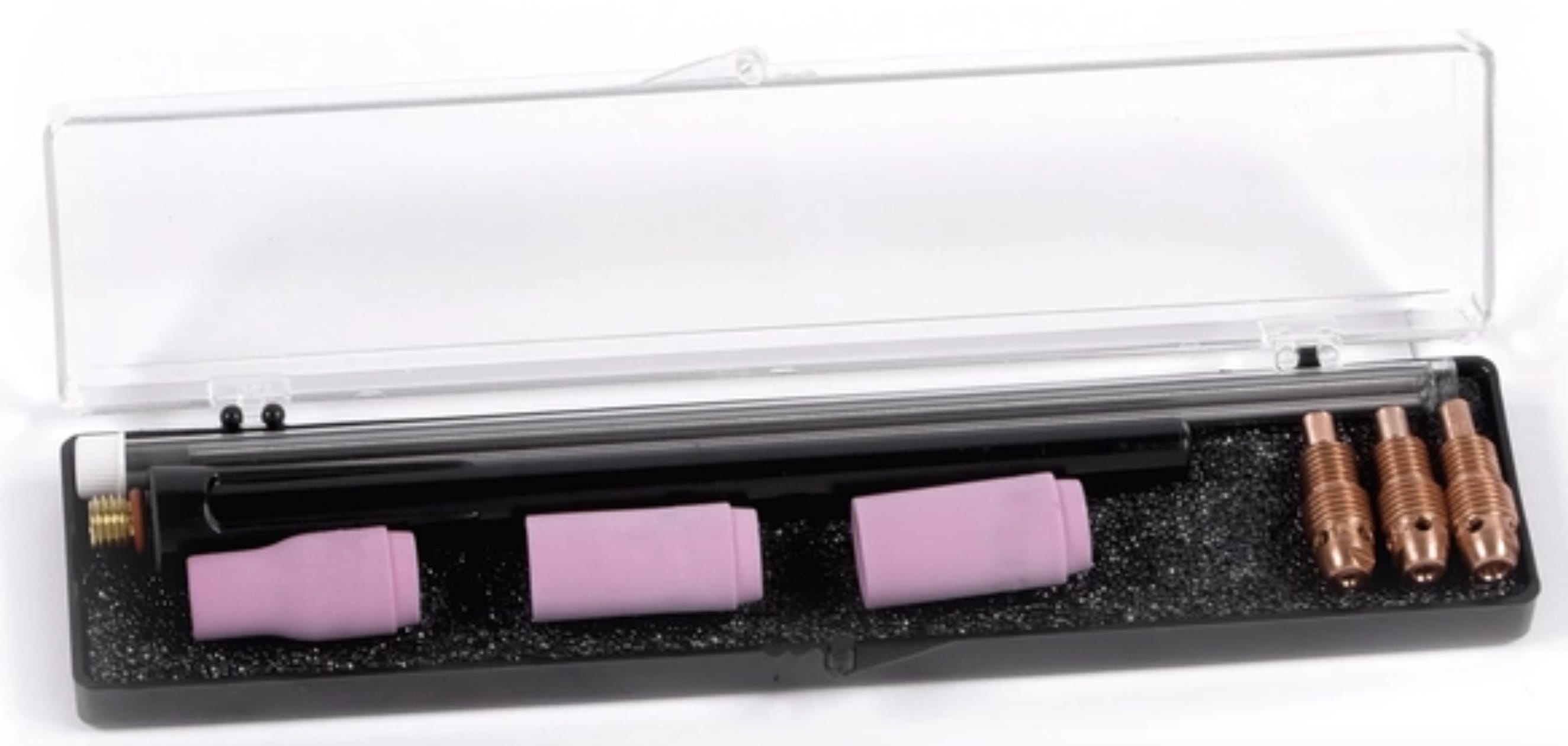

Gas Lens TIG accessory kit

15-ft. (4.5 m) work cable with clamp and Dinse connector

15-ft. (4.5 m) electrode holder with Dinse connector

Heavy Duty 14-pin wired foot control with 20-ft. cord (#301589)

Regulator/flow gauge and hose
